Technical Specifications
| Model | ZB230-ELS/MLS-850 | ZB230-ELS/MLS-1050 | ZB230-ELS/MLS-1250 |
|---|---|---|---|
| Colors | 8 Colors | ||
| Printing Width | 850 mm | 1050 mm | 1250 mm |
| Material Width | 880 mm | 1080 mm | 1280 mm |
| Printing Material | 10–60 μm Aluminum Foil | ||
| Max Printing Speed | 230 m/min | ||
| Max Mechanical Speed | 260 m/min | ||
| Register Accuracy | ±0.1 mm | ||
| Unwind/Rewind Diameter | 800 mm | ||
| Paper Core Diameter | 76 mm | ||
| Printing Cylinder Diameter | 100–380 mm | ||
| Power | 260kW / 230kW | 280kW / 250kW | 300kW / 270kW |
| Weight | 28000 kg | 30000 kg | 32000 kg |
| Dimensions | 20000×4500×3600 mm | 20000×4700×3600 mm | 20000×4900×3600 mm |

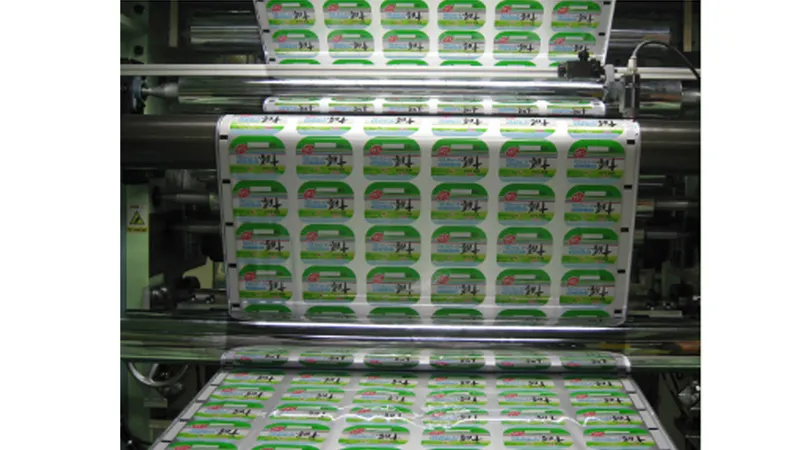

High-Speed Aluminum Foil Gravure Printing Machine with Electronic Shaft System
The ZB230 ELS aluminum foil gravure printing machine is designed for high-speed and high-precision multi-color printing of aluminum foil materials. With advanced electronic shaft (ELS) technology, the machine achieves superior register accuracy and stable operation at speeds up to 230 m/min.
Electronic Shaft (ELS) Drive Technology
Each printing unit is independently driven by a servo motor, eliminating mechanical shaft limitations and ensuring precise synchronization across all units.
High-Speed Production Capability
With a maximum printing speed of 230 m/min and mechanical speed up to 260 m/min, the machine is ideal for large-scale aluminum foil processing.
High Precision Register System
Siemens automatic register system ensures ±0.1mm accuracy, suitable for high-end packaging production.
Stable Printing & Ink Control
Chamber doctor blade and ink circulation system ensure consistent ink transfer and high-quality printing output.
Wide Industry Applications
Suitable for pharmaceutical aluminum foil packaging, food packaging foil, composite films, aviation aluminum containers, and high barrier packaging materials.

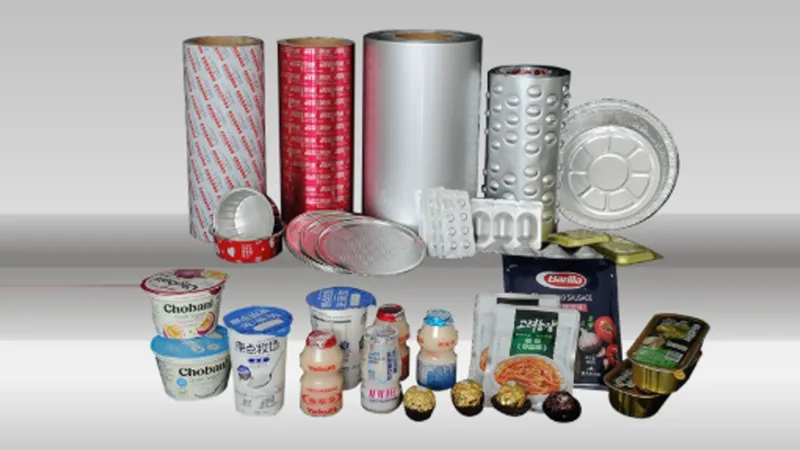

Applications in Aluminum Foil Packaging Industry
- Pharmaceutical Aluminum Foil Packaging
- Food Packaging Aluminum Foil
- Aluminum Foil Composite Films
- Aviation Aluminum Foil Lunch Boxes
- Pet Food Aluminum Containers
- High Barrier Packaging Materials
Frequently Asked Questions
What is the advantage of ELS system?
Electronic shaft eliminates mechanical linkage and improves register accuracy.
What is the maximum speed?
Up to 230 m/min.
What materials can be printed?
10–60μm aluminum foil for packaging applications.
Is it suitable for pharmaceutical packaging?
Yes, it meets high precision and hygiene requirements.
Can it be customized?
Yes, width and configuration can be customized.
