Technical Specifications
| Model | ZBFJ-1000 / 1300 / 1600 | |||
| Available Configurations | 1 Axis | 2 Axis | 3 Axis | 2 Axis Surface Rewinding |
| Machine Width | 1000 mm / 1300 mm / 1600 mm | |||
| Rewinding Width | 960 mm / 1280 mm / 1580 mm | |||
| Maximum Unwinding Diameter | 800 mm | 1000 mm | ||
| Maximum Rewinding Diameter | 80–400 mm | 130 mm | 25.4 × 110 mm / 38 × 110 mm / 76 × 160 mm | 76 × 200 mm |
| Maximum Rewinding Speed | 130 m/min | 130 m/min | 100–200 m/min | 200 m/min |
| Paper Core Diameter | 25.4 / 32 / 38 / 42 / 50 / 76.2 mm | |||
| Main Motor | 4–12 kW / 380V / 50Hz (Customized by Country) | |||
| Air Supply | 6 Bar | |||
| Machine Dimensions (1300 Model) | 4200 × 2600 × 1800 mm | |||
| Net Weight | 800 kg | 1200 kg | 2800 kg | 4000 kg |

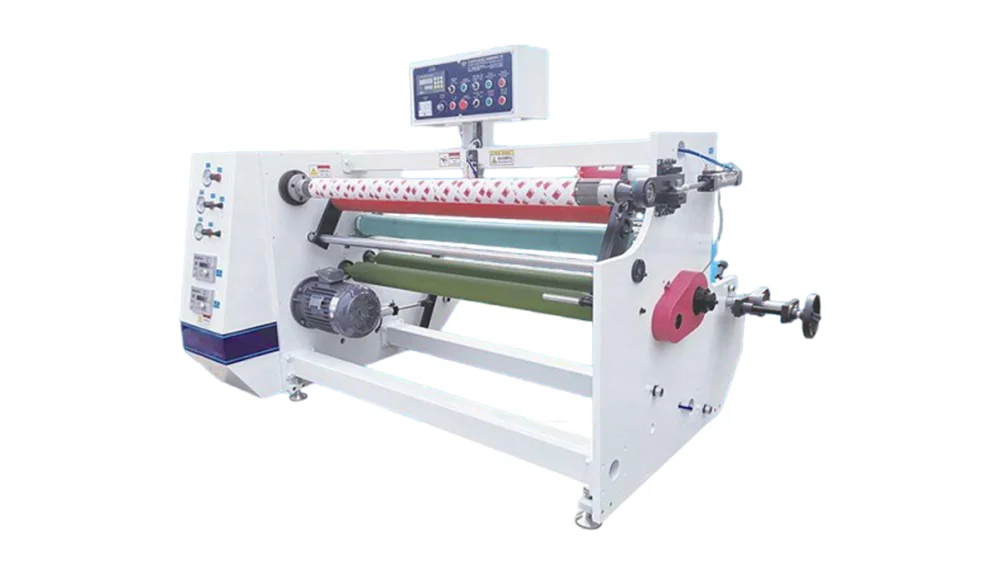

Automatic Tape Rewinding Machine for High-Efficiency Tape Converting
The Automatic Tape Rewinding Machine is designed for efficient rewinding and finishing of adhesive tapes after slitting or coating processes. Equipped with advanced servo control and automatic handling functions, it delivers consistent roll quality while significantly reducing manual labor and improving production efficiency.
The ZBFJ Series supports multiple rewinding configurations, including 1-axis, 2-axis, 3-axis, and 2-axis surface rewinding, allowing manufacturers to select the most suitable solution according to tape type, production volume, and finished roll specifications. This flexible design makes the machine suitable for both standard and specialty tape converting operations.
To ensure stable roll quality, the machine integrates dual-position servo rewinding, automatic tension control, EPC web guiding, automatic labeling, automatic cutting, automatic smoothing, automatic core loading and unloading, and hydraulic feeding. These automation features help reduce production errors while improving overall manufacturing consistency. :contentReference[oaicite:0]{index=0}
The machine is suitable for rewinding BOPP packaging tape, electrical tape, foam tape, duct tape, kraft paper tape, industrial adhesive tape, protective film, and various medical adhesive tapes. It provides reliable performance for tape manufacturers seeking higher automation, consistent roll quality, and greater production capacity. :contentReference[oaicite:1]{index=1}
Whether you are upgrading an existing tape production line or building a new converting facility, the ZBFJ Series offers a scalable automatic rewinding solution that combines productivity, precision, and long-term reliability.
Tape Material & Production Configuration Guide
Selecting the right tape rewinding configuration depends not only on the material being processed, but also on production capacity, finished roll specifications, and future business expansion. The following guide helps tape manufacturers, distributors, and purchasing managers quickly identify the most suitable automatic rewinding solution for different tape products.
| Tape Material | Production Volume | Recommended Configuration | Typical Customers | Main Benefits |
|---|---|---|---|---|
| BOPP Packaging Tape | High | 3-Axis Servo Rewinding | Packaging Tape Manufacturers, OEM Converters | High productivity, stable rewinding, and consistent finished roll quality. |
| PVC Electrical Tape | Medium to High | 2-Axis Servo Rewinding | Electrical Tape Manufacturers | Excellent tension control and accurate roll formation for electrical insulation tapes. |
| Foam Tape | Medium | 1-Axis or 2-Axis Servo Rewinding | Automotive and Electronics Tape Manufacturers | Stable rewinding for thicker adhesive materials while protecting foam structure. |
| Duct Tape | Medium to High | 2-Axis Servo Rewinding | Industrial Tape Manufacturers | Reliable handling of heavy-duty adhesive tapes with consistent roll quality. |
| Kraft Paper Tape | Medium | 2-Axis Servo Rewinding | Paper Packaging Manufacturers | Maintains neat roll edges and supports eco-friendly packaging production. |
| Protective Film | Medium to High | 2-Axis Surface Rewinding | Protective Film Converters and Electronics Suppliers | Protects film surfaces while ensuring smooth and wrinkle-free finished rolls. |
| Medical Adhesive Tape | Low to Medium | 1-Axis Precision Rewinding | Medical Product Manufacturers | High rewinding accuracy for demanding medical and healthcare applications. |
| Industrial Adhesive Tape | High | 3-Axis Servo Rewinding | Industrial Adhesive Tape Manufacturers | Suitable for continuous production with high efficiency and excellent roll consistency. |
| Masking Tape | Medium | 2-Axis Servo Rewinding | Painting Tape Manufacturers and DIY Product Suppliers | Stable tension control minimizes telescoping and improves finished roll appearance. |
| Double-Sided Tissue Tape | Medium | 1-Axis or 2-Axis Servo Rewinding | Adhesive Tape Converters and Office Product Manufacturers | Accurate rewinding protects adhesive layers and ensures consistent roll dimensions. |
Need Help Matching the Right Configuration?
If you're not sure which rewinding configuration best fits your production, simply send us your tape sample, material specifications, finished roll dimensions, or production target. Our engineering team will recommend the most suitable machine model, automation level, and rewinding configuration to help improve efficiency while reducing investment risks.
Machine Running Video
Automatic Tape Rewinding Machine Frequently Asked Questions
What is an automatic tape rewinding machine?
An automatic tape rewinding machine is designed to rewind slit tape rolls into finished rolls with consistent tension, accurate roll dimensions, and high production efficiency. Compared with manual rewinding, it significantly improves productivity, reduces labor costs, and delivers more consistent finished roll quality.
What types of tape can this machine rewind?
The ZBFJ Series is suitable for rewinding a wide range of adhesive products, including BOPP packaging tape, PVC electrical tape, foam tape, duct tape, kraft paper tape, industrial adhesive tape, protective film, masking tape, and various medical adhesive tapes. :contentReference[oaicite:0]{index=0}
Why is automatic tension control important during rewinding?
Stable tension control helps prevent wrinkles, telescoping, loose winding, and uneven roll edges. It also improves finished roll appearance and ensures consistent roll quality throughout the production process.
What are the advantages of servo-driven rewinding?
Servo-driven rewinding provides more accurate speed synchronization, stable roll tension, smoother acceleration and deceleration, and better rewinding consistency. It is particularly beneficial for high-speed production and specialty adhesive tape applications requiring precise roll quality.
How do I choose between 1-axis, 2-axis, 3-axis, and surface rewinding configurations?
The appropriate configuration depends on your tape material, production volume, finished roll specifications, and automation requirements. Small production lines often use 1-axis systems, while high-volume tape manufacturers typically choose 2-axis, 3-axis, or surface rewinding configurations to increase productivity and reduce manual intervention.
What is the benefit of automatic labeling and automatic cutting?
Automatic labeling, cutting, and smoothing reduce manual operations after rewinding, improve production efficiency, and ensure each finished tape roll is prepared consistently for packaging and shipment. These functions also help reduce operator workload and improve overall production consistency. :contentReference[oaicite:1]{index=1}
Can this machine be integrated into an existing tape production line?
Yes. The ZBFJ Series can be integrated into existing adhesive tape converting lines and matched with coating, slitting, log roll cutting, inspection, and packaging equipment to create a more automated tape manufacturing workflow.
I only know my finished tape size. Can ZONBON Machinery recommend the right model?
Absolutely. Many customers are distributors, purchasing managers, or project engineers rather than tape manufacturing specialists. Simply provide your finished tape roll dimensions, tape material, paper core size, and expected production capacity. Our engineering team will recommend the most suitable machine model, rewinding configuration, and automation level based on your production requirements.
