Technical Specifications
| Model | ZBHQ-A350 | ZBHQ-C1400 |
|---|---|---|
| Max Roll Width | 350 mm | 1400 mm |
| Max Roll Diameter | Φ600 mm | Φ800 mm |
| Max Roll Weight | 200 kg | 500 kg |
| Core Diameter | 3” (76 mm) | |
| Web Guide | Ultrasonic Sensor | |
| Cutting Length | 20–300 mm | 20–2000 mm |
| Cutting Accuracy | ±0.1 mm | ±0.2 mm |
| Cutting Speed | 30–600 cuts/min | 30–180 cuts/min |
| Material Thickness | 12–110 micron | 80–500 gsm |
| Total Power | 3 kW | 11 kW |
| Power Supply | 380V, 3 Phase, 50Hz | |
| Air Supply | 0.6–0.8 MPa | |
| Weight | 1000 kg | 2000 kg |
| Dimensions | 2400×1200×1200 mm | 5400×3400×2000 mm |
Custom Width Available: 800mm / 1100mm
Suitable Materials
- Film: 12–110μm PVC, OPP, PET films
- Paper: 80–500gsm kraft paper, coated paper, art paper
- Adhesive Labels: Self-adhesive materials
- Laminates: Film-to-film and film-to-paper
- Nonwoven Materials: Industrial and packaging applications
Machine Configurations
Shaftless Unwind
- Hydraulic Loading: Shaftless unwind with automatic cylinder lifting for jumbo rolls.
- Structure: Dual cylinder arms for stable roll handling.
- Tension Control: Magnetic powder brake ensures stable unwinding.
- Capacity: Suitable for heavy jumbo rolls with high efficiency loading.

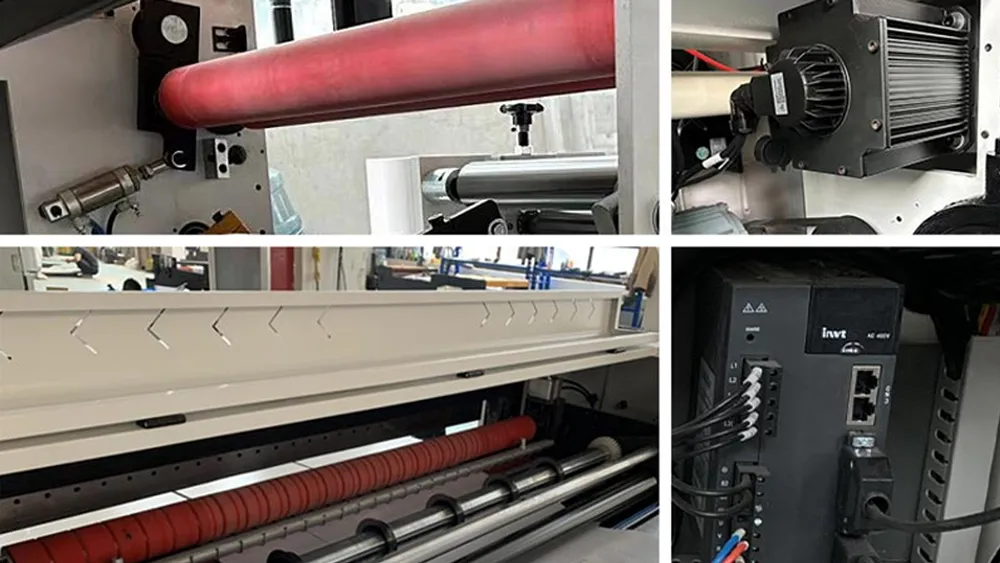

Traction System
- Drive: Front traction roller driven by servo motor for precise feeding.
- Material Compatibility: Suitable for paper (20–500gsm) and film (12–110μm).
- Tension Control: Pneumatic nip roller ensures stable feeding.
- Performance: Ensures smooth transport at high speed.

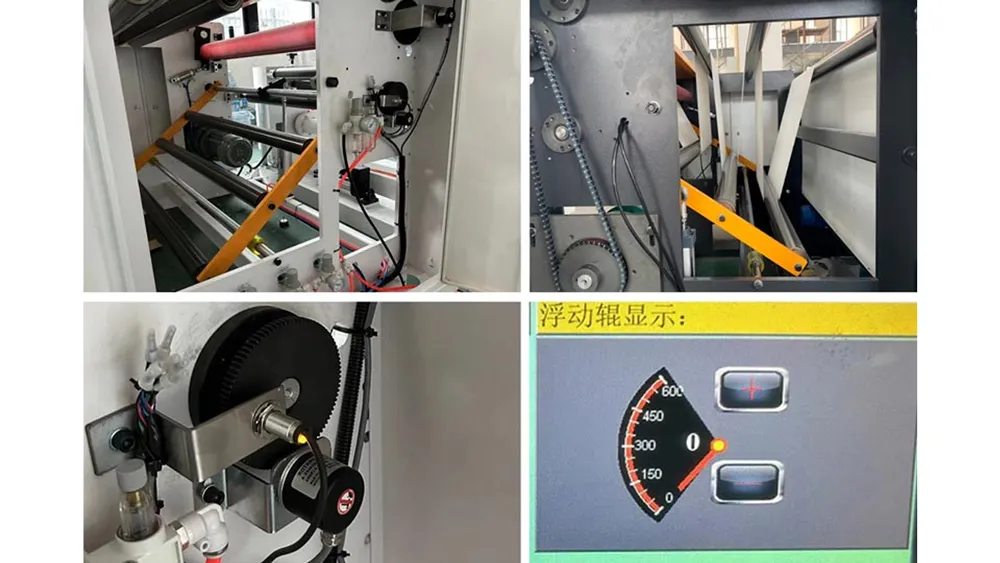

Dancer Roller
- Function: Pneumatic dancer system maintains constant web tension.
- Detection: Encoder monitors position in real-time.
- Control: Automatic speed adjustment based on tension.
- Display: Tension value shown on touch screen.

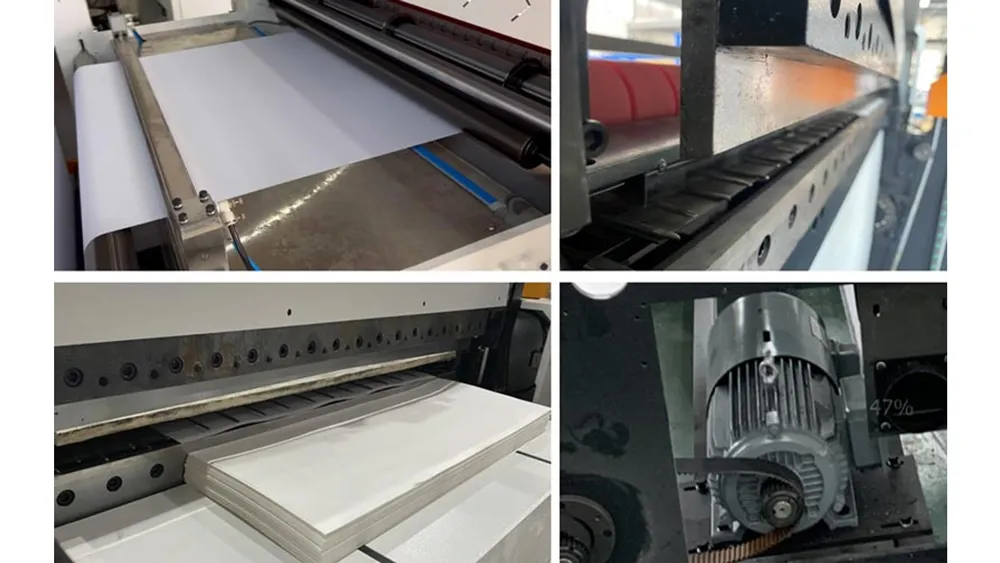

Cutting Unit
- Structure: Heavy-duty casting knife holder.
- Blade System: Fixed bottom knife and movable upper blade.
- Drive: Servo motor controls cutting length with high precision.
- Performance: High-speed steel blade ensures long service life.
- Additional: Anti-static system for double-side treatment.

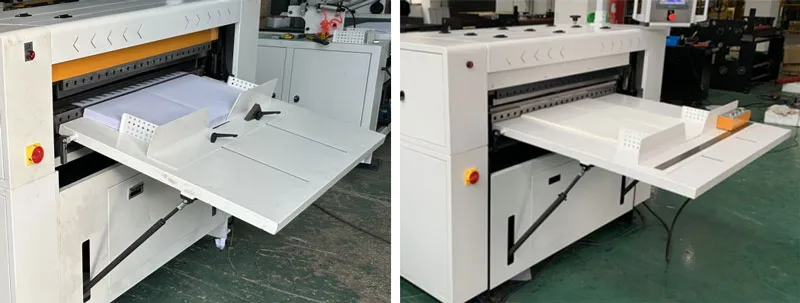

Table Stacker
- Function: Automatic stacking of cut sheets.
- Adjustability: Table height and angle adjustable.
- Customization: Table size can be customized.
- Output: Ensures neat and aligned sheet stacking.

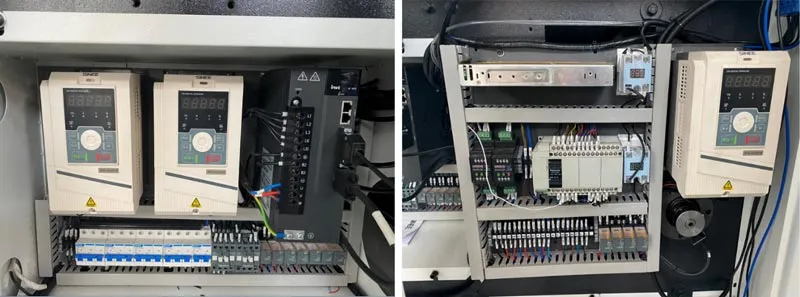

Electrical Unit
- Standard: All components comply with China 3C certification.
- Design: Compact and organized control cabinet.
- Reliability: Stable and long-lasting electrical system.

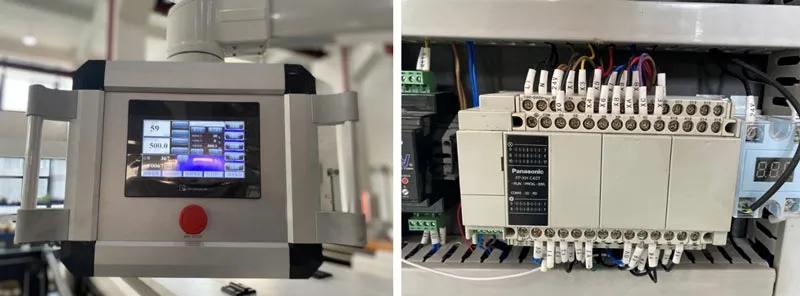

Touch Screen with PLC System
- Control System: Panasonic PLC with touch screen interface.
- Language: Chinese and English selectable.
- Functions: Cutting length, quantity, batch setting.
- Diagnostics: Real-time fault detection via I/O monitoring.
Optional Configurations
Color Code Sensor
- Brand: German LEUZE sensor.
- Function: Automatic mark tracking for precise cutting.
- Accuracy: Improves label cutting precision.

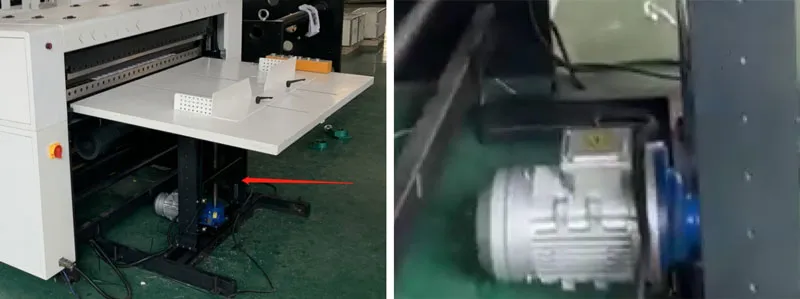

Auto-Lifting Table Stacker
- Function: Automatic height adjustment.
- Efficiency: Reduces manual intervention.

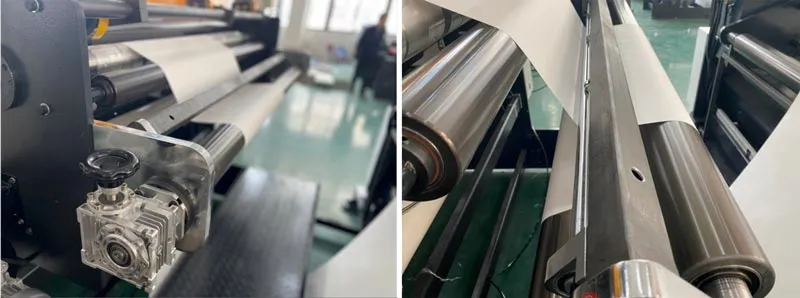

Anti-Curve Device
- Application: Suitable for thick materials.
- Adjustment: Manual angle adjustment.
- Effect: Prevents material bending during cutting.
High-Speed Beverage Label Cross Cutting Machine for Roll to Sheet Conversion
The ZBHQ-A series beverage label cross cutting machine is designed for high-speed and high-precision cutting of roll materials into sheets. It is widely used in beverage label production and flexible packaging industries.
High-Speed Guillotine Cutting
With cutting speed up to 600 cuts per minute, the machine significantly improves production efficiency for label processing.
Precision Cutting Control
Equipped with servo control system and advanced cutting mechanism, the machine achieves ±0.1mm cutting accuracy with smooth edges.
Automatic Stacking System
Integrated stacking system automatically collects and arranges cut sheets, reducing manual labor and improving efficiency.
Advanced Control System
Panasonic PLC with touch screen allows easy parameter setting, including cutting length, batch control, and automatic stop functions.
Wide Material Compatibility
Suitable for paper, film, adhesive labels, laminates, and nonwoven materials.
Applications in Label & Packaging Industry
- Beverage Label Sheet Cutting
- Packaging Paper Processing
- Film Sheet Cutting
- Adhesive Label Production
- Food Packaging Materials
Machine Running Video
Frequently Asked Questions
What is the maximum cutting speed?
Up to 600 cuts per minute.
What is the cutting accuracy?
±0.1mm high precision cutting.
What materials can be processed?
Film, paper, labels, laminates, and nonwoven materials.
Is automatic stacking included?
Yes, integrated stacking system is standard.
Can it be customized?
Yes, width and configuration can be customized.
