Technical Specifications

Model ZBZD450×2
Max Width 180–330 mm × 2
Max Length 330–1000 mm × 2
Single Face Thickness 0.01–0.035 mm
Speed 100–200 pcs/min × 2
Air Compressor 6 HP
Voltage 25 kW
Dimension 9500 × 2400 × 2200 mm
Weight 5000 kg
Product Description

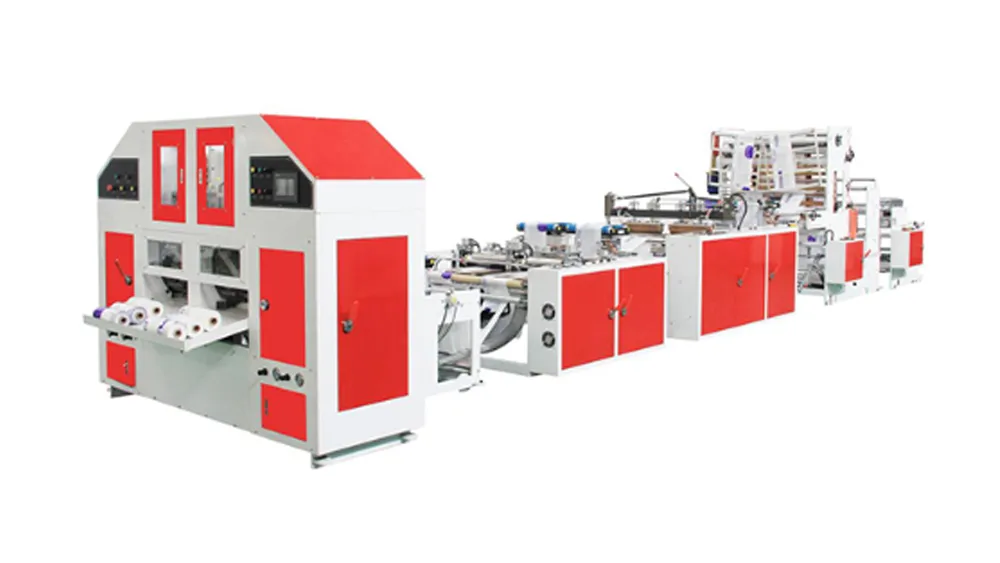

T Shirt Bag Making Machine for Vest Bags and Roll Bags

The T shirt bag making machine is designed for producing plastic vest bags, also known as T shirt bags, which are widely used in supermarkets, retail stores, and daily packaging applications.

This vest bag making machine adopts a dual-line structure with side gusset design, allowing two bag lines to run simultaneously. It improves production efficiency while maintaining stable sealing quality and consistent bag size.

The machine supports HDPE and recycled plastic film, and is suitable for both printed and non-printed bag production. It can produce T shirt bags on roll with paper or PVC cores, meeting the common packaging requirements in retail markets.

One key advantage of this machine is its flexible design. The D-shaped stamping plate can be removed, allowing the machine to switch from T shirt bag production to bottom sealed bag production. This helps manufacturers expand product types without additional equipment investment.

For buyers searching for a plastic vest bag making machine or T shirt bag on roll machine, this model provides a reliable solution with automatic film cutting, core change system, and stable servo control.

Applications

Applications of T Shirt Bag Making Machine

This machine is widely used for producing plastic carry bags for retail and commercial packaging applications.

  • T shirt bags for supermarkets
  • Vest bags with side gusset
  • Plastic shopping bags
  • Roll type carrier bags
  • Printed retail bags
  • Bottom sealed plastic bags
FAQ

T Shirt Bag Making Machine Questions

What is a T shirt bag making machine?

It is a machine used to produce plastic vest bags commonly used in supermarkets and retail stores.

Can this machine produce bags on roll?

Yes, it can produce T shirt bags on roll with paper or PVC cores.

What materials are suitable for this machine?

The machine supports HDPE and recycled plastic film for both printed and plain bags.

Can the machine produce different types of bags?

Yes, by removing the stamping unit, it can also produce bottom sealed plastic bags.

What is the advantage of dual-line production?

Dual-line production increases output efficiency by running two bag lines at the same time.
