Technical Specifications
| Model | ZBZD450X2 |
| Production Lines | 2 Lines |
| Number of Film Rolls | 8 Rolls |
| Maximum Film Width | 400 mm |
| Reel Bag Width | 300 mm |
| Bag Length | 200–1500 mm |
| Film Thickness | 7–35 μm per layer |
| Production Speed | 80–100 m/min |
| Maximum Reel Diameter | 120 mm |
| Air Compressor | 6 HP |
| Total Power | 15 kW |
| Machine Size | 6000 × 2400 × 1900 mm |
| Weight | 3500 kg |
Automatic Garbage Bag Making Machine for Bag on Roll and Coreless Bags
The garbage bag making machine is designed for producing bag-on-roll garbage bags, coreless bags, and star seal trash bags widely used in households, supermarkets, and industrial packaging applications.

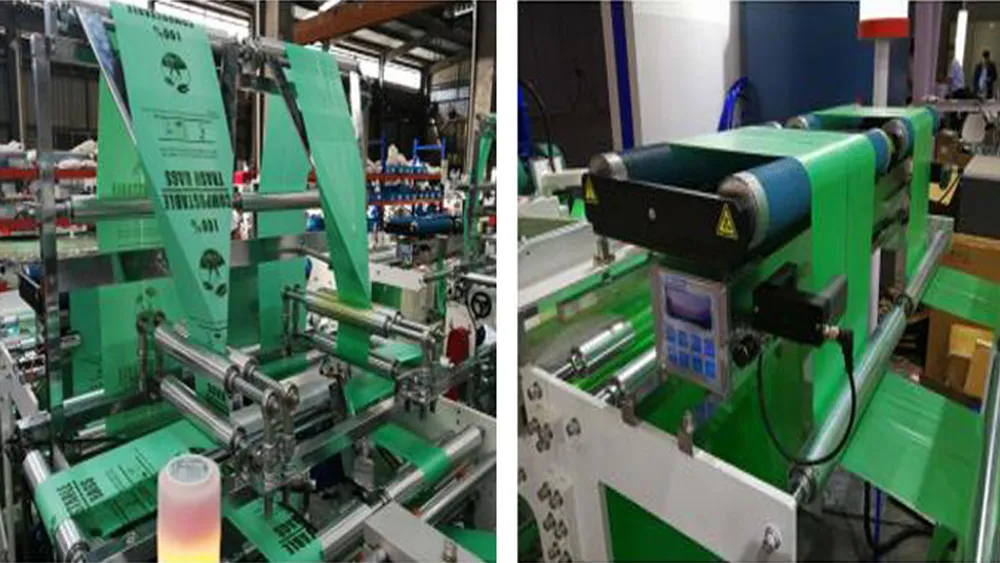

This bag on roll making machine adopts a dual-line design, allowing two production lines to run simultaneously and significantly improving production efficiency. Each line is equipped with a V-folding unit, enabling the production of compact roll bags with stable structure and uniform appearance.
The machine integrates film unwinding, V-folding, bottom sealing, perforation, and rewinding into one continuous process. After sealing, the bag bottom forms a star seal structure, which improves bag strength and load capacity compared with flat sealing bags.
For manufacturers searching for a coreless garbage bag making machine or star seal bag machine, this equipment provides a reliable solution with stable tension control and EPC system for neat and tight roll winding.
The ZBZD450X2 model supports automatic roll changing and high-speed production up to 100 m/min, making it suitable for large-scale garbage bag production. It is widely used by plastic bag manufacturers supplying supermarkets, retail packaging, and waste management industries.

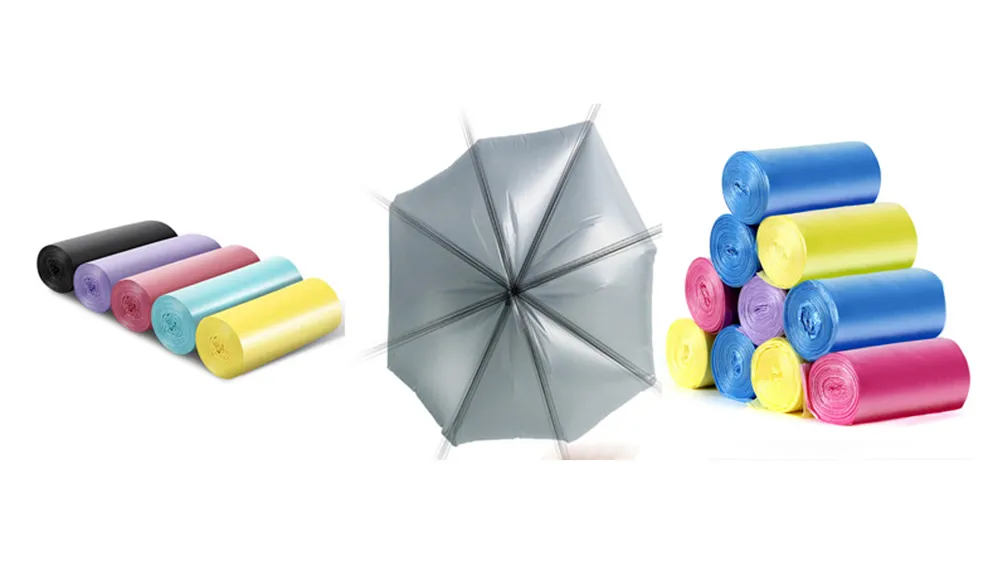

Applications of Garbage Bag Making Machine
This machine is widely used for producing garbage bags and plastic roll bags for household, commercial, and industrial applications.
- Household garbage bags
- Coreless roll garbage bags
- Supermarket trash bags
- Industrial waste bags
- Plastic bag on roll products
- Star seal bottom garbage bags
Machine Running Video
Garbage Bag Making Machine Questions
What is a bag on roll garbage bag machine?
It is a machine used to produce garbage bags connected in rolls, allowing easy tearing and convenient packaging.
What is a coreless garbage bag?
A coreless garbage bag roll does not use a paper core, reducing cost and making it more environmentally friendly.
What is a star seal garbage bag?
A star seal bag has a folded bottom structure that improves strength and leak resistance compared to flat seal bags.
How many production lines does this machine have?
This model has two production lines, allowing higher output compared to single-line machines.
What materials can be used?
The machine supports HDPE and LDPE films with thickness from 7 to 35 microns per layer.
