Technical Specifications
| Model | ZBZD600 | ZBZD800 |
| Sealing Method | Bottom Sealing | Edge Sealing |
| Maximum Film Width | 250–500 mm | 250–600 mm |
| Bag Length | 350–600 mm | 250–700 mm |
| Film Thickness | 50–200 μm | 50–100 μm |
| Fold Height | Maximum 75 mm | |
| Bottom Fold Height | Maximum 75 mm | |
| Soft Loop Bag Speed | 45–60 pcs/min | 100 pcs/min |
| D-cut Bag Speed | 50–80 pcs/min | 120 pcs/min |
| Handle Length | 350 mm | 360 mm |
| Handle Width | 30 mm | |
| Unwind Width | 600 mm | 1600 mm |
| Total Power | 10 kW | 16 kW |
| Air Compressor | 5 HP | |
| Machine Size | 4500 × 3600 × 1700 mm | 15000 × 2000 × 2100 mm |
| Weight | 2700 kg | 4800 kg |

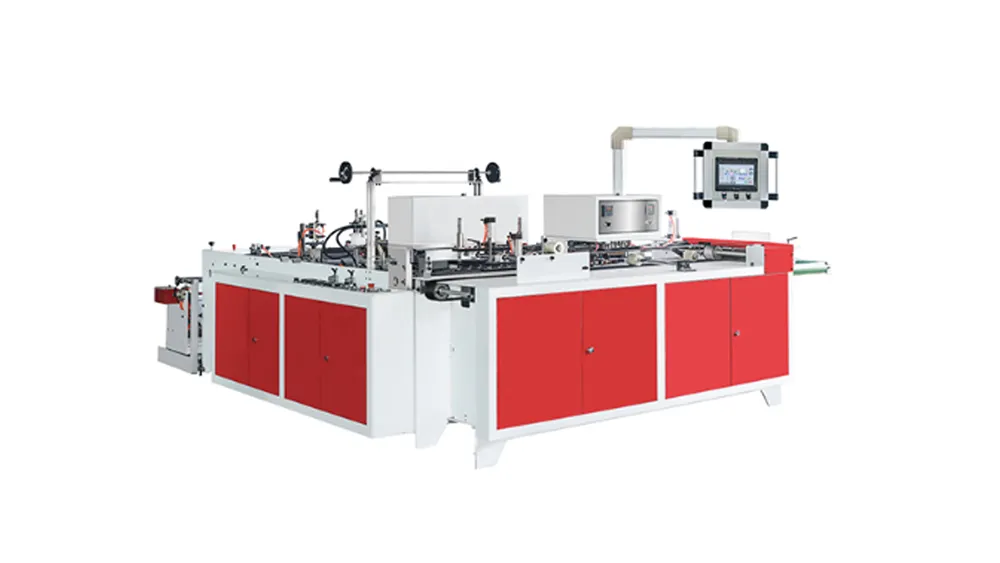

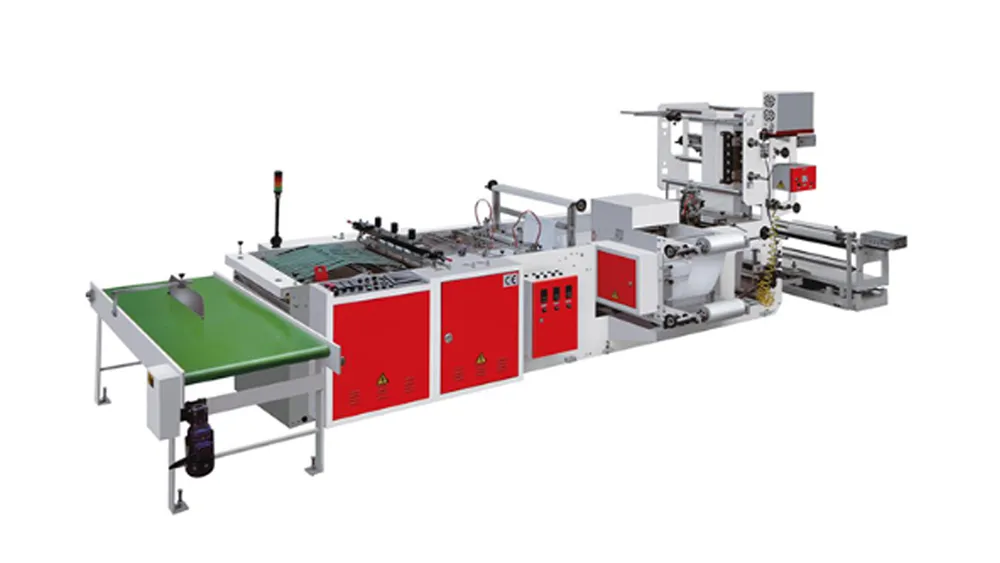

Automatic Soft Loop Handle Bag Making Machine for Shopping Bags
The soft loop handle bag making machine is designed for producing plastic shopping bags with soft loop handles and D cut handles. It is widely used in retail, supermarkets, fashion stores, and packaging industries.

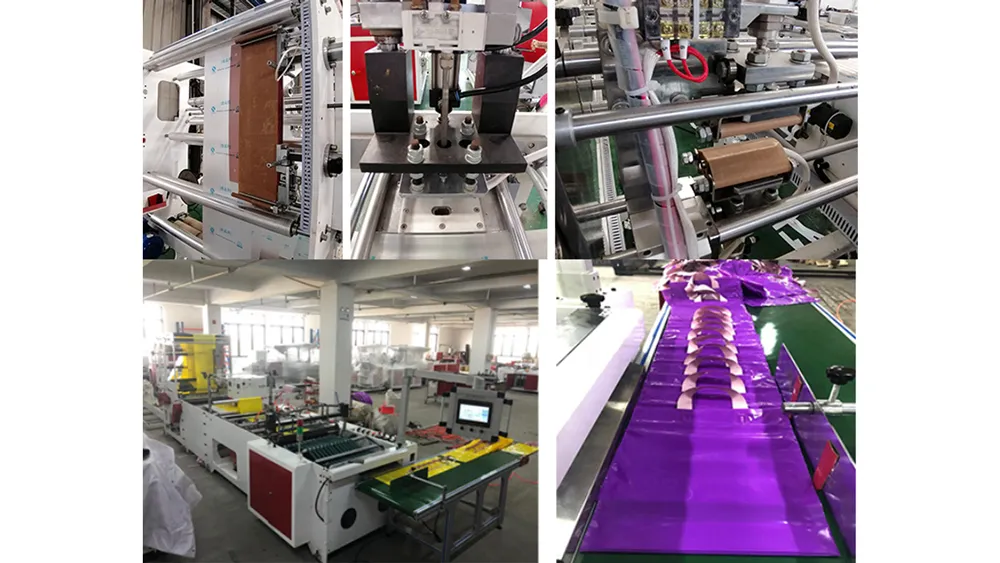

This soft handle bag machine integrates film feeding, bottom sealing, handle sealing, and D-punching into a fully automatic production process. It ensures consistent bag quality and efficient production for both printed and non-printed materials.
The machine supports multiple bag types, including soft loop handle bags and D cut handle bags, making it a flexible solution for manufacturers targeting different packaging markets.
For buyers searching for a D cut bag making machine or plastic shopping bag machine, this equipment provides a reliable solution with stable sealing performance and high production efficiency.
The ZBZD600 and ZBZD800 models offer different configurations for bag size and production speed, allowing manufacturers to choose the right solution based on their production requirements.
Applications of Soft Loop Handle Bag Machine
This machine is widely used for producing plastic shopping bags and handle bags for retail and commercial packaging.
- Supermarket shopping bags
- Retail packaging bags
- Clothing store bags
- D cut handle bags
- Soft loop handle bags
- Promotional packaging bags
Machine Running Video
Soft Loop Handle Bag Machine Questions
What is a soft loop handle bag?
A soft loop handle bag is a plastic shopping bag with flexible handles attached for easy carrying and improved strength.
What is a D cut bag?
A D cut bag has a die-cut handle opening, commonly used in retail and promotional packaging.
Can this machine produce different bag types?
Yes, it can produce both soft loop handle bags and D cut handle bags.
What materials are supported?
The machine supports PE films, including printed and non-printed materials.
What industries use these bags?
These bags are widely used in supermarkets, retail stores, fashion brands, and packaging businesses.
