Technical Specifications
| Item | Specification |
|---|---|
| Model | ZBZD-700 / 800F Double Lane |
| Material | CPP, PET, OPP, Paper, Laminated Films |
| Main Film Width | Max 1200 mm (Dia. φ800 mm) |
| Gusset Film Width | Max 410 mm (Dia. φ600 mm) |
| Bag Types | Box pouch, flat bottom pouch, zipper bag, quad seal |
| Bag Speed | 110 shots/min |
| Line Speed | 30 m/min |
| Single Bag Size | Length: 200–640 mm / Width: 100–380 mm |
| Double Bag Size | Length: 120–280 mm / Width: 70–300 mm |
| Gusset Depth | 25–100 mm |
| Bottom Depth | 25–100 mm |
| Total Power | 80 kW |
| Voltage | AC 380V 50Hz |
| Air Pressure | 0.6 MPa |
| Cooling Water | 10 L/min |
| Dimensions | 22500 × 3000 × 2300 mm |
High-Speed Double Lane Box Pouch Bag Making Machine for Premium Packaging
The ZBZD-700/800F double lane bag making machine is a high-end solution designed for producing box pouches, flat bottom pouches, zipper bags, and four-side seal bags. It is widely used in premium packaging industries such as coffee, food, and retail packaging.
Double Lane High Efficiency Production
The machine adopts a double lane production structure, allowing two bags to be produced simultaneously. This significantly increases production capacity and reduces manufacturing cost per unit.
Multi-Type High-End Bag Production
Supports various advanced bag types including box pouch with zipper, flat bottom pouch, quad seal pouch, and three-side seal bags. It is especially suitable for high-value packaging such as coffee bags and retail packaging.
Advanced PLC & Servo Control System
The whole machine is controlled by a centralized PLC system with human-machine interface. Multiple servo motors ensure precise feeding, positioning, and cutting, delivering high accuracy and stable performance.
Intelligent Material Handling System
Equipped with automatic tension control, LPC edge alignment, and inverter-driven feeding system, the machine ensures smooth material handling and consistent bag quality.
Precision Sealing & Automation
PID temperature control system allows non-contact automatic temperature adjustment from 0–300°C. The machine integrates automatic punching, trimming, rewinding, and static elimination for efficient production.
Flexible Production Functions
Supports photocell tracking or fixed-length control, adjustable punching rhythm, batch counting, skip feeding (1–6 times), and batch conveying functions, making it highly adaptable to different production needs.
Main Accessories
- Main machine
- Automatic feeding system
- Flattening device
- Hydraulic motor system
- PLC control system with touch screen
- Tools & English manual

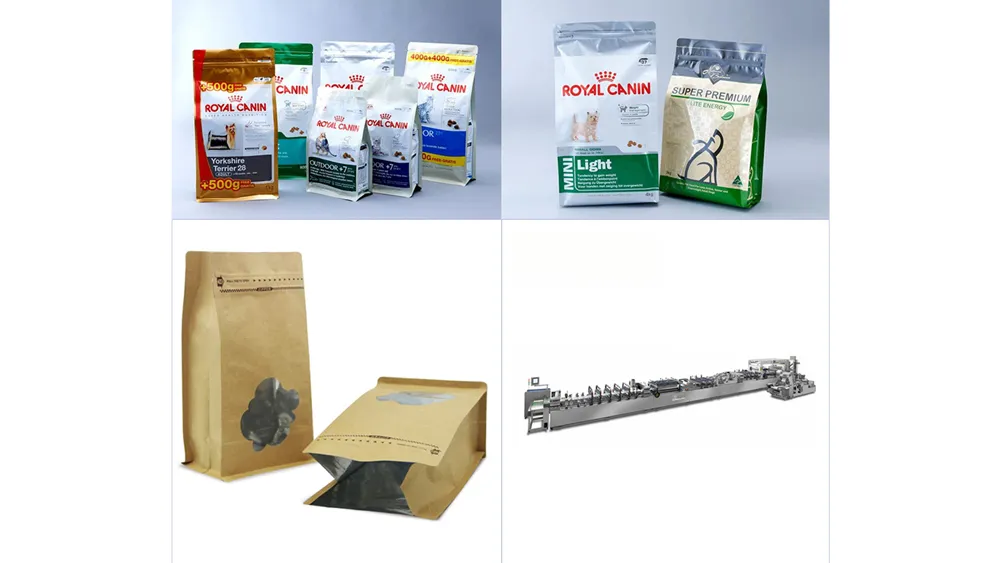

Applications in Coffee, Retail & Premium Packaging Industry
The ZBZD-700/800F is widely used for high-end packaging requiring strong structure and visual appeal.
- Coffee Packaging – flat bottom pouch with valve
- Snack Packaging – zipper and stand-up pouches
- Pet Food Packaging – large size box pouches
- Retail Packaging – premium shelf display bags
- Food & Beverage Packaging – high barrier packaging
Machine Running Video
Frequently Asked Questions
What is the advantage of double lane production?
It allows two bags to be produced simultaneously, doubling production efficiency and reducing cost per unit.
What types of bags can be produced?
Box pouch, flat bottom pouch, zipper bag, quad seal pouch, and three-side seal bags.
Is this machine suitable for coffee packaging?
Yes, it is widely used for coffee bags with zipper and valve functions.
What is the production speed?
Up to 110 shots/min depending on bag size and material.
Can it be customized?
Yes, additional functions such as valve, zipper, and die cutting can be customized.
