Technical Specifications
| Model | ZBZD1000 |
| Maximum Film Width | 1000 mm |
| Bag Length | 900 mm |
| Film Thickness | 10–50 μm per layer |
| Production Speed | 80–150 m/min |
| Reel Change Speed | 10 pcs |
| Conveyor Belt Width | 100 mm |
| Reel Width | 300 mm |
| Reel Diameter | 150 mm |
| Total Power | 25 kW |
| Air Compressor | 5 HP |
| Machine Size | 15000 × 2000 × 2100 mm |
| Weight | 4200 kg |
Automatic Drawstring Garbage Bag Making Machine for Roll Bags
The drawstring garbage bag making machine is designed for producing draw tape and drawstring trash bags widely used in household, retail, and commercial waste packaging applications.
This draw tape bag making machine adopts a high-speed servo motor control system, ensuring precise operation and stable production. It supports both printed and non-printed film processing, making it suitable for customized garbage bag production.

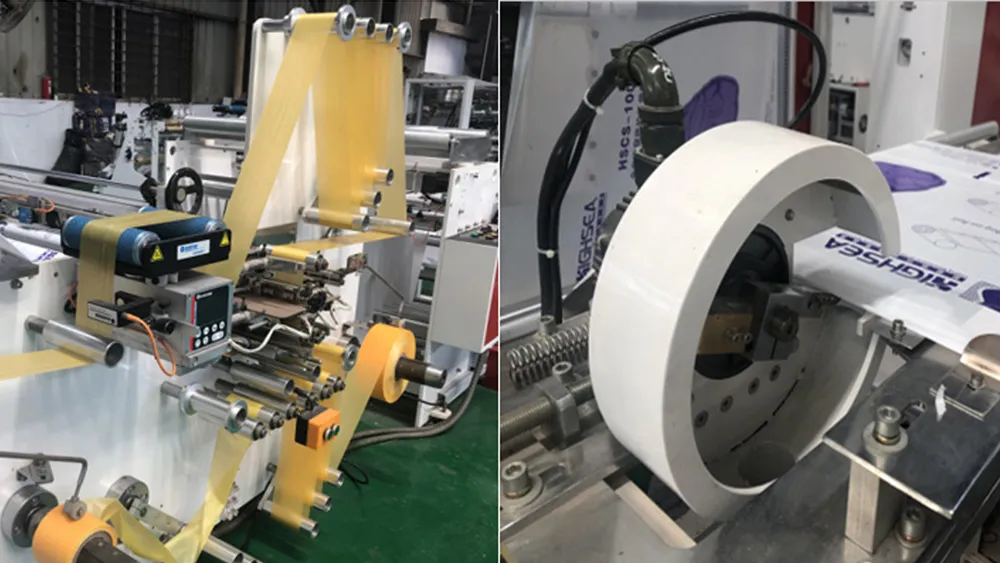

The machine integrates film unwinding, polyethylene stretch insert, heat air sealing of draw tape, side sealing, perforation, folding, and automatic rewinding into a continuous production process. This ensures high efficiency and consistent bag quality.
For manufacturers searching for a drawstring trash bag machine or plastic draw tape bag production line, this equipment provides a reliable solution for producing high-value garbage bags with strong sealing and convenient user functionality.
The ZBZD1000 model is equipped with a multi-servo control system and user-friendly touchscreen interface, making it easy to operate while maintaining high-speed production up to 150 m/min. It is ideal for factories targeting premium garbage bag markets and branded packaging products.
Applications of Drawstring Garbage Bag Machine
This machine is widely used for producing high-value garbage bags with drawstring or draw tape for various markets.
- Household drawstring garbage bags
- Supermarket trash bags with draw tape
- Commercial waste collection bags
- Industrial garbage bags
- Roll type drawstring bags
- Branded packaging garbage bags
Machine Running Video
Drawstring Garbage Bag Machine Questions

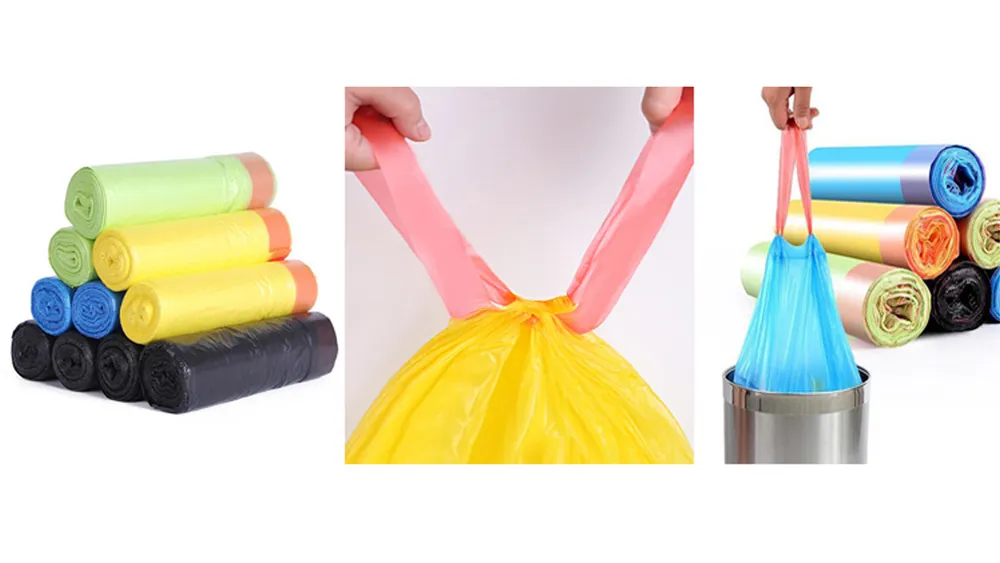

What is a drawstring garbage bag?
A drawstring garbage bag has a built-in draw tape that allows users to easily close and carry the bag.
What is the advantage of draw tape bags?
Draw tape bags provide better sealing, easy handling, and higher product value compared to regular garbage bags.
What materials can this machine use?
The machine supports LDPE, HDPE, and recycled plastic films.
Is this machine suitable for high-speed production?
Yes, it can reach up to 150 meters per minute with stable servo control.
Can I produce printed garbage bags?
Yes, the machine supports both printed and non-printed film production.
