Technical Specifications
| Model | ZBGF-F1050 | ZBGF-F1250 |
|---|---|---|
| Printing Material’s Way | Right to Left | |
| Mechanical Speed | 300 m/min | |
| Max Laminating Speed |
260 m/min (Actual production speed depends on substrate and adhesive performance) |
|
| Max Coating Width | 1050 mm | 1250 mm |
| Max Roll Width | 1050 mm | 1250 mm |
| Unwind Diameter | 800 mm | |
| Rewind Diameter | 800 mm | |
| Min Roll Width | 300 mm | |
| Unwind Core | 3" (76 mm) / 6" (152 mm) | |
| Rewind Core | 3" (76 mm) / 6" (152 mm) | |
| Unwind Tension | 3 – 40 kg (400 N) | |
| Rewind Tension | 4 – 55 kg (550 N) | |
| Tension Setting | 100% – 60% | |
| Max Roll Weight | 500 kg | |
| Coating Range | 0.8 – 3 g/m² | |
| Laminating Materials | Paper, Aluminum Foil, PE, PP, PET, BOPP, PVC | |
| Dimensions | 15500 × 4600 × 4500 mm | 15500 × 4800 × 4500 mm |
| Power | 50 kW | 55 kW |
| Voltage | AC 380V 50Hz | |
| Weight | 15000 kg | 15500 kg |
| Machine Color | Ivory White | |

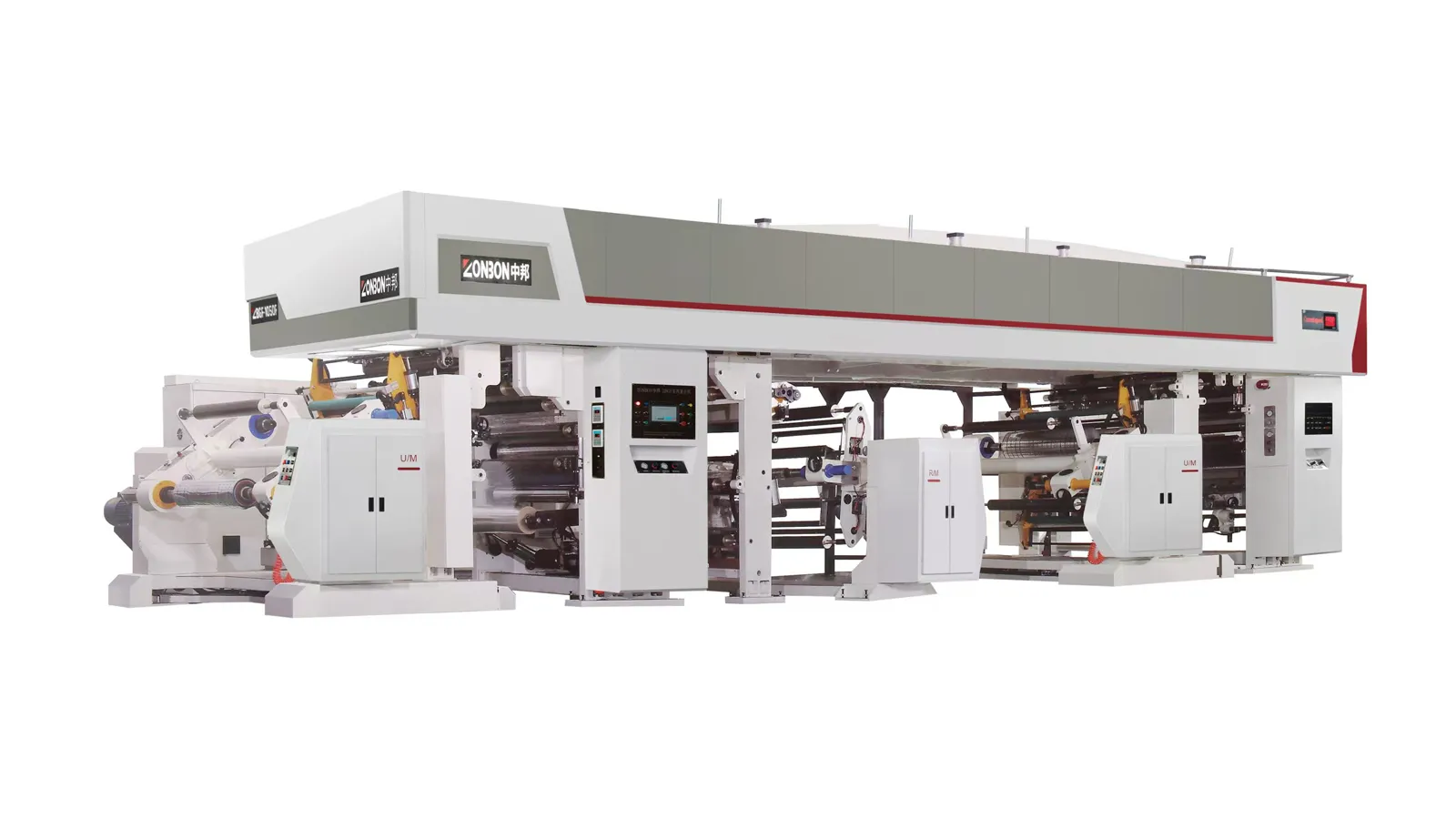

High-Speed Dry Laminating Machine for Advanced Flexible Packaging
The ZBGF-F Series dry laminating machine is a high-speed solution designed for advanced flexible packaging applications. Compared with standard models, it offers higher speed, enhanced stability, and improved automation, making it ideal for large-scale production.
High-Speed Performance
With a maximum laminating speed of up to 260 m/min, the ZBGF-F series significantly increases production efficiency while maintaining stable coating and bonding quality.
Advanced Dry Laminating Technology
The machine uses solvent-based adhesive coating, drying, and hot pressing processes, allowing for flexible material combinations and production of high-performance laminated films such as barrier, heat-resistant, and chemical-resistant packaging.
Precision Coating & Tension Control
Equipped with servo-driven coating units and four floating roller tension systems, the machine ensures accurate coating weight and stable web handling even at high speeds.
Wide Material Compatibility
Suitable for laminating 20–200 g/m² materials including PET, BOPP, CPP, PVC, aluminum foil, and paper.
Main Accessories
- Main machine
- Automatic feeding system
- Flattening device
- Hydraulic motor system
- PLC control system with touch screen
- Tools & English manual
Applications in High-End Flexible Packaging Industry
The ZBGF-F high-speed dry laminating machine is widely used in industries requiring high efficiency and high barrier performance.
- Food Packaging – snack, liquid, and oil-resistant packaging
- Cosmetic Packaging – high-quality laminated films
- Medical Packaging – sterile barrier materials
- Aluminum Foil Lamination – high barrier structures
- Detergent Packaging – chemical-resistant films
- Transfer Films & Labels – decorative and industrial applications
Food Packaging & Cosmetics Packaging & Detergent Packaging
Beverage Label & Transfer Film
Medical Packaging
Machine Running Video
Frequently Asked Questions
What is the difference between ZBGF-C and ZBGF-F?
ZBGF-F offers higher speed (up to 260 m/min) and is designed for large-scale production, while ZBGF-C is suitable for standard production needs.
What materials can be laminated?
Films, paper, aluminum foil, and various flexible packaging materials.
Is this machine suitable for high barrier packaging?
Yes, it is widely used for producing high-performance laminated films with barrier properties.
Can the machine be customized?
Yes, width can be customized up to 3000 mm depending on production requirements.
Is the machine easy to operate?
Yes, the PLC control system and automated features significantly reduce setup time and operator workload.
