Technical Specifications
| Model | ZBZD500×2 |
| Max Width | 180–430 mm × 2 |
| Max Length | 270–650 mm × 2 |
| Single Face Thickness | 0.01–0.05 mm |
| Speed | 100–280 pcs/min × 2 |
| Air Compressor | 10 HP |
| Voltage | 16 kW |
| Dimension | 6000 × 1800 × 1800 mm |
| Weight | 2700 kg |
Dual Line T Shirt Bag Making Machine for Vest Bag Production
The T shirt bag making machine is designed for producing plastic vest bags widely used in supermarkets, retail packaging, and daily consumer applications. This model is especially suitable for manufacturers requiring higher output and stable continuous production.
This dual line vest bag making machine adopts a hot sealing and hot cutting system, allowing two independent production lines to run simultaneously. It significantly improves production efficiency while maintaining consistent bag quality.
The machine supports a wide range of materials including HDPE, LDPE, recycled materials, and biodegradable films, making it suitable for modern packaging requirements and environmentally friendly bag production.
Equipped with two independent computer control systems and dual servo motors, the machine ensures stable film feeding and reliable operation during long production cycles. It is designed for 24-hour continuous operation in industrial environments.
For buyers searching for a plastic vest bag making machine, dual line bag making machine, or T shirt bag production equipment, this model provides a practical solution with higher capacity and flexible material compatibility.

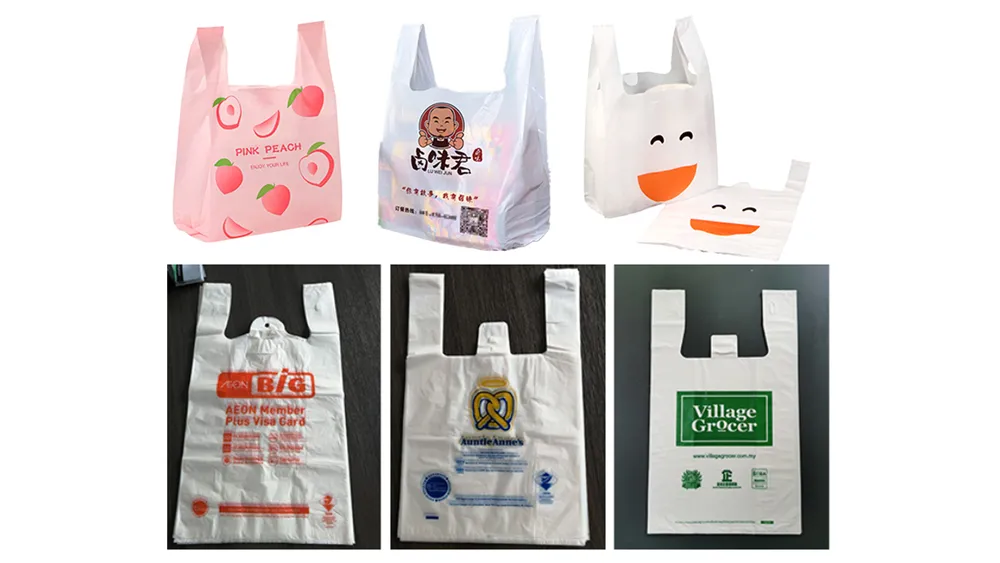

Applications of T Shirt Bag Making Machine
This machine is widely used for producing plastic vest bags for retail and commercial packaging applications.
- Supermarket vest bags
- T shirt bags for retail stores
- Plastic shopping bags
- Printed packaging bags
- Biodegradable carry bags
- Recycled material plastic bags
Dual Line T Shirt Bag Machine Questions
What is a dual line T shirt bag making machine?
It is a machine that produces two lines of T shirt bags at the same time, increasing production efficiency.
What materials can this machine process?
The machine supports HDPE, LDPE, recycled materials, and biodegradable films.
Is this machine suitable for continuous production?
Yes, it is designed for stable 24-hour continuous operation with independent control systems.
What industries use this machine?
It is widely used in supermarkets, retail packaging, and plastic bag manufacturing industries.
What is the advantage of dual-line production?
Dual-line production significantly increases output without requiring additional machines.
