Technical Specifications

Model ZBKFQ-1150D ZBKFQ-1350D ZBKFQ-1550D
Slitting Width 1100 mm 1300 mm 1500 mm
Unwind Diameter 800 mm
Rewind Diameter 600 mm
Materials PE, PP, PET, BOPP, PVC, Aluminum Foil
Max Speed 600 m/min
Accuracy ±0.2 mm
Paper Core 76 / 152 mm
Min Slitting Width 30 mm
Voltage AC 380V 50Hz
Dimensions 4500×4100×2300 mm 4500×4300×2300 mm 4500×4500×2300 mm
Product Description

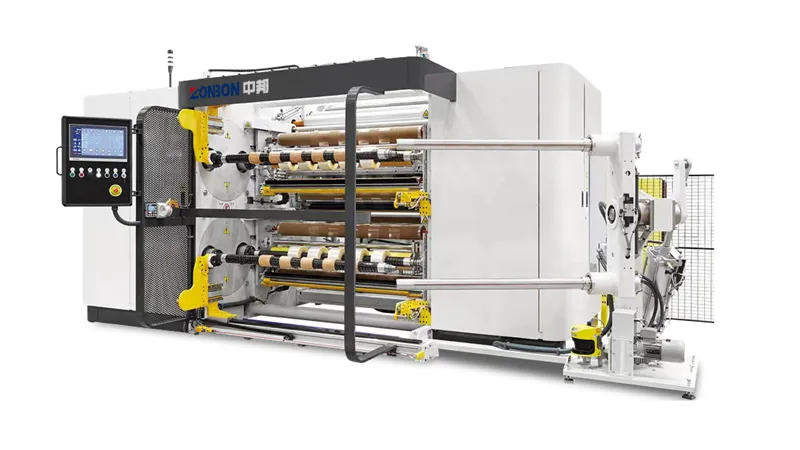

Duplex Turret High-Speed Slitting Machine for Continuous Production

The ZBKFQ-D series duplex turret slitting machine is a high-end solution designed for continuous, high-efficiency slitting of flexible materials such as PE, PET, BOPP, PVC and aluminum foil. With a maximum speed of 600 m/min and a four-shaft rewinding system, it is ideal for large-scale industrial production.

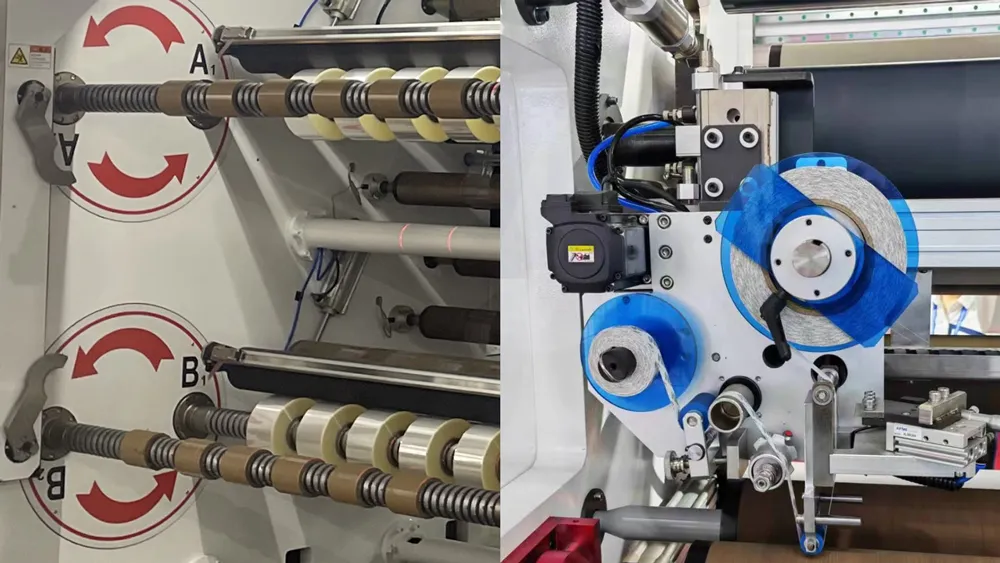

Four-Shaft Turret Rewinding System

The machine features a duplex turret system with four rewinding shafts, enabling automatic roll change without stopping the machine. This significantly improves productivity and reduces downtime in high-volume production environments.

Advanced Servo & Automation Control

Equipped with Siemens PLC and full servo drive, the machine provides precise control of unwinding, slitting, and rewinding processes. Intelligent automation ensures stable operation and minimizes manual intervention.

High Precision Slitting Performance

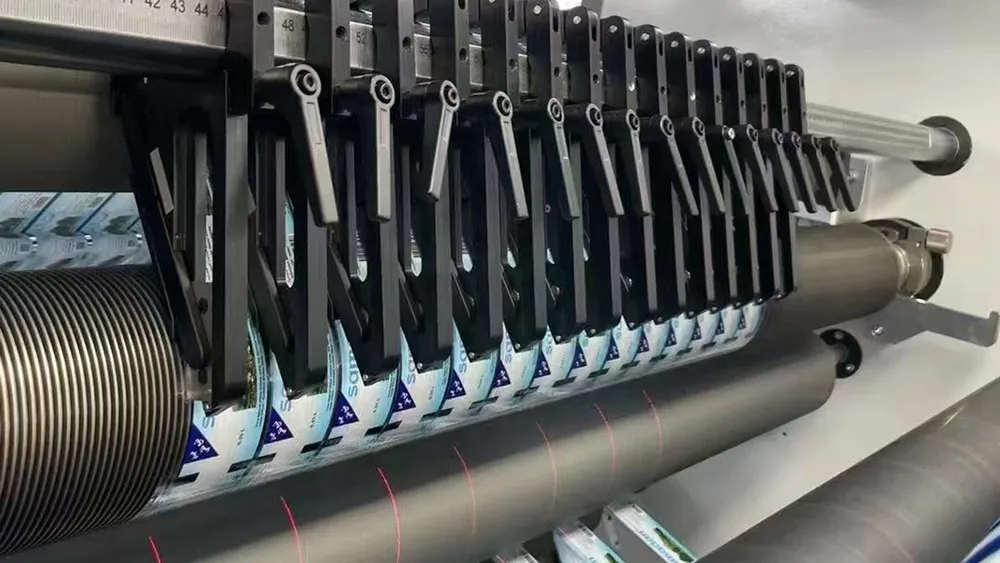

With slitting accuracy up to ±0.2 mm and automatic knife positioning, the machine guarantees consistent quality even at high speeds.

Efficient Material Handling System

The hydraulic shaftless loading system and EPC automatic alignment ensure stable material feeding. Waste edges are automatically removed by high-pressure suction systems for clean production.

Manufacturer Advantages

With over 20 years of experience, we provide lifetime technical support, customization services, and overseas installation. All machines are CE and ISO certified and undergo 100% quality inspection before delivery.

Main Accessories

  • Main machine
  • Automatic feeding table
  • Flattening device
  • Hydraulic motor system
  • PLC control system with touch screen
  • Receiving table (2500 mm)
  • Tools & English manual

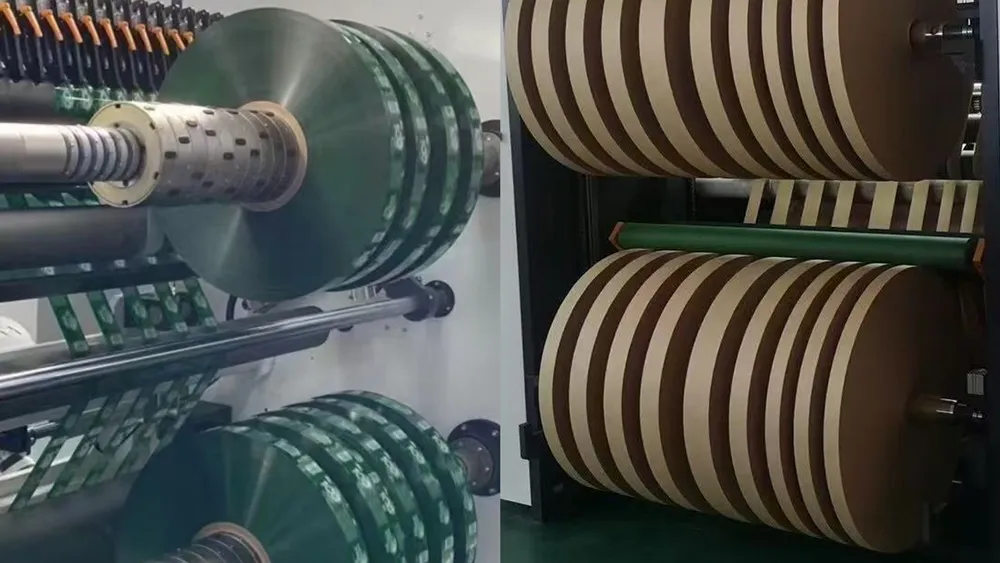

Product Applications

Applications of Duplex Turret Slitting Machine in High-Speed Converting Industry

The ZBKFQ-D duplex turret slitting machine is widely used in industries requiring continuous high-speed slitting and rewinding with minimal downtime.

  • BOPP Film Slitting
    Used for packaging films, adhesive tapes, and label production where high efficiency and precision are required.
  • PET Film Slitting
    Suitable for optical films, electronic insulation materials, and high-performance industrial films.
  • PE Protective Film Slitting
    Ideal for aluminum profiles, stainless steel sheets, and surface protection film processing.
  • PVC Film Slitting
    Applied in decorative films, shrink films, and flexible packaging materials.
  • Aluminum Foil Slitting
    Used in food packaging, pharmaceutical packaging, and industrial foil processing.
  • Laminated & Composite Film Slitting
    Perfect for multi-layer films used in flexible packaging and high-barrier materials.
Product Video

Machine Running Video

FAQ: Duplex Turret Slitting Machine

Frequently Asked Questions

What is the advantage of a duplex turret slitting machine?

The duplex turret system enables automatic roll change without stopping the machine, significantly improving production efficiency and reducing downtime.

What materials can be processed?

The machine supports PE, PP, PET, BOPP, PVC, aluminum foil, and other flexible materials.

What is the maximum speed?

The maximum slitting speed is up to 600 m/min.

How many rewinding shafts does this machine have?

This model features four rewinding shafts, allowing continuous operation and higher output efficiency.

Is this machine suitable for high-end production?

Yes, it is specifically designed for high-end customers requiring high speed, automation, and continuous production capability.

Can it be customized?

Yes, machine width and configurations can be customized up to 3000 mm.

What after-sales service do you provide?

We provide lifetime technical support, one-year warranty, and optional overseas installation and training services.
