Technical Specifications
| Model | ZBHQ-C1100 | ZBHQ-C1400 |
|---|---|---|
| Max Width | 1100 mm | 1400 mm |
| Max Roll Diameter | Φ1400 mm | |
| Max Roll Weight | 2000 kg | |
| Core Diameter | 3” (76mm) & 6” (152mm) | |
| Cutting Length | 20–2000 mm | |
| Cutting Accuracy | ±0.2 mm | |
| Cutting Speed | 30–180 cuts/min | |
| Material Thickness | 80–500 gsm | |
| Power | 8.5 kW | 11 kW |
| Weight | 2800 kg | 3000 kg |
| Dimension | 5400×3100×2000 mm | 5400×3400×2000 mm |
Machine Configurations

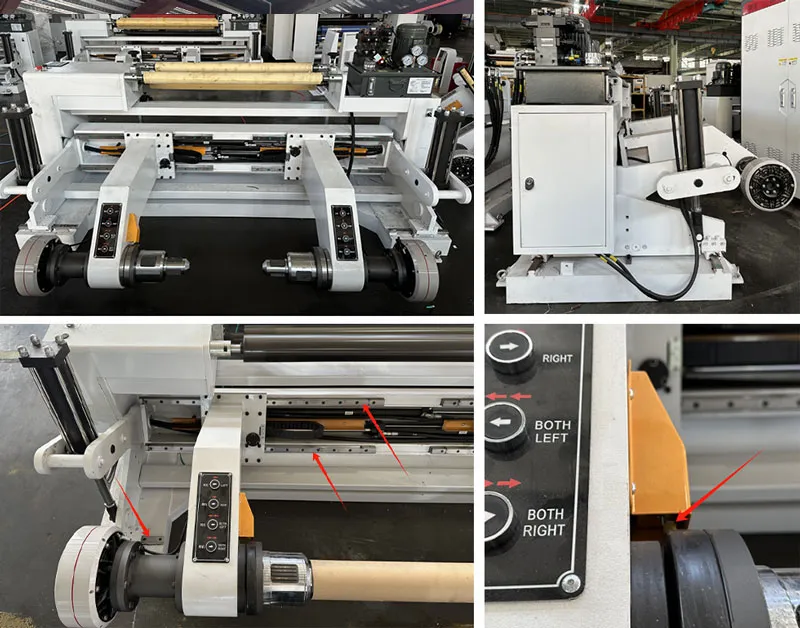

Shaftless Unwind
- Structure: Shaftless hydraulic loading system for jumbo rolls.
- Efficiency: Quick loading and unloading reduces downtime.
- Compatibility: Supports different core sizes.

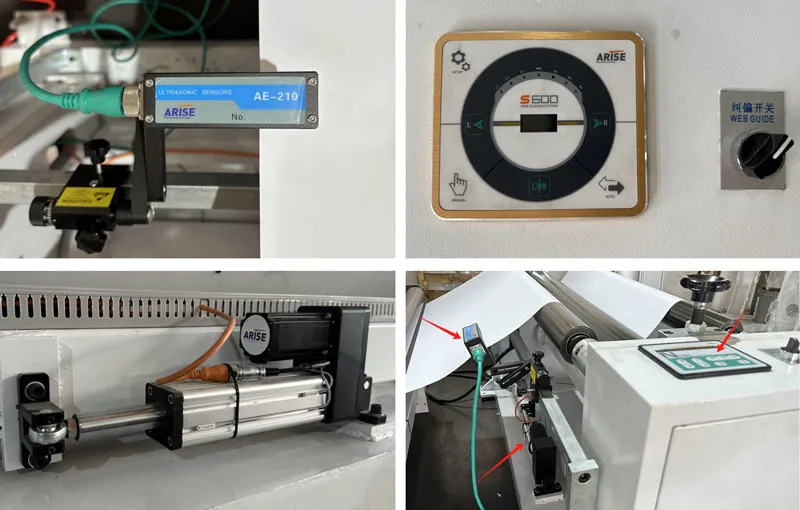

Web Guide System
- Sensor: High-precision ultrasonic or photoelectric detection.
- Function: Automatic correction of material deviation.
- Result: Ensures accurate feeding and cutting alignment.

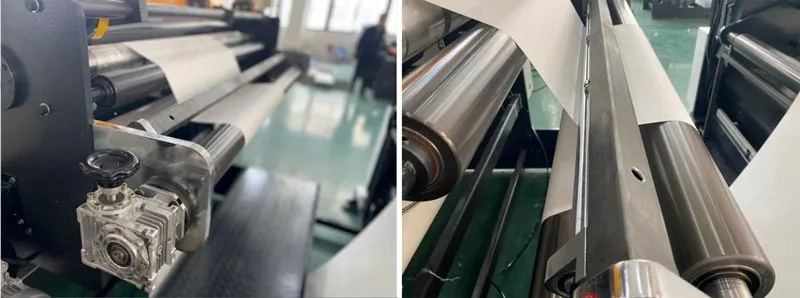

Anti-Curve Device
Designed to eliminate material curling and ensure flat sheet output, especially for thick paper and laminated materials.

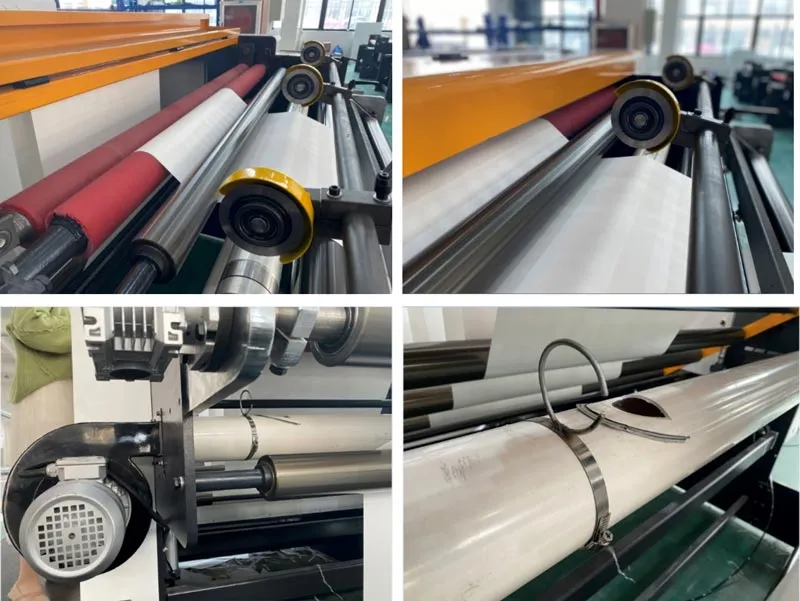

Slitting Function (Three Knives)
- Configuration: Three slitting knives for edge trimming and slitting.
- Flexibility: Adjustable knife position.
- Efficiency: Clean edge cutting with high-speed operation.

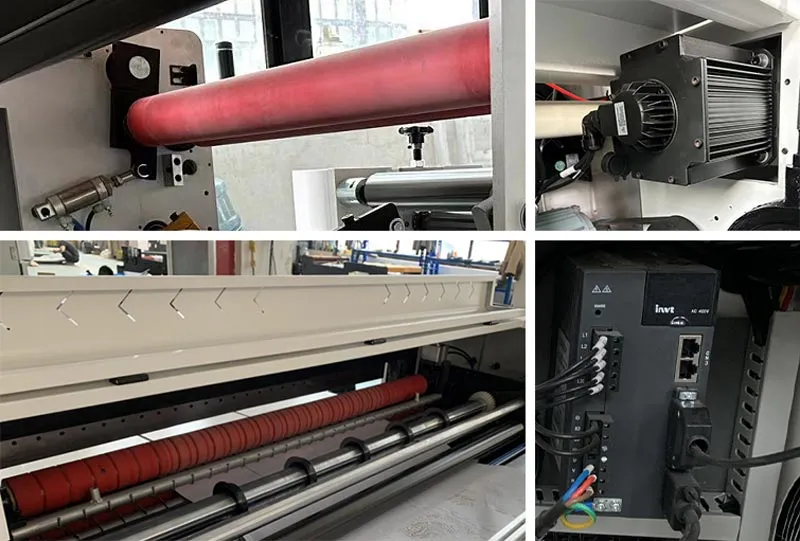

Traction System
- Drive: Servo-driven feeding system.
- Accuracy: Precise length control for cutting.
- Stability: Ensures smooth material transport.

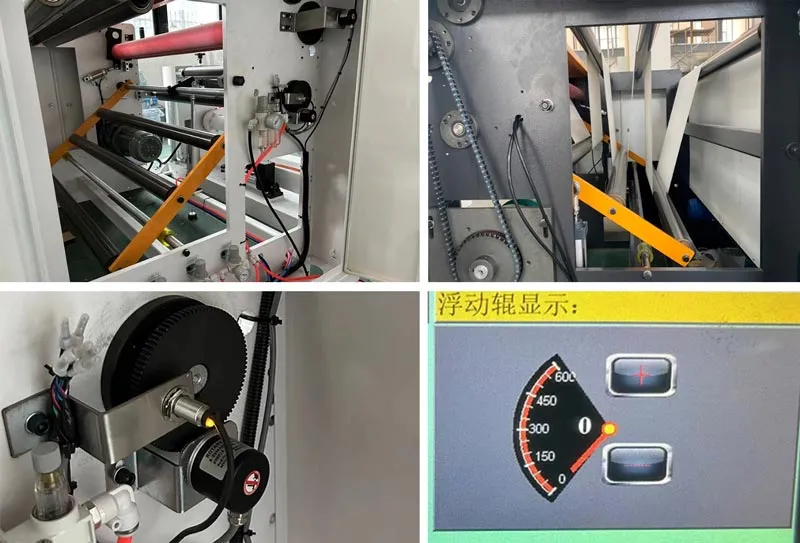

Dancer Roller (4 Sets)
- Tension Control: Maintains stable web tension.
- Real-Time Adjustment: Automatically adjusts speed based on material.
- Performance: Improves cutting precision.

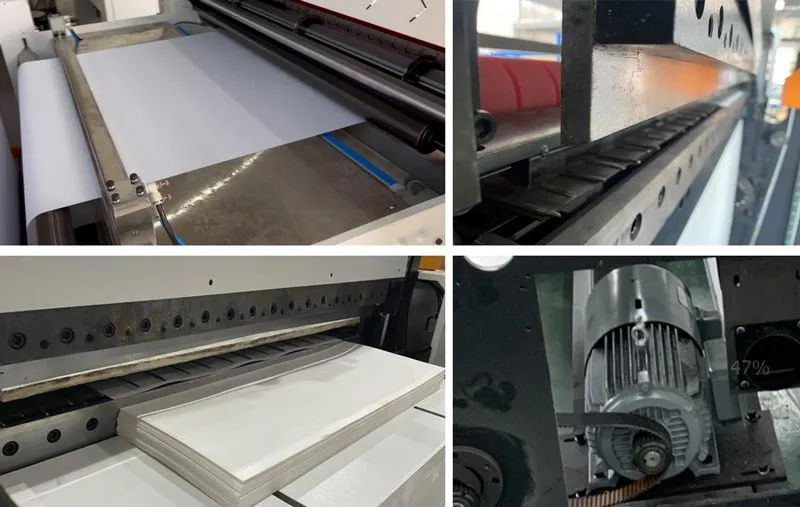

Cutting Unit
- Type: High precision cutting system.
- Blade: Durable cutting blade with long service life.
- Control: Servo synchronized cutting.

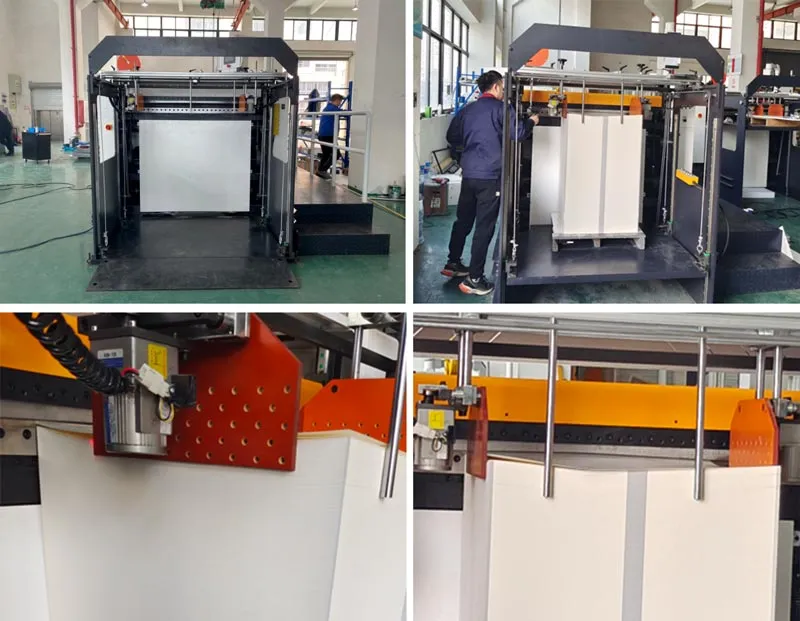

Auto Stacker
- Function: Automatic sheet collection and stacking.
- Efficiency: Reduces manual labor.
- Quality: Ensures neat and aligned stacks.

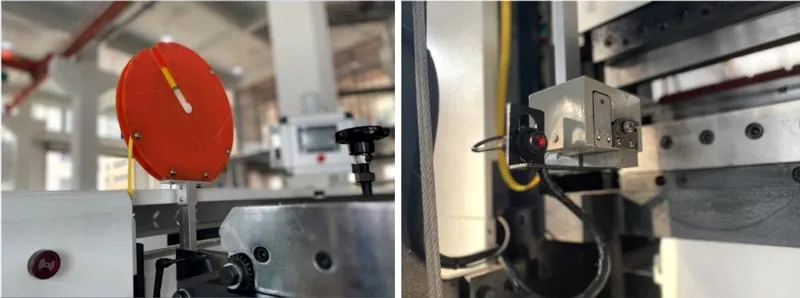

Label Insert System
Automatically inserts labels or markers into stacked sheets for easy batch identification and sorting.

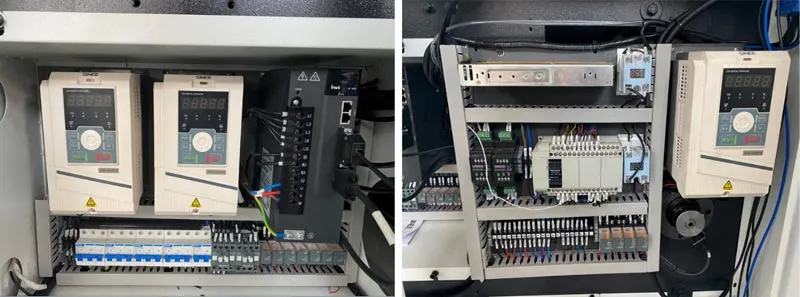

Electrical Unit / PLC Touch Screen System
- Control: PLC control with touchscreen interface.
- Operation: Easy parameter setting and monitoring.
- Automation: Supports automatic counting, fault alarm, and diagnostics.
Optional Configurations

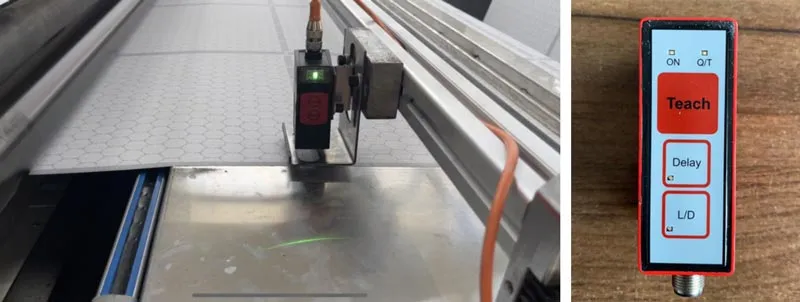

Multiple Unwinding Options
- Double Unwinding: Improves efficiency and reduces downtime.
- Four Unwinding: Suitable for multi-material feeding.
- Six Unwinding: High-end configuration for continuous and complex production.
Guillotine Shear Cross Cutting Machine for High Precision Sheet Cutting
The ZBHQ-C series guillotine shear cross cutting machine is designed for converting jumbo rolls into sheets with high precision and efficiency. It is widely used in paper processing, printing, and packaging industries.
High Precision Guillotine Cutting
The machine adopts a guillotine cutting knife system, ensuring smooth edges and high cutting accuracy up to ±0.2 mm, making it ideal for high-quality sheet production.
Automatic Stacking System
Equipped with an automatic stacker, the machine can complete cutting, conveying, and stacking processes continuously, improving production efficiency and reducing labor cost.
Stable Mechanical Structure
The fuselage is built with 16mm thick wallboard, providing excellent rigidity and stable operation even at high speeds.
Advanced Control System
Adopting Panasonic PLC control with a touchscreen interface, the machine supports cutting length setting, automatic stop, fault diagnosis, and intelligent operation.
Wide Material Compatibility
Suitable for kraft paper, coated paper, silicon paper, adhesive labels, laminates, plastic films, and nonwoven materials.
Safety & Reliability
Equipped with multiple safety protection systems, ensuring stable operation and reduced failure rate in long-term production.
Applications in Paper & Sheet Processing Industry
The ZBHQ-C guillotine cross cutting machine is widely used for converting roll materials into sheets.
- Paper Industry – kraft paper, coated paper, art paper
- Label Industry – adhesive labels and sticker materials
- Film & Laminates – plastic films and composite materials
- Packaging Industry – food packaging and industrial packaging
- Nonwoven Industry – hygiene and industrial materials
Suitable Materials
- Various Paper (80–500g): Kraft paper, art paper, silicon paper, coated paper, newsprint paper, and other paper materials.
- Sticky Labels: Adhesive paper and self-adhesive label materials.
- Various Laminates: Film-to-film and film-to-paper laminated materials.
- Plastic Films: Film materials with thickness of 30 micron or above.
- Nonwoven Materials: Suitable for nonwoven fabrics and similar roll materials.
Machine Running Video
Frequently Asked Questions
What is the difference between guillotine and rotary cutting?
Guillotine cutting provides higher precision and is better for thick materials, while rotary cutting is faster for thin materials.
What materials can be processed?
Paper, adhesive labels, films, laminates, and nonwoven materials.
What is the cutting accuracy?
Up to ±0.2 mm, suitable for high-end processing.
Is automatic stacking included?
Yes, the machine includes an automatic stacker for efficient sheet collection.
Can the machine be customized?
Yes, width and configuration can be customized up to 1600mm and 1800mm.
