Technical Specifications
| Model | ZBLM-1800 | ZBLM-2200 | ZBLM-2600 |
|---|---|---|---|
| Max. Loading Jumbo Roll Width | 1800 mm | 2200 mm | 2600 mm |
| Max. Loading Jumbo Roll Diameter | Φ1800 mm | ||
| Max. Loading Jumbo Roll Weight | 4000 kg | ||
| Unwind Paper Tube Inner Core Diameter | 3” (76mm) & 6” (152mm) & 12” (304.8mm) | ||
| Web Guide Sensor | Ultrasonic Sensor | ||
| Web Traction System | Double Rubber Roller Traction | ||
| Slitting System | Shear Slitting Circular Knife / Pneumatic Circular Cutter | ||
| Rewinding System | Duplex Rewind | ||
| Min. Slitting Width | 30 mm | 50 mm | 60 mm |
| Rewind Paper Tube Inner Core Diameter | 3” (76mm) | ||
| Max. Rewind Diameter | 1500 mm | ||
| Edge Trimming System | Blowing Fan 5.5 kW | ||
| Machine Speed | <400 m/min | ||
| Cutting Thickness | 30–500 gsm | ||
| Traction Motor | 15 kW | 18.5 kW | 22 kW |
| Rewind Motor | 15 × 2 kW | 18.5 × 2 kW | 22 × 2 kW |
| Total Power | 55 kW | 65 kW | 75 kW |
| Power Supply | 380V, 3 Phase, 50Hz | ||
| Air Supply | 0.6–0.8 MPa, 0.8 m³/min | ||
| Weight | 14000 kg | 15000 kg | 16000 kg |
| Overall Dimensions | 8100 × 4800 × 2300 mm | 8100 × 5400 × 2300 mm | 8100 × 5600 × 2300 mm |
Available Width Options: 1600 mm / 2000 mm / 2400 mm (customizable)
Machine Configurations
Heavy-Duty Shaftless Unwind
- Capacity: Supports jumbo rolls up to 4000kg and Φ1800mm diameter.
- Hydraulic System: Automatic lifting and clamping system.
- Core Size: 3”, 6”, and 12” supported.
- Tension Control: Pneumatic brake system ensures stable unwinding.
- Structure: Heavy-duty steel frame for long-term operation.
Web Guide System
- Sensor: Ultrasonic edge detection system.
- Control Mode: Automatic & manual correction.
- Precision: Maintains accurate web alignment.
- Performance: Stable operation for wide materials.

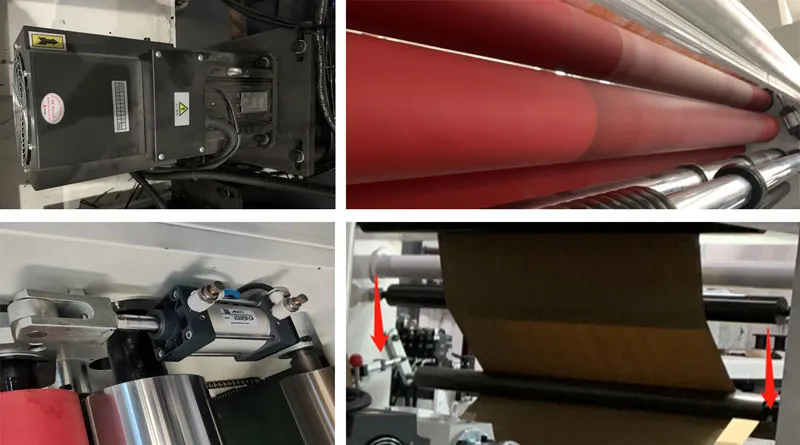

Double Rubber Roller Traction System
- Material: TPU rubber rollers for high durability.
- Drive: Servo synchronized traction system.
- Control: Pneumatic pressure adjustment.
- Performance: Prevents slipping and ensures stable feeding.

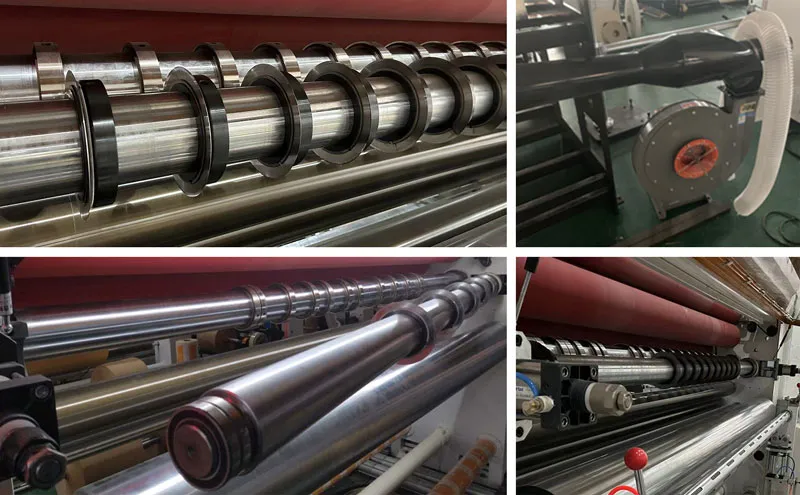

Slitting Unit
- Knife Type: Rotary shear slitting system.
- Configuration: Multiple knife sets for wide material.
- Adjustment: High precision positioning system.
- Waste Removal: High power suction fan system.
- Performance: Clean edge cutting at high speed.

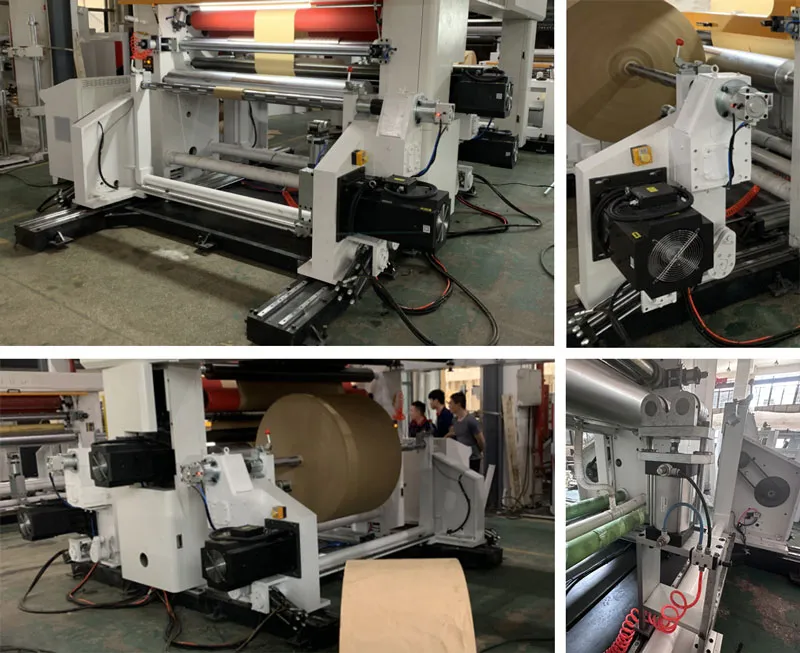

Rewinding System
- Type: Duplex center winding system.
- Drive: Dual independent servo motors.
- Diameter: Up to 1500mm large roll rewinding.
- Tension Control: Automatic tension control system.
- Structure: Heavy-duty shaft support design.

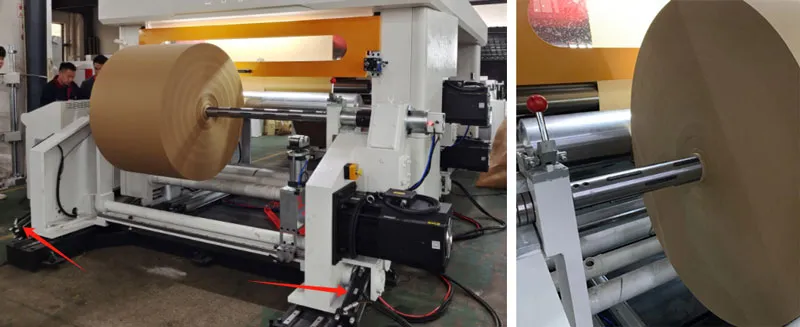

Auto Unloading of Finished Rolls
- Function: Automatic unloading of finished rolls.
- Drive: Motor-driven support arm system.
- Movement: Guide rail sliding structure.
- Safety: Limit sensors ensure safe operation.

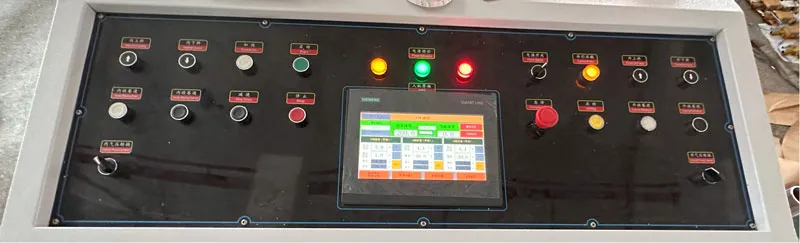

Control Panel
- Design: Ergonomic operator panel.
- Layout: Easy-to-use interface.
- Safety: Emergency stop system included.
- Operation: Centralized control for machine functions.

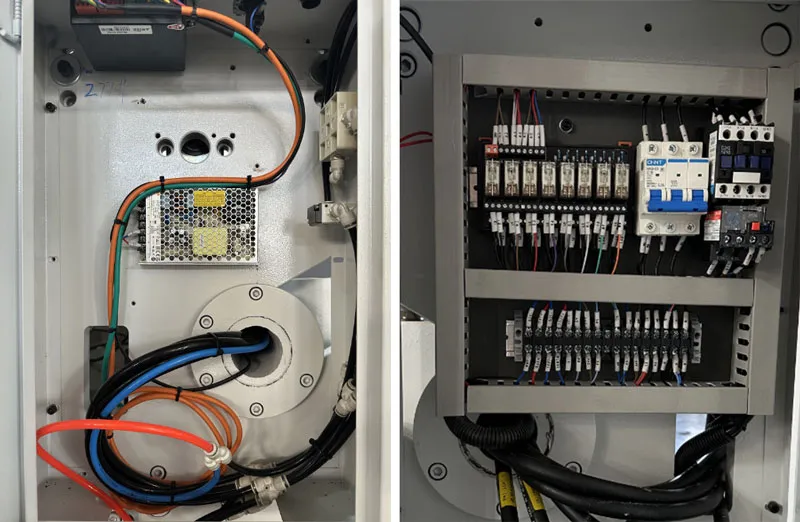

Electrical Box & Pneumatic System
- Components: High-quality electrical components.
- Layout: Integrated compact cabinet.
- Cooling: Ventilated design for stability.
- Durability: Reliable for long-term operation.

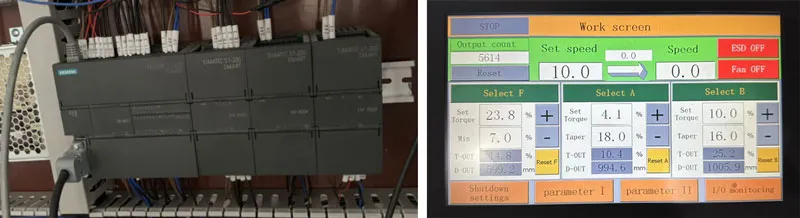

PLC & HMI System
- PLC: Siemens control system.
- Touch Screen: Industrial-grade interface.
- Functions: Auto tension, diameter calculation, meter counting.
- Monitoring: Real-time operation status display.
- Diagnostics: Fault alarm and troubleshooting system.
Optional Configurations

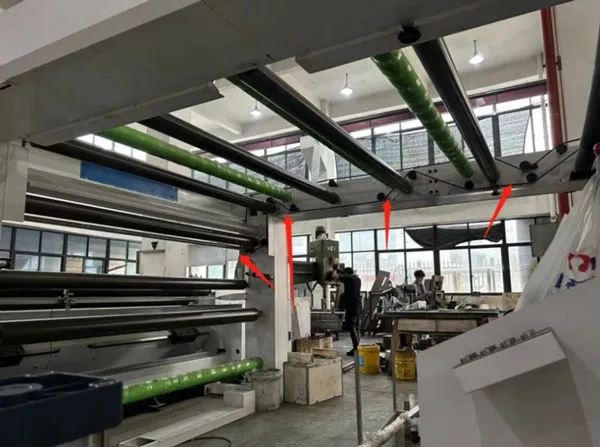

Auto Slitting Knife Positioning
- Automatic knife positioning system
- Motor-driven adjustment
- Touch screen parameter input

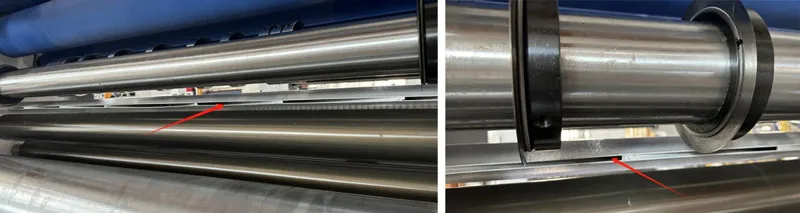

Dust Cleaning System
- Installed near slitting unit
- Dust removal strips with suction system
- Improves finished product cleanliness
Heavy Duty Paper Slitting Rewinding Machine for Jumbo Rolls
The ZBLM series paper slitting rewinding machine is designed for heavy-duty jumbo roll slitting applications. It supports extra wide materials up to 2600mm and large rewind diameters up to 1500mm, making it ideal for high-capacity production lines.
Heavy Duty Machine Structure
The machine adopts 60mm thick Q235 steel wallboard, ensuring high rigidity and stable performance even under high-speed and heavy-load conditions.
Large Roll Handling Capability
Designed for jumbo rolls up to 4000kg and 1800mm diameter, the machine ensures smooth unwinding and stable slitting performance.
High Precision Slitting System
Equipped with rotary shear slitting knives and precision-balanced rollers, the machine delivers clean edges and accurate slitting results.
Advanced Servo Control
Three independent servo motors control traction and rewinding, ensuring precise web tension and stable winding quality.
Automatic Operation & Efficiency
The machine integrates automatic roll unloading, trimming waste removal, and PLC intelligent control, significantly improving production efficiency.
Wide Industry Applications
Widely used in paper converting, packaging, printing, label production, and nonwoven industries.
Applications in Heavy Paper Converting Industry
- Paper Cup & Paper Bag Production
- Packaging Industry
- Printing Industry
- Label Converting
- Nonwoven Processing
Suitable Materials
- Various Paper (30–500g): Kraft paper, art paper, silicon paper, coated paper, newsprint paper, and other paper materials.
- Sticky Labels: Adhesive paper and self-adhesive label materials.
- Various Laminates: Film-to-film and film-to-paper laminated materials.
- Plastic Films: Film materials with thickness of 20 microns or above.
- Nonwoven Materials: Suitable for nonwoven fabrics and similar roll materials.
Machine Running Video
Frequently Asked Questions
What is the maximum roll weight?
Up to 4000kg jumbo rolls.
What is the maximum width?
Up to 2600mm.
What is the rewind diameter?
Up to 1500mm.
What industries is it suitable for?
Paper converting, packaging, and printing industries.
Can it be customized?
Yes, width can be customized to 1600/2000/2400mm.
