Technical Specifications
| Model | ZBFQ-1300 / ZBFQ-1600 | |
| Application | BOPP Tape, Masking Tape, Paper Tape, Duct Tape | |
| Machine Valid Width | 1300 mm / 1600 mm | |
| Maximum Jumbo Roll Diameter | 800 mm | |
| Maximum Small Roll Diameter | 150 mm (4-Shaft Automatic Change) | |
| Minimum Small Roll Width | 24 mm | |
| Inner Diameter of Small Roll | 76.2 mm (3 inches) | |
| Machine Speed | 0–350 m/min | |
| Automatic Functions | Automatic Tension Control, Automatic Label Posting, Automatic Cutting, Automatic Smoothing | |
| Optional Functions | Automatic Packaging Machine, Automatic Paper Core Cutting Machine, Hydraulic Feeding | |
| Voltage | 380V, 50Hz, 3 Phase | |
Automatic Tape Slitting and Finishing Workflow
The ZBFQ Series integrates multiple production processes into one automated workflow, helping manufacturers reduce manual operations and improve finished tape roll consistency.
| Production Process | Function |
|---|---|
| Jumbo Roll Loading | Prepares large adhesive tape rolls for continuous production. |
| Automatic Slitting | Divides wide tape materials into required widths with stable accuracy. |
| Automatic Rewinding | Creates finished tape rolls with consistent tension. |
| Automatic Label Posting | Applies product labels without manual operation. |
| Automatic Cutting and Smoothing | Improves finished roll appearance and production consistency. |
| Optional Packaging | Provides a complete solution from tape production to final packing. |
Build a Complete Automatic Tape Production Line
For customers requiring higher automation, the ZBFQ Series can be combined with additional equipment to create a complete tape finishing solution.
| Equipment | Function |
|---|---|
| High Speed Slitting Machine | Slitting and rewinding wide adhesive tape materials into finished rolls. |
| Automatic Paper Core Cutting Machine | Produces paper cores required for tape roll production. |
| Automatic Packing and Shrinking Machine | Packs finished tape rolls for transportation and distribution. |

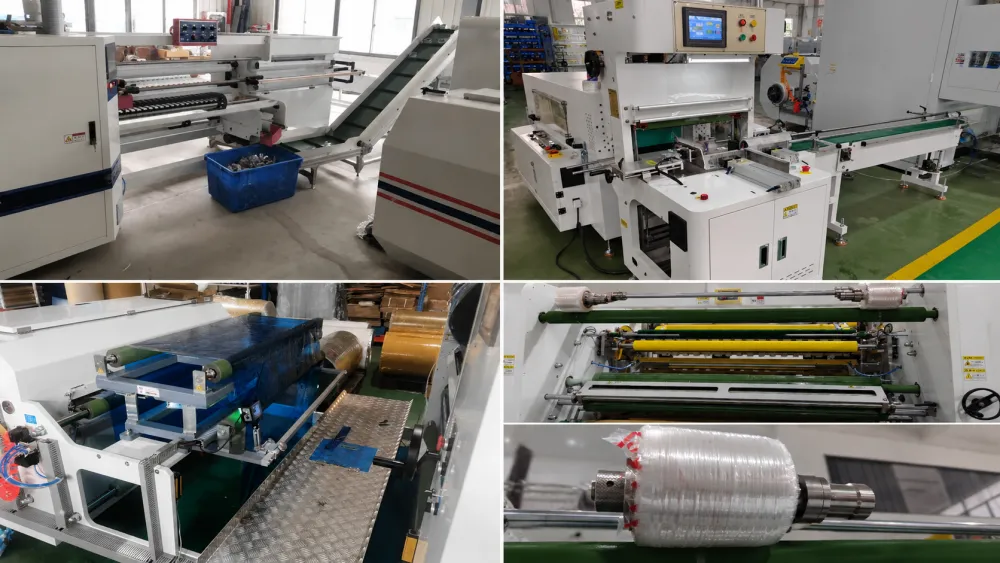

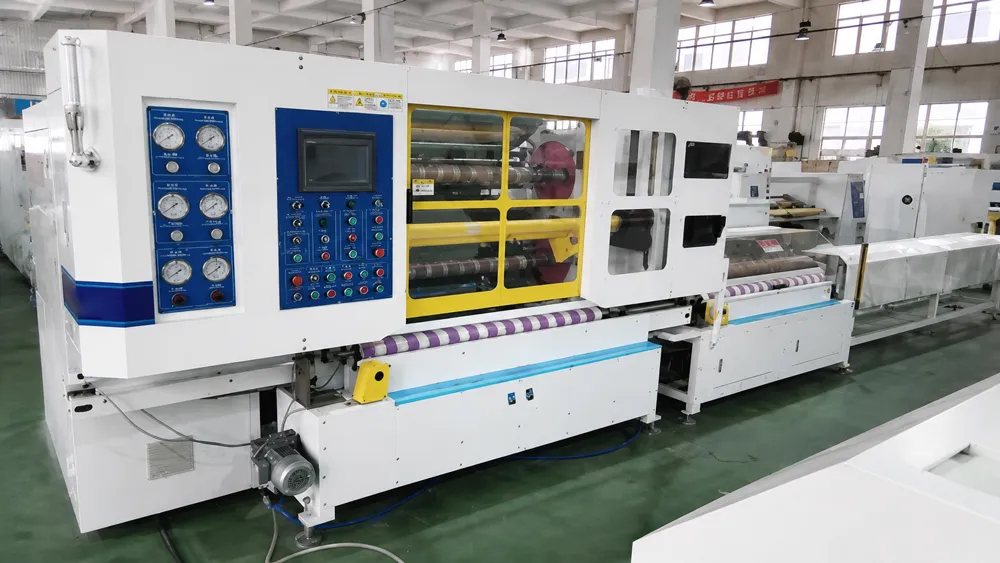

High Speed Fully Automatic Slitting Machine for Efficient Tape Production
The High Speed Fully Automatic Slitting Machine is designed for professional tape manufacturers requiring high production efficiency, stable roll quality, and reduced manual operation. It combines tape slitting, rewinding, automatic labeling, cutting, and smoothing functions into one integrated production solution.
Unlike traditional tape slitting machines that require additional manual handling after rewinding, the ZBFQ Series provides a higher level of automation. Automatic tension control ensures stable material feeding and rewinding, while automatic labeling and cutting functions improve production consistency and reduce labor requirements.
With a maximum machine speed of 350 m/min, this fully automatic tape slitting machine is suitable for high-volume production of BOPP packaging tape, masking tape, paper tape, and duct tape. It helps tape manufacturers improve productivity while maintaining accurate roll dimensions and professional finished roll appearance.
The machine supports jumbo rolls up to 800 mm diameter and produces small rolls with a minimum width of 24 mm, making it suitable for different tape specifications and market requirements. The optional automatic packaging machine, paper core cutting machine, and hydraulic feeding system allow customers to build a more complete tape converting solution according to their production needs.
For large tape manufacturers, packaging material suppliers, and overseas distributors looking for an automated tape production solution, the ZBFQ Series provides a reliable combination of speed, precision, and production flexibility.

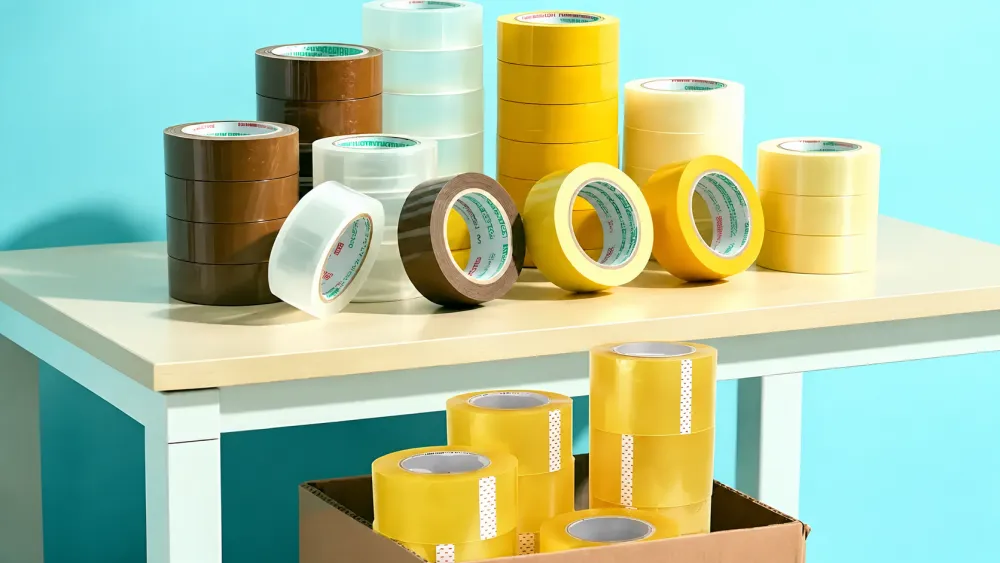

Typical Tape Products Produced
The ZBFQ High Speed Fully Automatic Slitting Machine is suitable for producing various adhesive tape products used in packaging, industrial, and commercial applications.
- BOPP Packaging Tape
- Masking Tape
- Paper Tape
- Duct Tape
- Industrial Adhesive Tape
- Carton Sealing Tape
- General Purpose Packaging Tape
- Customized Adhesive Tape Rolls
Machine Running Video
High Speed Fully Automatic Slitting Machine FAQ
What is a high speed fully automatic slitting machine?
A high speed fully automatic slitting machine is designed to convert wide adhesive tape rolls into multiple finished narrow rolls through automatic slitting, rewinding, labeling, cutting, and smoothing processes. Compared with traditional slitting equipment, it provides higher production efficiency, reduced manual operation, and more consistent finished roll quality.
What types of tape can this automatic slitting machine process?
The ZBFQ Series is designed for various adhesive tape applications, including BOPP packaging tape, masking tape, paper tape, and duct tape. It is suitable for tape manufacturers and converters producing different roll sizes and market-specific tape products.
What is the difference between a standard tape slitting machine and a fully automatic tape slitting machine?
A standard tape slitting machine usually requires more manual operations after slitting, such as labeling, cutting, and roll handling. A fully automatic tape slitting machine integrates functions including automatic tension control, automatic label posting, automatic cutting, and smoothing, helping manufacturers reduce labor requirements and improve production efficiency.
Why is automatic tension control important for tape production?
Automatic tension control helps maintain stable material feeding and rewinding during high-speed production. It reduces problems such as uneven winding, loose rolls, wrinkles, and inconsistent finished roll quality, especially when processing long production runs.
What production speed can this high speed tape slitting machine achieve?
The ZBFQ Series can achieve a maximum machine speed of up to 350 m/min, making it suitable for large-volume tape production where efficiency and stable output are important factors.
How do I choose between the 1300 mm and 1600 mm models?
The choice depends on the jumbo roll width, production requirements, and future expansion plans. The 1300 mm model is suitable for standard tape production, while the 1600 mm model provides additional width capacity for manufacturers processing wider adhesive materials or planning higher production flexibility.
Can this machine produce different tape roll sizes?
Yes. The machine supports different finished roll specifications and can produce small rolls with a minimum width of 24 mm and a maximum small roll diameter of 150 mm with automatic change functions. This flexibility allows manufacturers to serve different customer requirements.
Can this machine be connected with packaging equipment?
Yes. The ZBFQ Series supports optional integration with automatic packaging machines, automatic paper core cutting machines, and hydraulic feeding systems, allowing customers to build a more complete automatic tape production solution.
Is this machine suitable for tape distributors and overseas agents?
Yes. Many distributors and agents need to recommend suitable tape production equipment to their customers without having complete technical knowledge. ZONBON Machinery can help evaluate customer requirements, including tape material, production capacity, finished roll specifications, and automation level, to recommend the most suitable solution.
What information should I provide before requesting a quotation?
To recommend the right configuration, customers should provide information such as tape material, jumbo roll width, finished roll size, required production speed, daily output, and whether automatic labeling, packaging, or core processing functions are required. This helps our engineering team provide a more accurate machine recommendation.
What is the difference between a tape slitting machine and a log roll cutting machine?
A tape slitting machine converts wide adhesive tape rolls into narrower finished rolls by controlling cutting width and rewinding. A log roll cutting machine cuts already rewound large tape logs into smaller finished rolls. These two machines are used at different stages of the tape converting process.
