Technical Specifications
| Model | ZBLM 4000 | ZBLM 5200 | ZBLM 6700 |
|---|---|---|---|
| Slitting Width | 4000 mm | 5200 mm | 6700 mm |
| Unwind Diameter | 1000 mm | ||
| Rewind Diameter | 800 mm | ||
| Slitting Materials | BOPP / BOPET / CPP / CPE / PA Films | ||
| Max Slitting Speed | 600 m/min | ||
| Slitting Accuracy | ±0.2 mm | ||
| Paper Core Diameter | 76 / 152 mm | ||
| Min Slitting Width | 350 mm | ||
| Cutting Method | Flat Knife (Round Knife Optional) | ||
| Voltage | AC 380V / 50Hz | ||
| Dimensions | 8800×6500×2600 mm | 8800×7700×2600 mm | 8800×9200×2600 mm |
| Customizable widths: 8700mm, 10400mm | |||
Machine Configurations

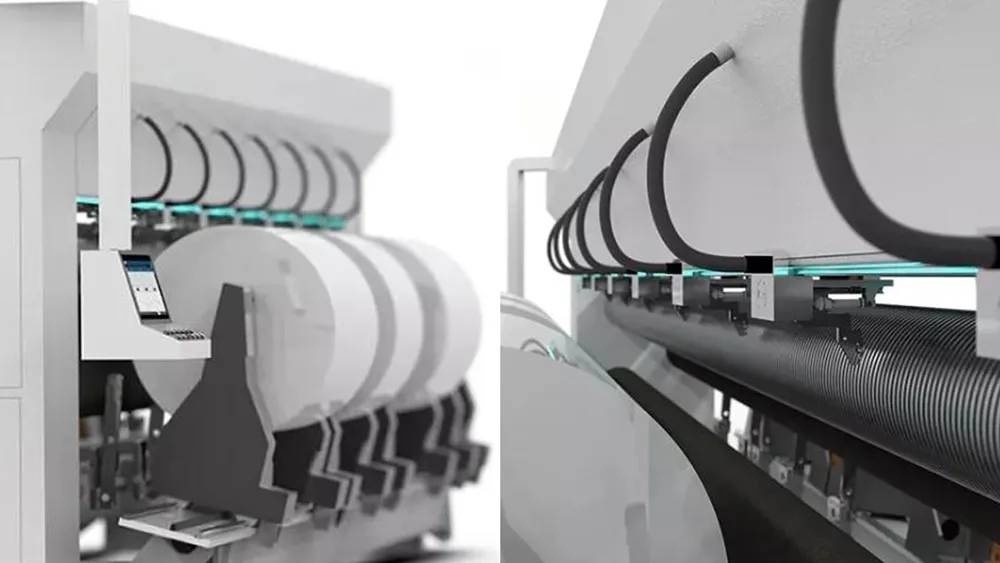

Flexible Control of Curves
Based on extensive experience in film processing, the proprietary control system allows flexible adjustment of slitting curves according to different material properties. This ensures stable operation, improved cutting accuracy, and easier parameter optimization for various film types.
Automatic Tool Changer
The automatic tool changing system replaces traditional manual operations, significantly reducing setup time during job changes. It improves efficiency, simplifies workflow, and ensures consistent slitting quality across different production runs.

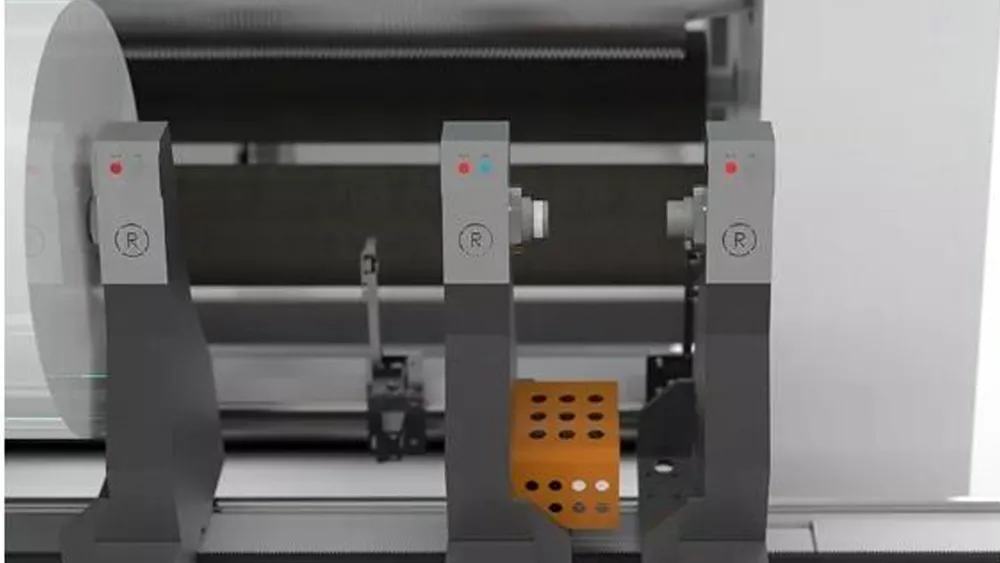

Automatic Winding Arm Adjustment
Linked with the automatic cutting system, the winding arm can be adjusted quickly and precisely. This feature enhances operational efficiency and ensures accurate winding alignment during high-speed production.

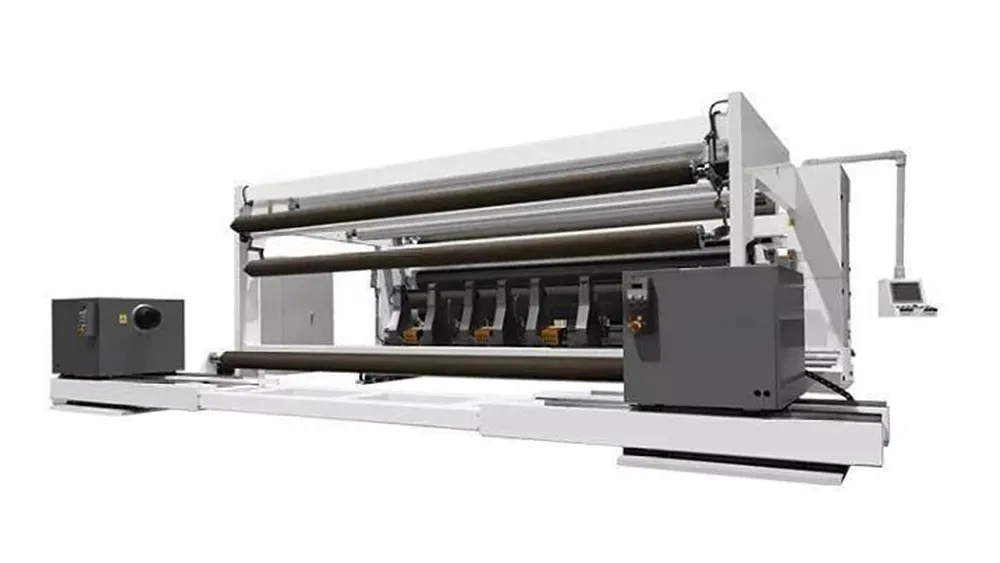

Shaftless Unwinding Automatic Unloading
The shaftless automatic unwinding system improves material handling efficiency by eliminating traditional shaft limitations. It reduces labor intensity, increases safety, and enables faster roll changeovers with greater flexibility for different roll sizes.

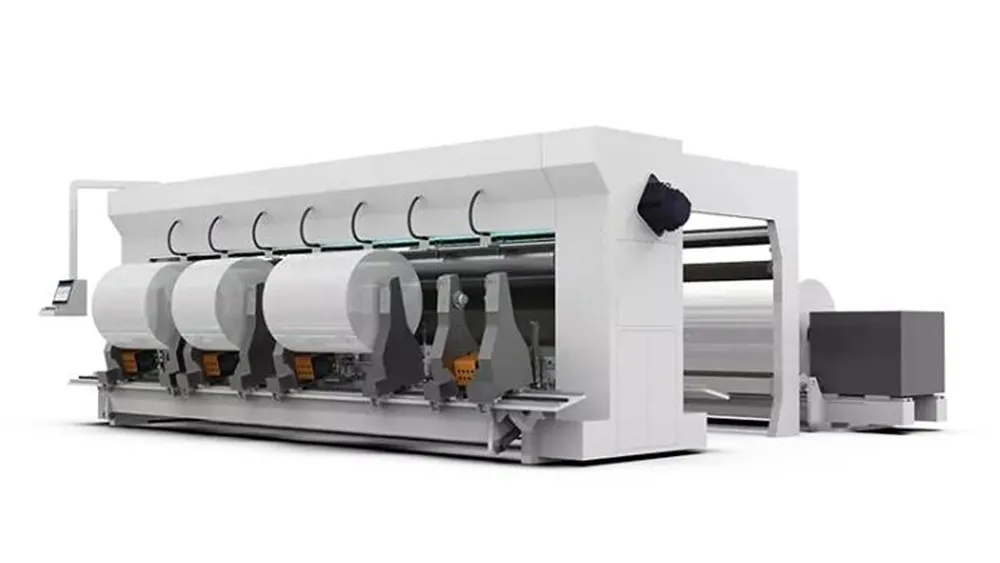

Multi-Station Independent Axis Winding
The multi-station independent winding system utilizes advanced mechatronic design to improve winding efficiency and stability. It eliminates quality risks associated with traditional winding methods and supports continuous high-speed production with consistent roll quality.

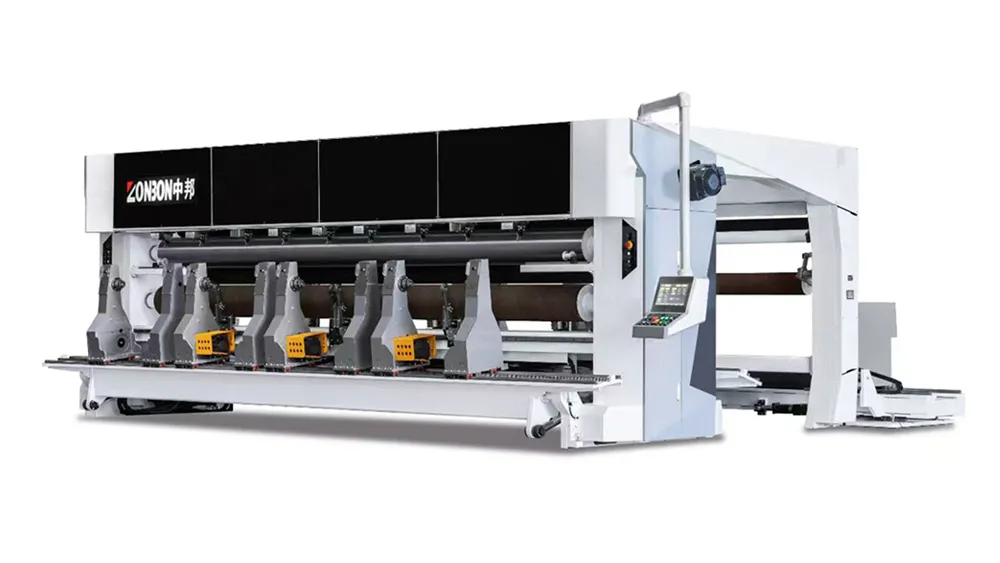

High-Performance Film Slitting Machine with Intelligent Control and Full Lifecycle Support
With over 20 years of experience in slitting machine manufacturing, ZONBON provides high-speed slitter rewinders designed for precision converting of paper, film, and adhesive materials. Our machines combine advanced automation, stable performance, and intelligent control systems to meet the demands of modern converting industries.
Engineered for efficiency and reliability, this slitting machine reduces setup time by up to 80% while ensuring high accuracy, smooth operation, and long-term production stability.
Complete Lifetime Service & Global Support
- Lifetime Technical Support: Continuous support throughout the entire lifecycle of the machine.
- 1-Year Warranty: Free replacement of parts damaged due to quality issues.
- Overseas Installation Service: Engineers available for on-site installation and operator training.
- Customized Solutions: Machine configuration can be tailored to your material and production requirements.
Integrated Equipment & Main Accessories
- Main slitting machine with high-speed performance
- Automatic up & down feeding table
- Flattening device for improved material stability
- Hydraulic motor system for smooth operation
- PLC control system with touch screen interface
- Hydraulic cutting device for precision slitting
- Receiving table (2500mm length)
- Complete tool kit and English operation manual
Proven Quality & Global Market Recognition
- Exported to more than 60 countries worldwide
- Repeat purchase rate of 50% – 80%
- 100% inspection before shipment (visual & functional testing)
- Certified with CE and ISO 9001 quality management system
Why Choose Our Slitting Machine
- High Quality Manufacturing: Built with premium materials and strict quality standards.
- Advanced Technology: High-speed slitting with intelligent automation and precise control.
- Competitive Price: Factory-direct supply ensures better value compared to trading companies.
- One-Stop Solution: Integrated design, manufacturing, and technical support for flexible packaging machinery.
Looking for a Customized Slitting Machine?
If you cannot find the exact slitting machine for your application, our engineering team can design a customized solution based on your material type, roll width, thickness, and production capacity.
Applications in Jumbo Film Production and Converting Industry
The ZBLM jumbo slitting machine is designed for ultra-wide film processing in high-output manufacturing environments.
-
BOPP / PET Film Production
Used in large-scale film extrusion and converting lines. -
Packaging Film Slitting
Ideal for flexible packaging and laminated film processing. -
Industrial Film Processing
Suitable for high-volume industrial film applications. -
Cast Film Master Roll Slitting
Optimized for jumbo roll processing with stable edge quality. -
Plastic Film Manufacturing Plants
Designed for continuous large-scale production environments.
Machine Running Video
Frequently Asked Questions
What is the maximum slitting width?
The machine supports widths up to 10400 mm with customization options available.
What industries use this machine?
It is mainly used in large-scale film production plants and flexible packaging industries.
Can it handle jumbo rolls?
Yes, it is specifically designed for cast film master rolls and jumbo roll processing.
Is automation included?
Yes, it includes automatic tool change, shaftless unwinding, and full PLC control.
