Technical Specifications

Model ZBAY-C180-1350 ZBAY-C180-1650 ZBAY-C180-2050
Colors 1–6 colors 1–6 colors 1–6 colors
Printing Width 1350 mm 1650 mm 2050 mm
Material Width 1380 mm 1680 mm 2080 mm
Printing Materials BOPP, PET, CPP, PE, PVC, Nylon, Paper
Max Printing Speed 200 m/min
Max Mechanical Speed 180 m/min
Register Accuracy ±0.1 mm (Horizontal & Vertical)
Unwind/Rewind Diameter 800 mm
Paper Core Diameter 76 mm
Printing Cylinder Diameter 100 – 380 mm
Power 160 kW 180 kW 200 kW
Weight 20000 kg 21000 kg 22000 kg
Dimensions 15000×4500×4800 mm 15000×4700×4800 mm 15000×4900×4800 mm
Product Description

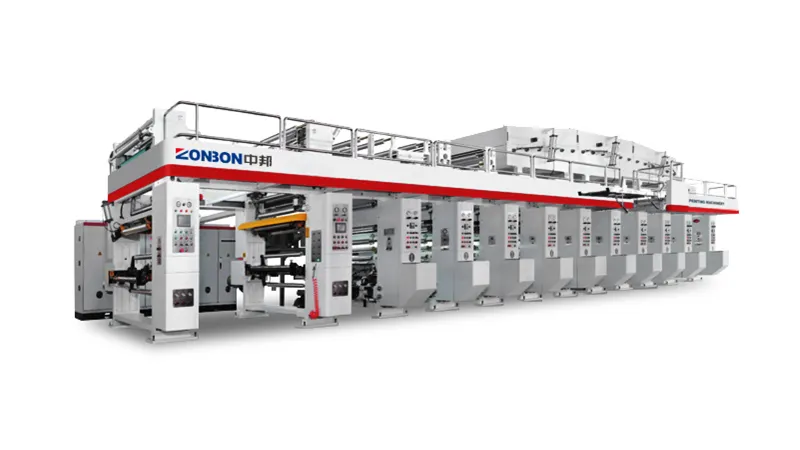

Protective Film Rotogravure Printing Machine for PE Film and Surface Protection Applications

The ZBAY-C180 protective film printing machine is designed for high-quality printing on PE protective films and other flexible substrates. It is widely used in industries such as aluminum profiles, stainless steel sheets, glass panels, and electronic product surface protection.

With a stable gear-driven MLS system and printing speeds up to 200 m/min, the machine ensures consistent printing quality, accurate registration, and efficient production for protective film manufacturers.

Optimized for Protective Film Printing

This machine is specially engineered for PE protective film production, delivering excellent ink adhesion, uniform coating, and high clarity printing results required in surface protection applications.

Stable Performance with High Efficiency

The gear-driven transmission system ensures reliable operation and reduces maintenance complexity, making it suitable for continuous industrial production environments.

Flexible Configuration for Different Applications

Available in 1 to 6 color printing units and multiple widths, the machine can be customized to meet different production requirements in protective film manufacturing.

Product Applications

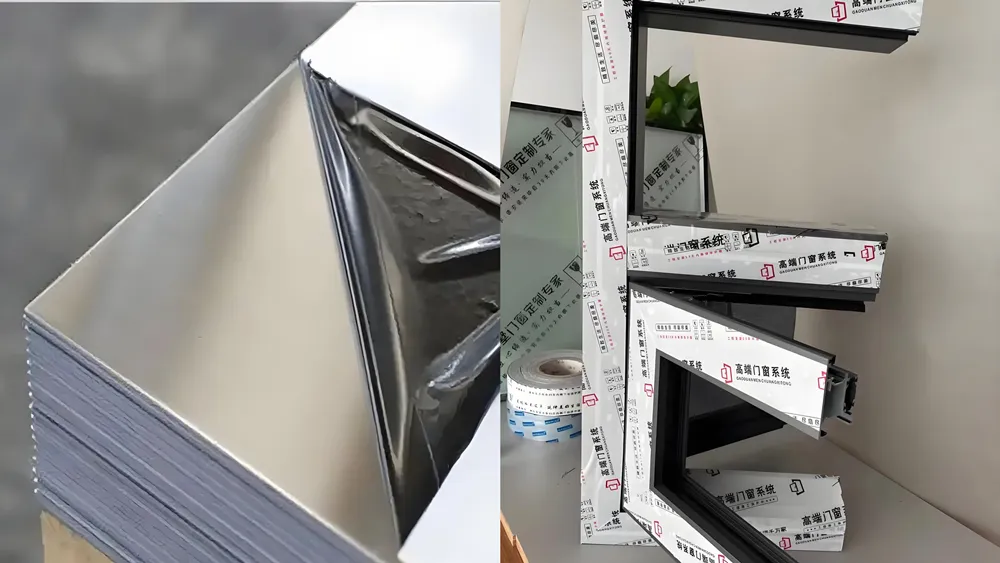

Applications in Protective Film Printing Industry

The ZBAY-C180 printing machine is widely used for producing protective films applied to various industrial and consumer products.

  • Aluminum Profile Protective Film
    Used for protecting aluminum surfaces during transportation and installation.
  • Stainless Steel Sheet Protection Film
    Suitable for surface protection of stainless steel panels.
  • Glass Protective Film Printing
    Applied in glass manufacturing and architectural glass protection.
  • Electronics Surface Protection
    Used for screens, panels, and electronic components.
  • Plastic Sheet & Panel Protection
    Suitable for acrylic sheets and plastic panels.
FAQ: Protective Film Printing Machine

Frequently Asked Questions

What is this machine mainly used for?

It is used for printing PE protective films applied to metal, glass, plastic, and electronic products.

What materials can be printed?

It supports PE, BOPP, PET, CPP, PVC, and other flexible materials.

How many colors can it print?

The machine supports 1 to 6 colors depending on configuration.

Is customization available?

Yes, machine width and configuration can be customized based on production needs.
