Technical Specifications
| Model | ZBFQ300TTR1050 |
|---|---|
| Max. Jumbo Roll Width | 1010 mm |
| Max. Jumbo Roll Diameter | Φ650 mm |
| Max. Jumbo Roll Weight | 200 kg |
| Material Thickness | 4–20 μm |
| Min. Slit Width | 20 mm |
| Rewind Core Diameter | 1/2" (12.7 mm) / 1" (25.4 mm) |
| Max. Rewind Diameter | 150 mm |
| Machine Speed | Up to 300 m/min |
| Total Power | 5 kW |
| Power Supply | 220V, 1P/3P, 50–60Hz |
| Machine Weight | 2000 kg |
| Overall Dimension | 2600 × 2050 × 1710 mm |

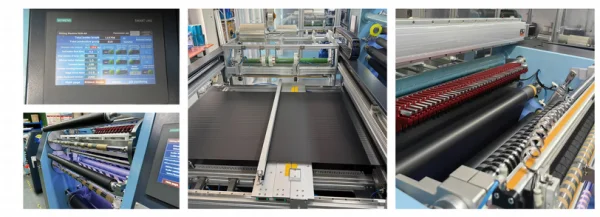

Key Features & Advantages
- Magnetic Clip Blade Holders: Quickly adjust slitting widths for different ribbon specifications, reducing setup time and improving production flexibility.
- Multiple Air Shaft Configuration: Equipped with one 1-inch air shaft and four 1/2-inch air shafts for easier core loading, stable rewinding and faster production changeovers.
- Ribbon-Saving Leader & Trailer Table: Semi-automatic leader and trailer table minimizes ribbon waste by eliminating the need to cut material during roll preparation.
- Optimized Roller Design: High-quality rollers and practical machine layout ensure smooth web handling and user-friendly operation.
- Automatic Tension Control: Maintains stable web tension throughout production, helping produce consistent ribbon rolls with reliable quality.
- SIEMENS PLC Control System: Provides stable machine operation, accurate process control and long-term reliability.
- Four Servo Motor Drive System: Combined with Taiwan inverter technology to deliver precise tension control, stable rewinding performance and extended machine lifespan.
ZBFQ300TTR Ribbon Slitting Machine for Thermal Transfer Ribbon Production
The ZBFQ300TTR Ribbon Slitting Machine is designed for manufacturers producing thermal transfer ribbons used in barcode printing, product identification, logistics labeling and industrial coding applications. It provides a cost-effective solution for converters seeking reliable slitting quality and stable production performance.
Many ribbon manufacturers face challenges such as uneven rewinding, ribbon edge damage, excessive material waste and inconsistent finished roll quality. The ZBFQ300TTR is engineered to help reduce these issues while improving production efficiency and ease of operation.
Designed for Start-Up and Growing Ribbon Manufacturers
This model is particularly suitable for companies entering the thermal transfer ribbon market or expanding existing production capacity. Its compact design and user-friendly operation help reduce operator training requirements and simplify daily production management.
Low-Waste Ribbon Converting
The semi-automatic leader and trailer table includes a ribbon-saving design that helps reduce material waste during roll preparation and changeover operations, improving overall material utilization.
Stable Rewinding for Better Roll Quality
Four servo motors combined with automatic tension control help maintain stable rewinding performance, ensuring consistent finished rolls suitable for barcode printers and thermal transfer printing systems.
Quick Slitting Width Adjustment
Magnetic blade holders allow operators to adjust slitting widths quickly and efficiently, reducing setup time and improving production flexibility for different ribbon specifications.
Support Beyond Machine Supply
Many distributors and end users understand their ribbon products but are unsure how to select the most suitable machine configuration. ZONBON Machinery assists customers with material evaluation, production planning and machine recommendations to reduce purchasing risks and improve long-term production performance.
Applications in Thermal Transfer Ribbon Production
- Wax Ribbon Production
- Wax-Resin Ribbon Production
- Resin Ribbon Production
- Barcode Ribbon Converting
- Logistics Label Ribbon Rolls
- Product Identification Printing
- Industrial Coding Applications
- Thermal Transfer Ribbon Manufacturing
