Technical Specifications
| Model | ZBGM-1400 | ZBGM-1700 | ZBGM-1900 |
|---|---|---|---|
| Material Weight | 50 – 550 g/m² | ||
| Max Roll Diameter | 1800 mm | ||
| Max Paper Width | 1400 mm | 1700 mm | 1900 mm |
| Cutting Length | 400 – 1450 mm | 400 – 1650 mm | |
| Cutting Accuracy | ±0.3 mm | ||
| Total Power | 28 kW | ||
| Air Pressure | Max 5.5 kg/cm² | ||
| Machine Weight | 10,000 kg | 13,000 kg | |
Machine Configurations
Dual-Position Shaftless Pivot Unwinding Frame
- Maximum Reel Diameter: 1800mm.
- Maximum Reel Width: 1100mm / 1400mm / 1700mm / 1900mm.
- Minimum Reel Width: 300mm.
- Spool Dimensions: 3" / 6" / 12" (mechanical chuck optional).
- Hydraulic Drive: 3.5kW.
- Hydraulic Motion: Clamp arm forward/backward and up/down movement.
- Brake System: Pneumatic braking system with rollers and integrated brackets.

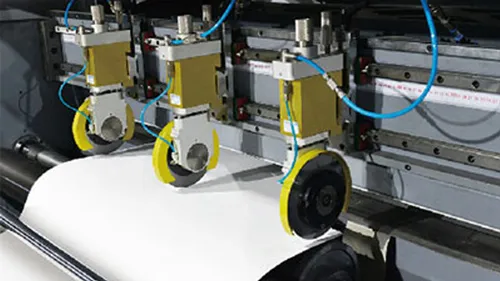

Slicer
- Pneumatic Slitting Units: Three sets of pneumatic slitting units for edge trimming and slitting.
- Operation: High-speed, smooth and force-free trimming performance.
- Adjustment: Rapid adjustment and locking functions for easy setup.
- Tool Holder: High-rigidity holder suitable for high-speed slitting at 300 m/min.

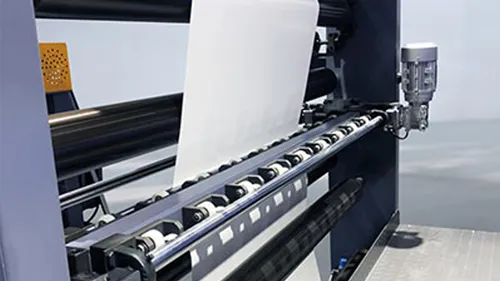

Electric Double Curl Hair Styler
This unit effectively removes wrinkles, makes the paper surface smoother, and improves roll tension stability. It allows the machine to process thick sheets with a weight range of approximately 200–500gsm more smoothly and reliably.

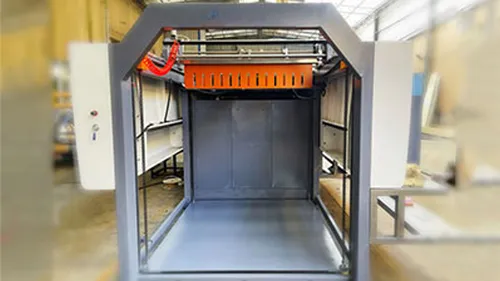

Delivery and Automated Jogging System
- Automatic Lowering: The paper automatically descends when it reaches a preset height.
- Chain-Type Design: Automatic up/down movement ensures more stable operation and longer service life.
- Multi-Stage Conveyor: From high-speed to low-speed delivery for smooth sheet separation and collection.
- Stacking Function: Sheets are overlapped, collected, and stacked automatically.
- Jogging System: Three-sided shaking and sorting function improves stacking neatness.
- Easy Adjustment: Side motors and manual amplitude adjustment improve simplicity and safety.

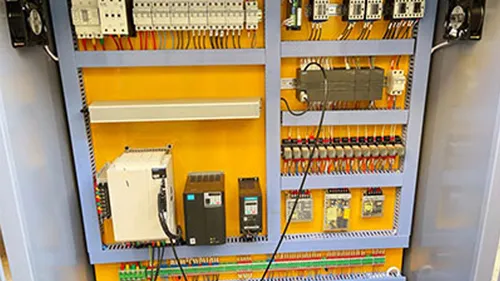

Electronic Control
The machine uses Yaskawa servo systems, Siemens PLCs, Schneider Electric, Eaton, and other imported electrical components to ensure precise control, stable performance, and reliable long-term operation in high-speed production environments.

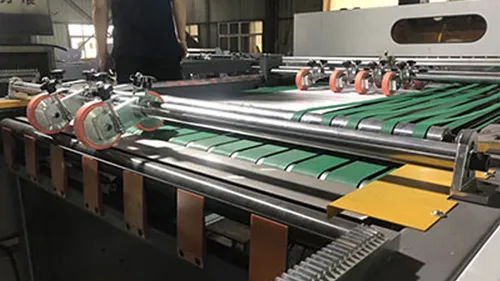

Delivery Unit
- Belt Control: Fast and slow belts are controlled by a stepless frequency converter.
- Automatic Tracking: The system automatically tracks blade speed and adjusts belt speed.
- Paper Overlap: Ensures accurate and neat paper overlap for final sheet collection.
- Counting Function: Automatic counting and type marking can be inserted after precise counting.
- HMI Input: Operators can enter required document quantity directly in the touchscreen.
Double Unwinding
Double unwinding configuration is available for higher production flexibility, continuous material preparation, and reduced downtime during roll change operations.
Four Unwinding
Four unwinding configuration can be selected for more complex converting requirements, improving production continuity and supporting multiple material feeding demands.
Six Unwinding
Six unwinding configuration is suitable for advanced production lines requiring higher material handling capacity, more feeding positions, and greater operational flexibility for specialized cutting applications.
Servo Rotary Shear Cross Cutting Machine for High Precision Sheet Cutting
The ZBGM series servo rotary shear cross cutting machine is designed for high-precision cutting of web materials such as paper, films, nonwoven fabrics, and composite materials. It integrates unwinding, cutting, conveying, and stacking into one efficient production line.
High Precision Cutting Performance
With a cutting accuracy of up to ±0.3 mm, the machine ensures precise sheet sizing for high-end packaging and printing applications.
Advanced Servo Control System
The machine adopts a servo-driven system combined with Siemens PLC and touchscreen interface, enabling precise control of cutting length, speed, and counting functions.
Stable Mechanical Structure
The machine frame is made of high-quality ductile iron with optimized structural design, reducing vibration and ensuring stable operation during high-speed cutting.
High-Speed Cutting Efficiency
Equipped with rotary shear cutting technology and high-rigidity knife holders, the machine supports high-speed operation up to 300 m/min with smooth and accurate cutting performance.
Multi-Function Processing Capability
Supports slitting, trimming, automatic counting, stacking, and conveying. It is suitable for a wide range of materials and production requirements.
Main Accessories
- Main machine
- Dual shaftless unwinding system
- Pneumatic slitting unit
- Automatic stacking system
- PLC control system with touchscreen
- Tools & English manual
Applications in Paper Processing & Flexible Material Cutting
The ZBGM cross cutting machine is widely used in multiple industries requiring high precision sheet cutting.
- Paper Packaging – cardboard, corrugated paper, paper boxes
- Printing Industry – labels, photo paper, book covers
- Plastic & Film – PET, PVC, composite films
- Nonwoven & Textile – sanitary materials, filter materials
- Electronics Industry – optical films, lithium battery materials
