Technical Specifications
| Model | ZB300-ELS-650 | ZB300-ELS-1350 |
|---|---|---|
| Colors | 3 colors | 3 colors |
| Printing Width | 650 mm | 1350 mm |
| Material Width | 680 mm | 1380 mm |
| Printing Materials | BOPP, PET, CPP, PE, PVC, Nylon, Paper | |
| Max Printing Speed | 280 m/min | |
| Max Mechanical Speed | 300 m/min | |
| Register Accuracy | ±0.1 mm Horizontal & Vertical | |
| Unwind / Rewind Diameter | 800 mm | |
| Paper Core Diameter | 76 mm | |
| Printing Cylinder Diameter | 120 – 350 mm | |
| Power | 100 kW | 130 kW |
| Weight | 23000 kg | 25000 kg |
| Dimension | 16000 × 4500 × 3800 mm | 16000 × 4700 × 3800 mm |
ELS Rotogravure Printing Machine for Adhesive Tape Printing
The ZB300-ELS rotogravure printing machine is specially designed for adhesive tape printing applications such as BOPP packaging tape, kraft tape and industrial transportation tapes. It adopts electronic line shaft (ELS) servo drive technology to ensure precise synchronization and stable printing performance.
With a maximum printing speed of 280 m/min and mechanical speed up to 300 m/min, this machine delivers high productivity while maintaining consistent print quality for logos, branding and tape surface graphics.
Optimized for Tape Printing Production
The machine supports narrow to medium web widths and is ideal for adhesive tape manufacturers requiring efficient, stable and cost-effective printing solutions.
Servo Driven High Precision System
Each gravure cylinder is independently driven by servo motors, ensuring accurate register control and reducing mechanical wear compared to traditional gear-driven systems.
Flexible Configuration
Available in 1–3 printing units, the machine is suitable for simple logo printing, multi-color tape branding and industrial tape production lines.
Applications in Adhesive Tape Printing Industry
The ZB300-ELS rotogravure printing machine is widely used for printing various adhesive tapes used in packaging, logistics and industrial applications.
-
BOPP Packaging Tape Printing
Suitable for printing logos, brand names and warning messages on BOPP adhesive tapes. -
Kraft Paper Tape Printing
Used for eco-friendly kraft paper tape printing in e-commerce and packaging industries. -
Industrial and Transportation Tape
Applicable for heavy-duty industrial tapes and transportation packaging tapes. -
Custom Branded Tape Production
Supports multi-color printing for customized adhesive tape branding solutions. -
Logistics and E-commerce Packaging
Widely used in courier packaging and warehouse operations requiring printed tapes.

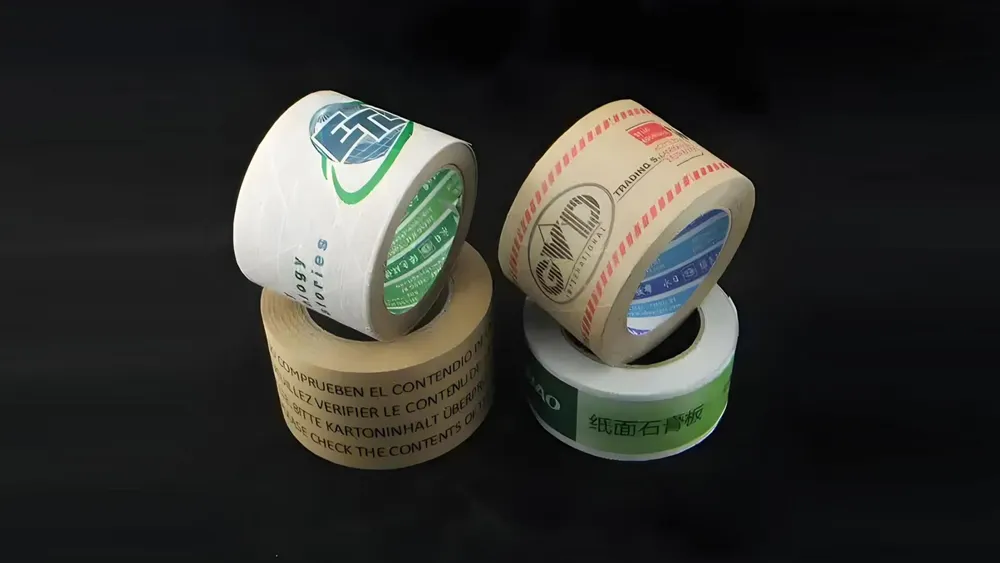

Kraft Tape

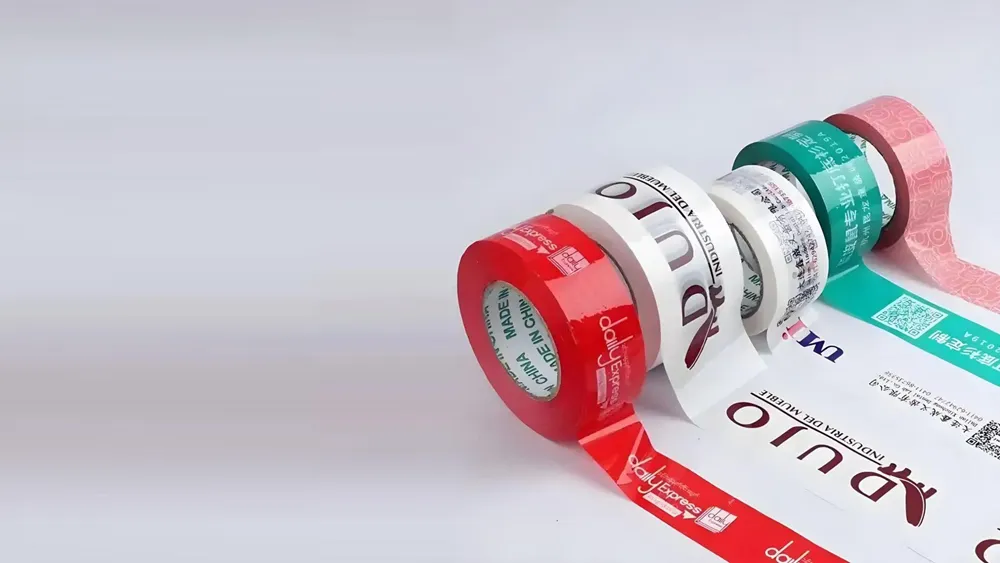

Box Bopp Tape
Industrial Transportation Tape
Frequently Asked Questions
What types of tapes can this machine print?
It is designed for BOPP packaging tape, kraft tape, industrial tape and customized adhesive tape printing.
How many colors can be printed?
The machine supports 1–3 printing units, suitable for single-color or multi-color tape printing.
What is the printing speed?
Maximum printing speed reaches 280 m/min, with mechanical speed up to 300 m/min.
Is the machine suitable for customized tape branding?
Yes, it is ideal for printing logos, brand names and custom designs on adhesive tapes.
