Technical Specifications
| Model | ZBFQ650 | ZBFQ900 |
|---|---|---|
| Max. Jumbo Roll Width | 650 mm | 900 mm |
| Max. Jumbo Roll Diameter | Φ1200 mm | |
| Max. Jumbo Roll Weight | 1500 kg | |
| Unwind Core Diameter | 3" (76 mm) & 6" (152 mm) | |
| Web Guide Sensor | Ultrasonic Sensor | |
| Web Traction System | Double Rubber Roller Traction | |
| Slitting System | Shear Slitting Circular Knife | |
| Rewinding System | Center Surface Winding | |
| Printing Type | Monochrome Printing | |
| Min. Slit Width | 25 mm | |
| Rewind Core Diameter | φ8–φ50 mm | |
| Max. Rewind Diameter | 250 mm | |
| Edge Trimming System | 3 kW Blowing Fan | |
| Max. Printing Length | 16 inch | 22 inch |
| Min. Printing Length | 8 inch | 11 inch |
| Machine Speed | Up to 180 m/min | |
| Material Thickness | 30–200 Microns | |
| Traction Motor | 30 kW | |
| Power Supply | 380V, 3P, 50Hz | |
| Air Supply | 0.6–0.8 MPa, 0.8 m³/min | |
| Optional Widths | 1000 mm / 1100 mm Available | |
Key Features of ZBFQ900 Thermal Paper Printing & Slitting Machine
- Printing and Slitting Integration: Printing and slitting are completed in one production cycle, reducing handling and improving efficiency.
- Precise Printing Registration: Supports clear printing with accurate positioning for front and back printing applications.
- Hot Air Drying System: Ensures reliable ink drying and stable print quality.
- Accurate Slitting: Provides fast production speed and clean cutting edges for finished rolls.
- Automatic Tension Control: Maintains stable web tension throughout printing and slitting operations.
- Automatic Paper Loading: Equipped with air shafts for efficient jumbo roll loading.
- Automatic Marking and Length Counting: Improves production consistency and order accuracy.
- PLC Control System: Features stepless frequency speed regulation for stable and flexible operation.
ZBFQ900 Thermal Paper Printing & Slitting Machine for Printed Receipt Roll Manufacturing
The ZBFQ900 Thermal Paper Printing & Slitting Machine is designed for converters producing printed thermal paper rolls, POS receipt rolls, ATM paper rolls and cash register paper. By combining monochrome printing, drying and slitting into one integrated production process, the machine helps manufacturers improve efficiency while reducing labor and production costs.
Many receipt roll manufacturers operate separate printing and slitting equipment, which increases handling, setup time and production costs. The ZBFQ900 integrates both processes into a single machine, helping improve workflow efficiency and finished roll consistency.
Printing and Slitting in One Pass
The machine performs printing, drying and slitting in a single production cycle, reducing material handling and improving production efficiency compared with traditional multi-step processing.
Accurate Printing Registration
The integrated printing system provides clear printing and precise positioning while supporting front and back printing applications for receipt roll production.
Hot Air Drying System
The hot air drying system helps ensure stable print quality and reliable ink drying before the slitting process.
Automatic Tension Control
Automatic tension adjustment maintains stable web handling during both printing and slitting operations, helping improve roll quality and reduce waste.
Designed for Printed Receipt Roll Production

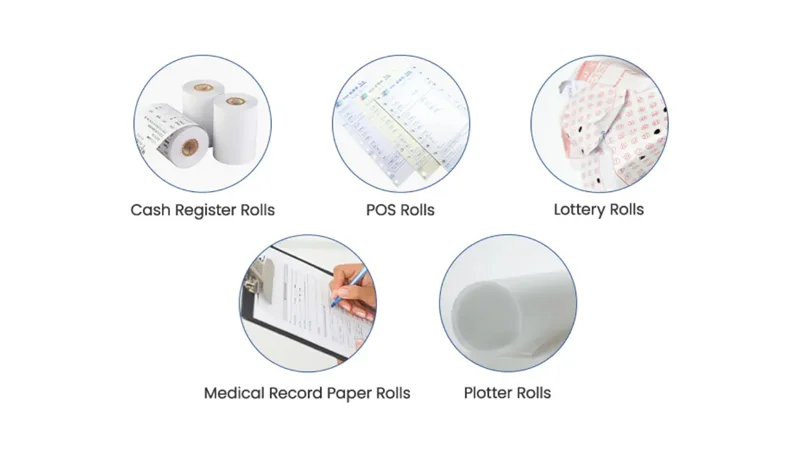

The machine is suitable for producing printed POS rolls, promotional receipt rolls, branded receipt rolls, ATM paper rolls and transaction paper products used in retail, banking and hospitality industries.
ZONBON Machinery Production Consulting
Many distributors and converters know the receipt roll products they want to produce but are unsure whether separate machines or an integrated production line is the better investment. ZONBON Machinery helps evaluate production requirements, print specifications and capacity goals to recommend the most suitable solution.
Machine Running Video
Frequently Asked Questions
What is the advantage of combining printing and slitting in one machine?
The integrated design allows printing, drying and slitting to be completed in a single production process. This reduces labor requirements, material handling, production time and factory floor space compared with using separate machines.
What types of paper can the machine process?
The machine is suitable for thermal paper, POS paper, ATM paper, cash register paper, fax paper, bond paper and other receipt roll materials commonly used in retail, banking and transaction printing industries.
Can the machine print logos and advertising information on receipt rolls?
Yes. The monochrome printing unit can print logos, promotional messages, company information, advertisements and other custom content directly onto receipt paper before slitting and rewinding.
Why do receipt roll manufacturers choose integrated printing and slitting machines?
Integrated machines help reduce production costs, improve efficiency and minimize handling errors. They are especially suitable for companies producing branded receipt rolls and promotional POS paper products.
How does the hot air drying system improve print quality?
The hot air drying system ensures stable ink drying before slitting and rewinding, helping prevent smudging, offsetting and print quality defects.
What is the maximum production speed?
The machine can operate at speeds of up to 180 m/min while maintaining accurate printing registration and stable slitting performance.
Can the machine produce different receipt roll sizes?
Yes. The machine can be configured for different finished roll widths, printing lengths, core sizes and roll diameters according to customer requirements.
What industries use printed thermal paper rolls?
Printed thermal paper rolls are widely used in supermarkets, retail stores, restaurants, banks, parking systems, ticketing systems, logistics companies and hospitality businesses.
How do I choose between the ZBFQ650 and ZBFQ900 models?
The primary difference is the maximum jumbo roll width and printing length. ZONBON Machinery can recommend the most suitable model based on your paper specifications, production volume and finished roll requirements.
Can the machine be customized?
Yes. Printing length, machine width, rewinding configuration and other production requirements can be customized according to your project needs.
How does ZONBON Machinery support distributors and converters?
Many buyers know their finished receipt roll products but are unsure whether separate printing and slitting equipment or an integrated solution is more suitable. ZONBON Machinery helps customers evaluate production goals, investment budgets and future expansion plans before recommending the right configuration.
Do you provide installation and after-sales support?
Yes. We provide factory testing, installation guidance, operator training, remote technical support, spare parts supply and long-term after-sales service to help customers maintain stable production.
