Technical Specifications
| Model | ZBAY-C180-650 | ZBAY-C180-850 | ZBAY-C180-1050 |
|---|---|---|---|
| Colors | 1–15 colors | 1–15 colors | 1–15 colors |
| Printing Width | 650 mm | 850 mm | 1050 mm |
| Material Width | 680 mm | 880 mm | 1080 mm |
| Printing Materials | BOPP, PET, CPP, PE, PVC, Nylon, Paper, Aluminum Foil | ||
| Max Printing Speed | 200 m/min | ||
| Max Mechanical Speed | 180 m/min | ||
| Register Accuracy | ±0.1 mm (Horizontal & Vertical) | ||
| Unwind/Rewind Diameter | 800 mm | ||
| Paper Core Diameter | 76 mm | ||
| Printing Cylinder Diameter | 100 – 380 mm | ||
| Power | 260 kW | 280 kW | 300 kW |
| Weight | 30000 kg | 31000 kg | 32000 kg |
| Dimensions | 25000×4500×4800 mm | 25000×4700×4800 mm | 25000×4900×4800 mm |
Heat Transfer Rotogravure Printing Machine for Film, Textile and Plastic Decoration
The ZBAY-C180 rotogravure printing machine is specially designed for heat transfer printing applications, including textile transfer films, plastic surface decoration, and industrial transfer printing processes. It supports both MLS and ELS configurations, providing flexible solutions for different production needs.
With a printing speed of up to 200 m/min and support for 1 to 15 printing units, this machine enables high-efficiency multi-color printing with stable register accuracy and consistent output quality.
Wide Material Compatibility
This machine supports a wide range of substrates such as BOPP, PET, CPP, PE, PVC, nylon films, paper and aluminum foil, making it highly adaptable for heat transfer production lines.
Designed for Heat Transfer Applications
It is widely used in printing transfer films for textiles, footwear, plastic products, metal surfaces, and packaging applications where high-quality decorative transfer is required.
Flexible Configuration for Different Industries
The machine can be customized with different widths, printing units, and automation levels, allowing manufacturers to match their specific heat transfer production requirements.
Applications in Heat Transfer Printing Industry
The ZBAY-C180 rotogravure printing machine is widely used for heat transfer film production and decorative printing across multiple industries.
-
Textile & Fabric Heat Transfer
Used for printing transfer films applied to garments, sportswear, and fabrics. -
Footwear & Slippers Printing
Applied in decorative transfer printing for shoes and slippers. -
Plastic Product Decoration
Suitable for plastic containers, toys, automotive parts, and daily-use products. -
Metal & Wood Surface Transfer
Used for decorative transfer printing on metal panels and wood veneer surfaces. -
Packaging & Industrial Transfer Films
Supports printing for protective films, labels, and industrial applications. -
Water Bottles & Consumer Goods
Used for high-quality decoration of bottles, stationery, and household products.
Heat Transfer - Textiles/Fabrics

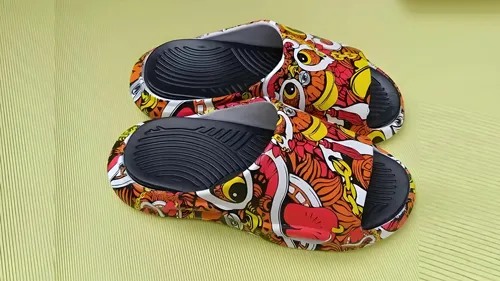

Heat transfer-slippers
Wood Veneer Metal Heat Transfer Printing

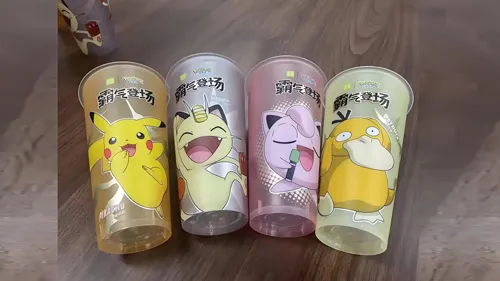

Injection Molded Film Lamination
Heat transfer oil drum

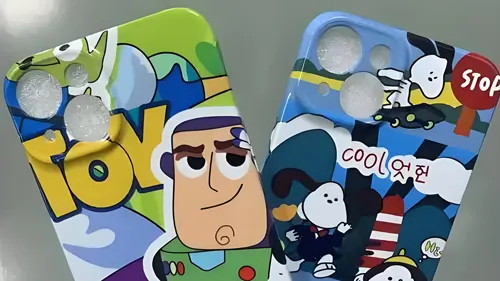

Heat Transfer Printing on Plastic Products
Heat transfer water bottle
Heat transfer toys / Car accessories

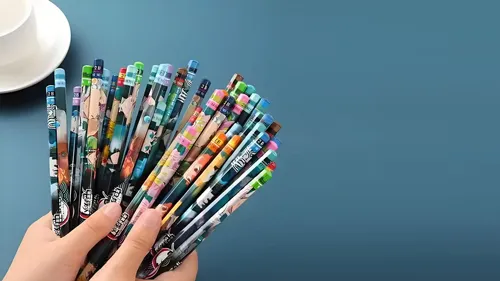

Heat Transfer Stationery
Frequently Asked Questions
What industries use heat transfer printing machines?
They are widely used in textiles, footwear, plastic products, automotive parts, and packaging industries.
Can this machine print on aluminum foil?
Yes, it supports aluminum foil, films, and paper substrates.
How many colors can it print?
The machine supports up to 15 printing units for complex multi-color designs.
Is customization available?
Yes, machine width, speed, and configuration can be customized according to your production needs.
