Technical Specifications

Model ZB230-ELS/MLS-850 ZB230-ELS/MLS-1050
Colors 8 Colors
Printing Width 850 mm 1050 mm
Material Width 880 mm 1080 mm
Printing Material 25–150 g/m² Paper
Max Printing Speed 230 m/min
Max Mechanical Speed 260 m/min
Register Accuracy ±0.1 mm
Unwind/Rewind Diameter 800 mm
Paper Core Diameter 76 mm
Printing Cylinder Diameter 100–380 mm
Power 260kW / 230kW 280kW / 250kW
Weight 28000 kg 30000 kg
Dimensions 20000×4500×3600 mm 20000×4700×3600 mm

Machine Configurations

Unwind and rewind unit of rotogravure printing machine

Unwind & Rewind Unit

  • Dual Shaft Structure: Double shafts driven by dual motors allow easy operation and faster roll change.
  • Automatic Alarm: Alarm system alerts the operator when the roll reaches preset limits or the web ends.
  • Closed Loop Tension Control: Dancer tension control automatically detects roll diameter and adhesive position for stable web tension.
  • Stable Rewinding: Closed-loop taper tension control with nip roll ensures consistent roll surface quality.
Gravure printing unit with servo driven plate cylinder

Printing Unit

  • Independent Servo Drive: Each plate cylinder is installed with shaftless pneumatic chuck and driven by an independent servo motor.
  • Stable Ink Delivery: Ink metering roller ensures stable ink supply and prevents ink splashing at high speeds.
  • Chambered Doctor Blade: Doctor blade can move left/right, up/down and forward/backward with adjustable frequency.
  • Service Trolley: Ink feeding trolley with diaphragm pump supports efficient ink circulation.
Automatic register control system for rotogravure printing machine

Register System

  • Siemens Register Control: Integrated register system ensures precise color registration during high-speed printing.
  • Independent Operator Screens: Each printing unit has an individual control interface for monitoring register status.
  • Fast Correction: Quick digital adjustment allows rapid correction of printing registration errors.
  • Memory Function: Register position memory enables fast plate positioning and quick job changeovers.

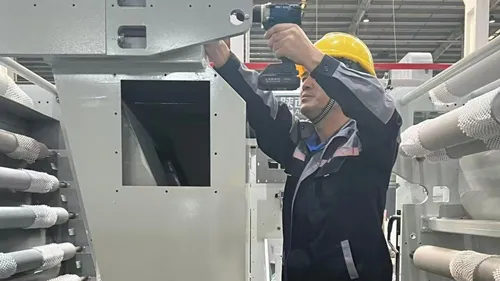

High efficiency drying system for gravure printing machine

Drying System

  • High Drying Efficiency: Designed to minimize solvent retention and maintain stable drying performance.
  • Intelligent Temperature Control: Automatic temperature control with air recirculation reduces energy consumption.
  • Multiple Heating Options: Electric heating, steam heating and heat transfer oil heating are available.
  • Water-Based Ink Compatibility: Adaptable to water-based printing processes used in flexible packaging.
Cooling system with aluminum alloy cooling roller for gravure press

Cooling System

  • Aluminum Alloy Cooling Roller: Low inertia roller designed for efficient forced water circulation cooling.
  • High Stability Bearings: Double-row self-aligning roller bearings support smooth roller operation.
  • Water Recirculation: Overflow cooling water is automatically recycled to improve efficiency.
  • Large Contact Surface: Extended cooling area increases cooling efficiency during high-speed printing.
Product Description

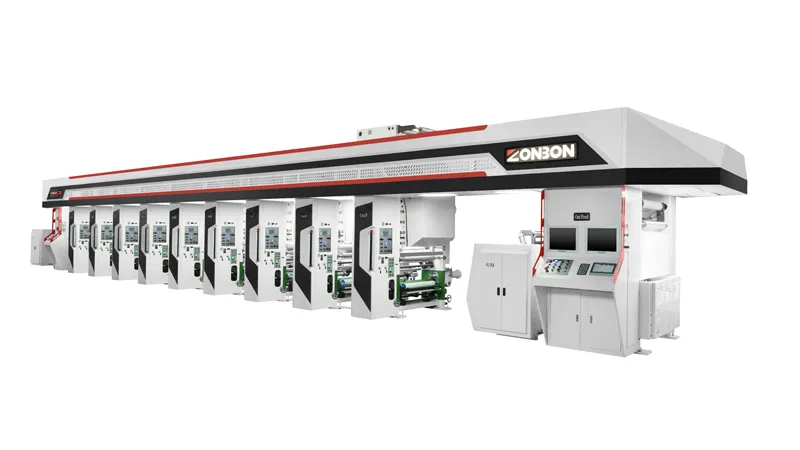

High-Speed Tipping Paper Gravure Printing Machine for Cigarette Packaging

The ZB230 ELS tipping paper gravure printing machine is designed for high-speed, high-precision printing of cigarette tipping paper and related packaging materials. With advanced electronic shaft (ELS) technology, the machine ensures stable performance and superior register accuracy at high production speeds.

Electronic Shaft (ELS) Drive System

Each printing unit is independently driven by a servo motor, ensuring precise synchronization and eliminating mechanical transmission limitations.

High-Speed Production Performance

With a maximum printing speed of 230 m/min, the machine is ideal for large-scale cigarette packaging production.

Precision Register Control

Equipped with Siemens automatic register system, achieving ±0.1mm register accuracy, ensuring high-quality printing results.

Stable Ink & Printing System

Chamber doctor blade and ink circulation system provide consistent ink transfer and stable printing performance.

Designed for Tipping Paper Industry

Suitable for cigarette tipping paper, paper-aluminum composite materials, and high-end tobacco packaging applications.

Product Applications

Applications in Tipping Paper & Cigarette Packaging

  • Cigarette Tipping Paper Printing
  • Tobacco Packaging Materials
  • Paper-Aluminum Composite Materials
  • High-End Cigarette Packaging
FAQ: Tipping Paper Gravure Printing Machine

Frequently Asked Questions

What materials can be printed?

25–150g/m² tipping paper and composite materials.

What is the printing speed?

Up to 230 m/min.

What is the register accuracy?

±0.1mm.

Is it suitable for cigarette packaging?

Yes, it is specially designed for tipping paper printing.

Can it be customized?

Yes, width and configuration can be customized.
