Technical Specifications

Model ZBAY-LX100-650 ZBAY-LX100-850 ZBAY-LX100-1050
Colors 1–6 colors 1–6 colors 1–6 colors
Printing Width 650 mm 850 mm 1050 mm
Material Width 680 mm 880 mm 1080 mm
Printing Materials PE, LDPE, HDPE, LLDPE Films
Max Printing Speed 100 m/min
Max Mechanical Speed 100 m/min
Register Accuracy ±0.1 mm Horizontal & Vertical
Printing Cylinder Diameter 100 – 380 mm
Power 20 – 120 kW
Product Description

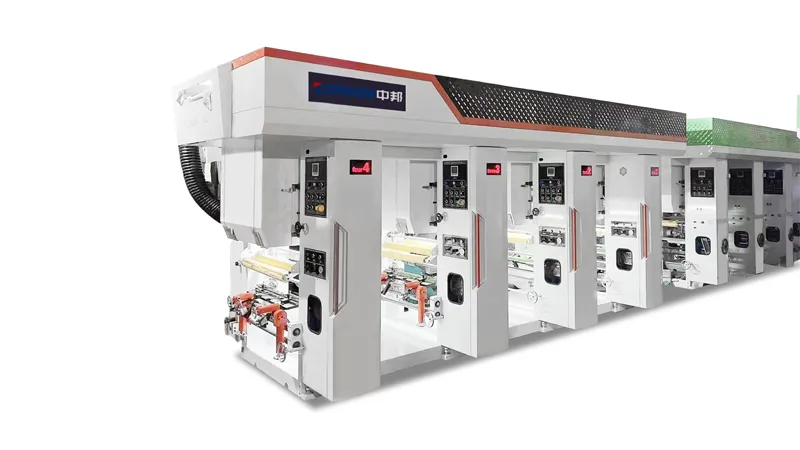

Economic MLS Rotogravure Printing Machine for Plastic Film and Bag Production

The ZBAY-LX100 MLS rotogravure printing machine is designed as an economical and reliable solution for plastic film and bag printing applications. With a printing speed of up to 100 m/min, it is ideal for small to medium production lines requiring stable performance and cost-effective investment.

This machine uses a gear-driven transmission system combined with precise register control, ensuring consistent print quality while maintaining simple operation and low maintenance requirements.

Designed for Plastic Film Printing

The machine is optimized for printing PE, LDPE, HDPE and LLDPE films widely used in plastic bag manufacturing, including shopping bags, vest bags and takeout packaging bags.

Flexible Configuration for Different Production Needs

Available in 1 to 6 printing units and multiple web widths, the machine can be configured to meet different production capacities and printing requirements.

Cost-Effective Entry-Level Gravure Solution

Compared with high-speed ELS systems, the ZBAY-LX100 MLS provides a lower investment option while still delivering stable printing quality and reliable operation for growing packaging businesses.

Product Applications

Applications in Plastic Film and Bag Printing Industry

The ZBAY-LX100 MLS rotogravure printing machine is widely used for printing plastic films used in bag making and flexible packaging production lines.

  • Vest Bag (T-Shirt Bag) Printing
    Suitable for printing PE vest bags widely used in supermarkets and retail packaging.
  • Shopping Bag and Takeout Bag Printing
    Used for printing plastic shopping bags and food takeaway packaging bags.
  • Milk Tea and Beverage Bag Printing
    Applicable for printing beverage packaging films and milk tea carry bags.
  • Flexible Packaging Film Printing
    Supports printing of PE films used in general packaging applications.
  • Industrial Plastic Bag Production
    Designed for industrial packaging bags and transport packaging films.
FAQ: ZBAY-LX100 MLS Rotogravure Printing Machine

Frequently Asked Questions

Is this machine suitable for beginners or small factories?

Yes, it is designed as an entry-level gravure printing machine with simple operation and lower investment cost.

What materials can it print?

It is mainly used for PE, LDPE, HDPE and LLDPE films used in plastic bag production.

What is the maximum printing speed?

The maximum printing speed is 100 m/min.

How many colors can be printed?

The machine supports 1 to 6 printing units depending on requirements.
