Technical Specifications
| Model | ZBAY-C180-850 | ZBAY-C180-1050 | ZBAY-C180-1250 |
|---|---|---|---|
| Colors | 8 colors | 8 colors | 8 colors |
| Printing Width | 850 mm | 1050 mm | 1250 mm |
| Material Width | 880 mm | 1080 mm | 1280 mm |
| Printing Materials | BOPP, PET, CPP, PE, PVC, Nylon, Paper | ||
| Max Printing Speed | 200 m/min | ||
| Max Mechanical Speed | 180 m/min | ||
| Register Accuracy | ±0.1 mm Horizontal & Vertical | ||
| Unwind / Rewind Diameter | 600 mm | ||
| Paper Core Diameter | 76 mm | 76 mm | 76 mm |
| Printing Cylinder Diameter | 100 – 380 mm | ||
| Power | 160 kW | 180 kW | 200 kW |
| Weight | 20000 kg | 21000 kg | 22000 kg |
| Dimension | 15000 × 3500 × 3300 mm | 15000 × 3700 × 3300 mm | 15000 × 3900 × 3300 mm |
Machine Configurations

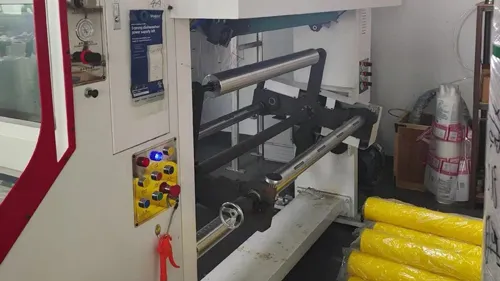

Unwind & Rewind Unit
- Double Shaft Design: Equipped with double shafts driven by dual motors, facilitating easier operation and faster roll replacement.
- Automatic Roll End Alarm: The system automatically alarms when the web reaches preset limits or the roll is finished, allowing operators to quickly change rolls.
- Dancer Closed Loop Tension Control: Roll diameter and adhesive position are automatically detected to maintain stable web tension during printing.
- Stable Rewinding Control: Closed loop taper tension control combined with nip rollers maintains consistent web tension and ensures smooth roll surface quality.
Printing Unit

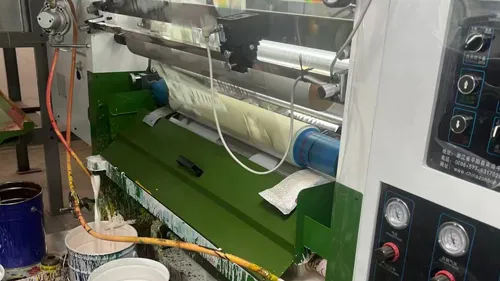

- Servo Driven Plate Cylinder: Plate cylinders are installed with shaftless pneumatic chuck systems and driven by independent servo motors.
- Ink Metering Roller System: Each printing unit is equipped with an ink metering roller to ensure stable ink flow and prevent ink splashing during high-speed operation.
- Teflon Coated Components: Side shields and ink fountains are coated with Teflon to reduce ink adhesion and simplify cleaning.
- Compensation Roller Structure: Impression cylinder works together with guide rollers to minimize variation of web length during vertical movement.
- Chamber Doctor Blade System: The doctor blade can move left-right, up-down and forward-backward, with independently driven motor and adjustable frequency.
- Ink Supply Trolley: Equipped with service trolley and diaphragm pump for efficient ink feeding and ink circulation.
Register System
- Siemens Integrated Register System: Advanced register control ensures accurate color registration during high-speed printing.

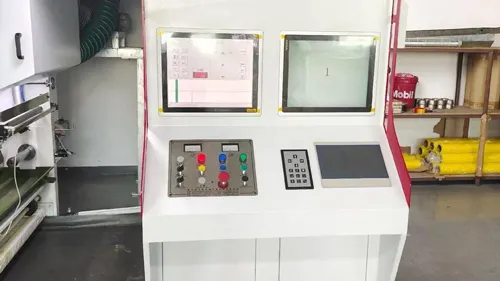

- Independent Operator Interface: Each printing unit is equipped with its own control screen for real-time monitoring of printing registration.
- Fast Digital Correction: Operators can quickly modify digital parameters to correct printing registration errors.
- Register Memory Function: The system stores previous register positions to allow fast positioning and quick job changeovers.
- Pre-Register Function: Enables automatic pre-registration of new printing plates to reduce setup time.
Drying System

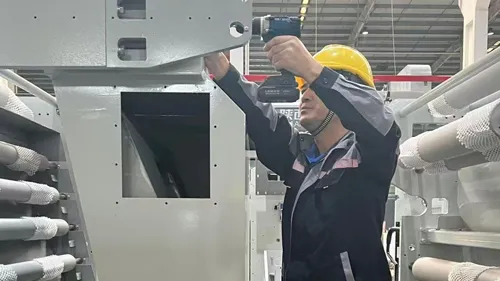

- High Efficiency Drying: Designed for high drying efficiency with low solvent retention to ensure stable printing quality.
- Intelligent Temperature Control: Automatic continuous temperature control with hot air recirculation minimizes energy consumption.
- Multiple Heating Options: Supports electric heating, steam heating and heat transfer oil heating to meet different production requirements.
- Water-Based Ink Compatibility: Drying structure fully supports modern water-based printing processes used in flexible packaging.
Cooling System

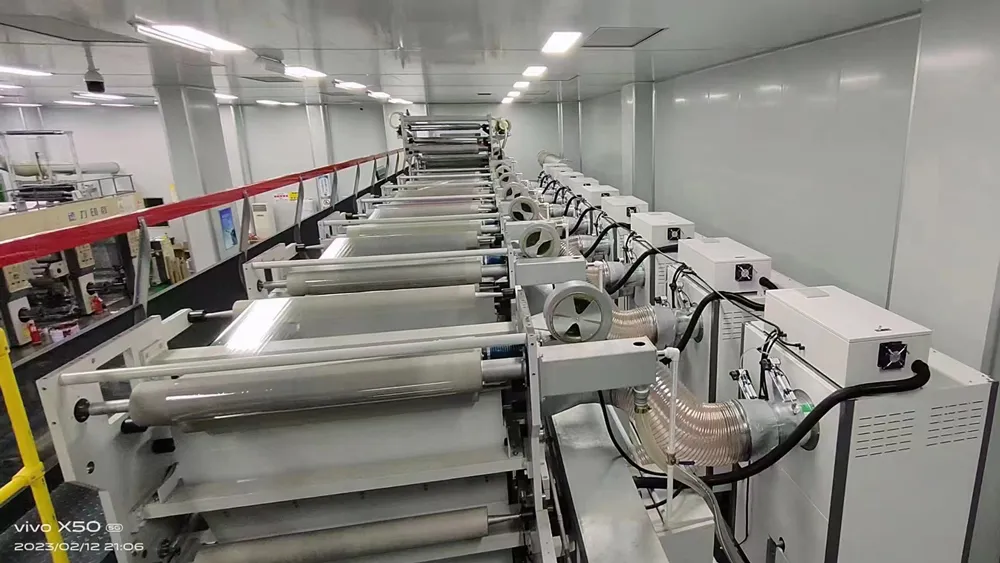

- Aluminum Alloy Cooling Roller: Low inertia aluminum alloy rollers provide efficient forced water circulation cooling.
- Self-Aligning Bearing Support: Both ends of the cooling roller are supported by double-row self-aligning roller bearings for stable rotation.
- Automatic Water Recirculation: Overflow cooling water is automatically recycled to improve cooling efficiency.
- Large Cooling Surface: Extended contact angle and cooling area provide higher cooling efficiency during high-speed printing.
High Speed MLS Rotogravure Printing Machine for Flexible Packaging
The ZBAY-C180 MLS rotogravure printing machine is designed for high-efficiency flexible packaging printing production. The machine supports configuration from 1 to 15 printing units and operates at printing speeds up to 200 m/min, making it suitable for medium and large scale packaging converters.
Each printing cylinder is driven by a gear transmission system while maintaining precise color register control through the Siemens integrated register system. This design ensures stable printing quality and reliable performance during continuous high-speed operation.
Wide Material Compatibility
The machine supports a wide range of flexible packaging materials including BOPP, PET, CPP, nylon, PE, PVC, paper and aluminum foil. It is widely used for food packaging bags, shopping bags, shrink sleeve labels and various laminated packaging structures.
Efficient Production Performance
With mechanical speeds up to 180 m/min and printing speeds up to 200 m/min, the ZBAY-C180 MLS gravure press enables stable high-volume production while maintaining precise registration accuracy of ±0.1 mm.
Flexible Machine Configuration
Standard machine widths include 850 mm, 1050 mm and 1250 mm, while custom widths up to 2500 mm can be engineered based on production requirements. Additional automation systems such as automatic roll change, online inspection and ink viscosity control can also be integrated.
Applications in Flexible Packaging Gravure Printing
The ZBAY-C180 MLS rotogravure printing machine is widely used for high-speed printing of flexible packaging materials in industries such as food packaging, cosmetics packaging, consumer goods packaging and industrial packaging.
-
Food, Cosmetics and Detergent Packaging
Suitable for printing snack bags, cosmetic pouches and detergent packaging films. -
Beverage Labels and Transfer Films
Used for beverage labels, shrink sleeve labels and transfer film printing applications. -
Paper Packaging Products
Applicable for printing paper plates, paper cups, paper boxes, cartons and kraft paper bags. -
Medical and Hygiene Packaging
Suitable for medical packaging materials, hygiene product packaging and diaper wet bag films. -
E-commerce and Industrial Packaging
Designed for courier bags, clothing express packaging, woven bags and industrial packaging materials.
