Technical Specifications

Model ZB300-ELS-1350 ZB300-ELS-1650 ZB300-ELS-2050
Colors 8 colors 8 colors 8 colors
Printing Width 1350 mm 1650 mm 2050 mm
Material Width 1380 mm 1680 mm 2080 mm
Printing Materials Wood Grain Paper, PP, PVC Decorative Materials
Max Printing Speed 280 m/min
Max Mechanical Speed 300 m/min
Register Accuracy ±0.1 mm Horizontal & Vertical
Unwind / Rewind Diameter 1100 mm
Paper Core Diameter 76 / 152 mm
Printing Cylinder Diameter 250 – 450 mm
Power 180 kW 200 kW 220 kW
Weight 53000 kg 55000 kg 60000 kg
Dimension 26000 × 4500 × 4200 mm 26000 × 4800 × 4200 mm 26000 × 5200 × 4200 mm

Machine Configurations

Unwind and rewind unit of ZB300-ELS decorative rotogravure printing machine

Unwind & Rewind Unit

  1. Double Shaft Design: Dual motor driven shafts for fast roll change and efficient operation.
  2. Automatic Alarm System: Alerts when roll ends or reaches preset diameter.
  3. Dancer Tension Control: Closed-loop system ensures stable web tension.
  4. Stable Rewinding: Taper tension control with nip roll ensures smooth winding quality.
Printing unit of ZB300-ELS decorative rotogravure printing machine

Printing Unit

  1. Servo Driven Cylinder: Independent servo motor drive for each printing unit.
  2. Stable Ink Supply: Ink metering roller prevents splashing at high speed.
  3. Teflon Coating: Reduces ink adhesion and improves cleaning efficiency.
  4. Doctor Blade System: Multi-direction adjustable chamber doctor blade.
  5. Ink Circulation: Diaphragm pump with ink trolley for stable ink flow.
Register system of ZB300-ELS decorative rotogravure printing machine

Register System

  1. Siemens Register Control: Ensures precise multi-color alignment.
  2. Independent Screens: Each unit has its own control interface.
  3. Fast Adjustment: Digital correction for quick register tuning.
  4. Memory Function: Saves register position for quick job switching.
Drying system of ZB300-ELS decorative rotogravure printing machine

Drying System

  1. High Efficiency Drying: Low solvent residue and stable drying.
  2. Temperature Control: Intelligent system with air circulation.
  3. Flexible Heating: Electric, steam or thermal oil heating options.
Cooling system of ZB300-ELS decorative rotogravure printing machine

Cooling System

  1. Aluminum Cooling Roller: Efficient water circulation cooling.
  2. Stable Bearings: Self-aligning roller bearings ensure smooth operation.
  3. High Efficiency Cooling: Large contact area improves cooling performance.

Product Description

ELS Rotogravure Printing Machine for Decorative Materials

The ZB300-ELS rotogravure printing machine is specifically designed for high-quality decorative material printing, including wood grain paper, PVC decorative film and PP film. It adopts electronic line shaft (ELS) servo drive technology to ensure precise synchronization and stable high-speed printing performance.

With a maximum mechanical speed of 300 m/min and printing speed up to 280 m/min, the machine delivers excellent productivity while maintaining accurate color registration for complex decorative patterns such as marble, wood textures and flooring designs.

Designed for Decorative Printing Industry

This machine is widely used in industries such as furniture panels, laminate flooring, wall panels and interior decoration materials. It supports high-resolution pattern reproduction required for decorative surfaces.

Servo Driven Precision Printing

Each gravure cylinder is independently driven by a servo motor, eliminating mechanical transmission limitations and enabling precise control of print repeat and register accuracy.

Wide Width Customization Capability

Standard machine widths range from 1350 mm to 2050 mm, with customization available up to 2900 mm, making it suitable for large-format decorative material production.

Product Applications

Applications in Decorative Materials Printing Industry

The ZB300-ELS rotogravure printing machine is widely used for printing decorative materials such as wood grain paper, PVC films and PP decorative surfaces used in furniture, flooring and architectural decoration.

  • Wood Grain Decorative Paper
    Used for printing wood texture designs for furniture panels, laminate boards and interior decoration materials.
  • PVC Decorative Films
    Suitable for printing PVC films used in wall panels, flooring surfaces and decorative laminates.
  • PP Decorative Materials
    Applied for printing PP-based decorative films used in home furnishing and industrial decoration applications.
  • Marble and Tile Pattern Printing
    Designed for high-resolution printing of marble, stone and tile textures used in architectural decoration.
  • Furniture and Interior Surface Materials
    Used for decorative surface printing for cabinets, doors, flooring and interior design panels.

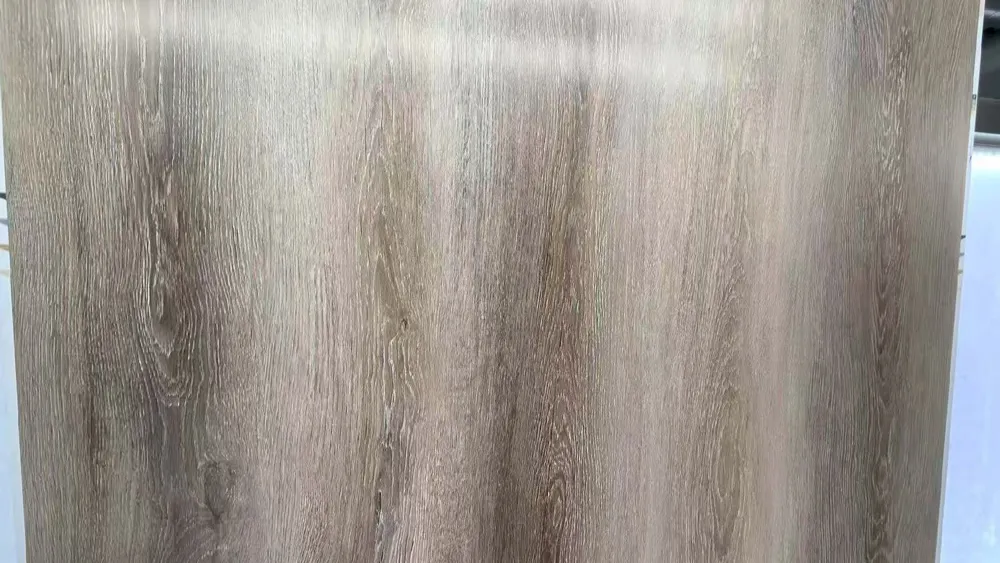

Decorative paper and film used for marble, tiles, furniture, and flooring

Decorative paper and film used for marble, tiles, furniture, and flooring
Decorative paper and film used for marble, tiles, furniture, and flooring
Decorative paper and film used for marble, tiles, furniture, and flooring

FAQ: ZB300-ELS Decorative Rotogravure Printing Machine

Frequently Asked Questions

What materials is this machine designed for?

It is designed for decorative materials such as wood grain paper, PVC films and PP decorative sheets used in furniture and interior applications.

What is the maximum printing speed?

The maximum printing speed is 280 m/min with a mechanical speed of up to 300 m/min.

How many printing units are available?

The machine can be configured from 1 to 8 printing units depending on production requirements.

What industries use this machine?

It is widely used in furniture manufacturing, flooring production, decorative panels and architectural material printing industries.
