Technical Specifications
| Parameter | ZB400-ELS-850 | ZB400-ELS-1050 | ZB400-ELS-1250 |
|---|---|---|---|
| Colors | 8 Colors | 8 Colors | 8 Colors |
| Printing Width | 850 mm | 1050 mm | 1250 mm |
| Material Width | 880 mm | 1080 mm | 1280 mm |
| Printing Materials | BOPP, PET, CPP, PE, PVC, Nylon, Paper | ||
| Max Printing Speed | 380 m/min | ||
| Max Mechanical Speed | 400 m/min | ||
| Register Accuracy | ±0.1 mm Horizontal and Vertical | ||
| Unwind / Rewind Diameter | 800 mm | ||
| Paper Core Diameter | 76 mm | 76 mm | 76 mm |
| Printing Cylinder Diameter | 120 – 350 mm | ||
| Power | 330 kW | 360 kW | 390 kW |
| Weight | 38000 kg | 41000 kg | 44000 kg |
| Dimension | 22000 × 4500 × 4100 mm | 22000 × 4700 × 4100 mm | 22000 × 4900 × 4100 mm |
Machine Configurations
Unwind & Rewind Unit
- Dual Shaft Structure: Double shafts driven by dual motors allow easy operation and faster roll change.
- Automatic Alarm: Alarm system alerts the operator when the roll reaches preset limits or the web ends.
- Closed Loop Tension Control: Dancer tension control automatically detects roll diameter and adhesive position for stable web tension.
- Stable Rewinding: Closed-loop taper tension control with nip roll ensures consistent roll surface quality.
Printing Unit
- Independent Servo Drive: Each plate cylinder is installed with shaftless pneumatic chuck and driven by an independent servo motor.
- Stable Ink Delivery: Ink metering roller ensures stable ink supply and prevents ink splashing at high speeds.
- Chambered Doctor Blade: Doctor blade can move left/right, up/down and forward/backward with adjustable frequency.
- Service Trolley: Ink feeding trolley with diaphragm pump supports efficient ink circulation.
Register System
- Siemens Register Control: Integrated register system ensures precise color registration during high-speed printing.
- Independent Operator Screens: Each printing unit has an individual control interface for monitoring register status.
- Fast Correction: Quick digital adjustment allows rapid correction of printing registration errors.
- Memory Function: Register position memory enables fast plate positioning and quick job changeovers.
Drying System
- High Drying Efficiency: Designed to minimize solvent retention and maintain stable drying performance.
- Intelligent Temperature Control: Automatic temperature control with air recirculation reduces energy consumption.
- Multiple Heating Options: Electric heating, steam heating and heat transfer oil heating are available.
- Water-Based Ink Compatibility: Adaptable to water-based printing processes used in flexible packaging.
Cooling System
- Aluminum Alloy Cooling Roller: Low inertia roller designed for efficient forced water circulation cooling.
- High Stability Bearings: Double-row self-aligning roller bearings support smooth roller operation.
- Water Recirculation: Overflow cooling water is automatically recycled to improve efficiency.
- Large Contact Surface: Extended cooling area increases cooling efficiency during high-speed printing.
High-Speed Electronic Line Shaft Rotogravure Printing Machine

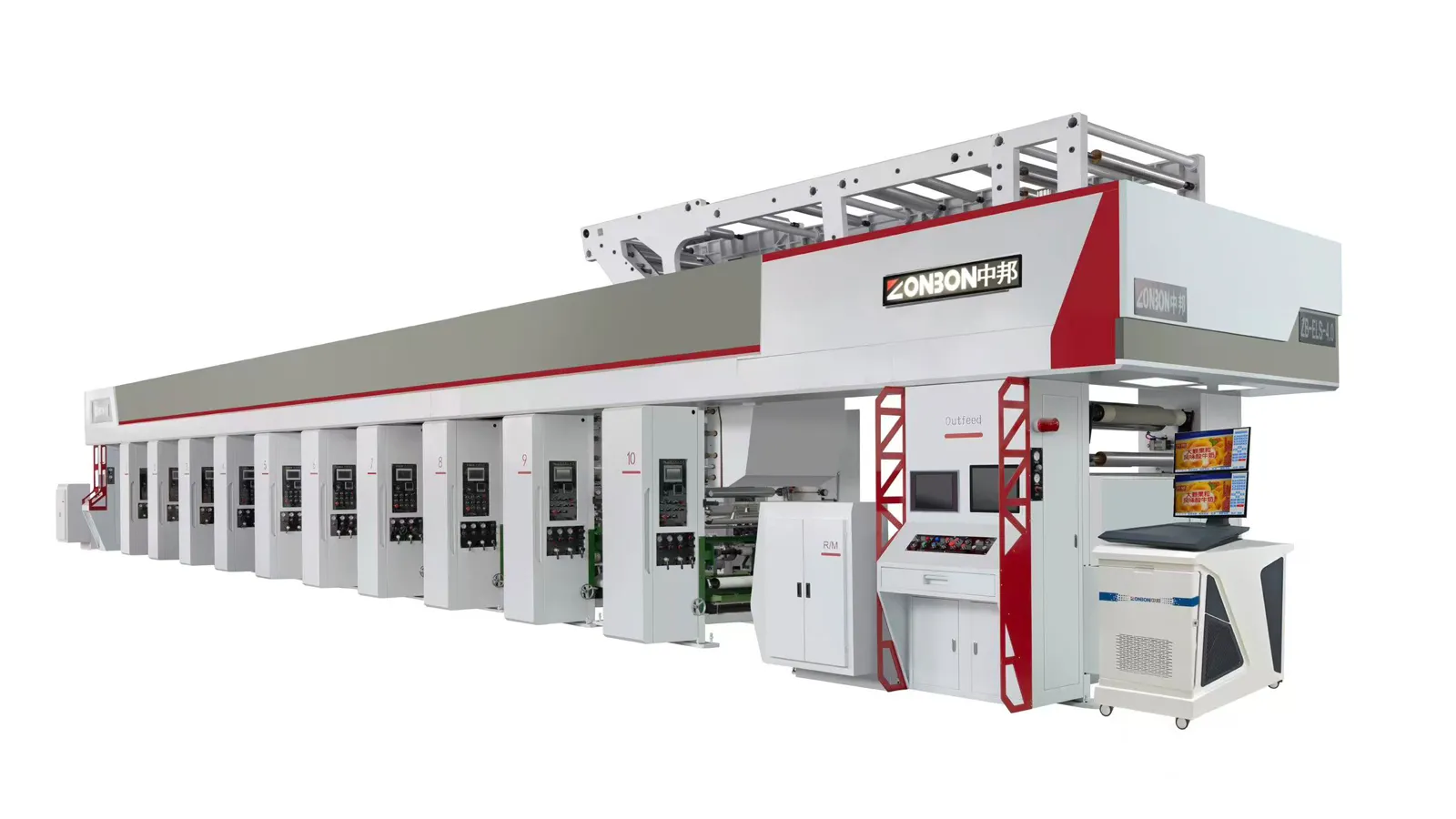

The ZB400-ELS rotogravure printing machine is a high-performance electronic line shaft gravure printing press designed for large-scale flexible packaging production. Each gravure cylinder is independently driven by servo motors, ensuring accurate synchronization and stable operation at high speed.
With a maximum mechanical speed of 400 m/min and printing speed up to 380 m/min, the machine provides high production efficiency while maintaining precise color registration for complex packaging designs.
Independent Servo Driven Printing Units
The electronic line shaft system allows each printing unit to operate independently while remaining synchronized with the entire production line. This improves printing accuracy and reduces mechanical transmission loss.
Advanced Register Control System
The Siemens integrated register system enables fast digital adjustment, automatic pre-register and memory storage of register positions, allowing faster job changeovers and reduced setup time.
Efficient Drying and Cooling Systems
The machine includes an intelligent drying system with air recirculation and multiple heating options including electric heating, steam heating and heat transfer oil heating. The aluminum alloy cooling rollers ensure stable substrate temperature during high-speed printing.
Designed for Flexible Packaging Manufacturing
The ZB400-ELS rotogravure printing press is suitable for printing flexible films, paper packaging materials and aluminum foil used in food packaging, consumer goods packaging, medical packaging and industrial packaging production.
Applications in High-Speed Flexible Packaging Gravure Printing
The ZB400-ELS rotogravure printing machine is designed for high-speed printing of flexible packaging materials used in modern packaging production. The electronic line shaft drive system enables stable high-speed operation while maintaining precise color registration for complex multi-color packaging designs.
-
Food, Cosmetic and Detergent Packaging
Suitable for printing snack packaging films, daily chemical packaging and detergent pouches. -
Beverage Labels and Transfer Films
Used for beverage labels, shrink sleeve labels and transfer film applications requiring high print quality. -
Paper Packaging Products
Applicable for paper plates, paper boxes, cartons, paper cups and kraft paper bags. -
Medical and Hygiene Packaging
Suitable for medical packaging materials, diaper wet bags and hygiene product packaging. -
E-commerce and Industrial Packaging
Used for courier bags, clothing express packaging, woven bags and industrial transportation packaging materials. -
Food Packaging & Cosmetics Packaging & Detergent Packaging
Designed for high-quality printing on flexible films used for food pouches, cosmetic sachets, and household detergent bags, ensuring vibrant colors and excellent resistance to chemical contents.
Food Packaging & Cosmetics Packaging & Detergent Packaging
Beverage Labels
Paper Food Containers
Medical Packaging
Diaper Wet Bags
Clothing Express Packaging
E-commerce Packaging
Industrial Transportation
Non-woven Bag
Woven Bag packaging
Architecture & Decoration
Toys & Cars
Machine Running Video
Frequently Asked Questions
What is an electronic line shaft rotogravure printing machine?
An electronic line shaft gravure press uses independent servo motors to drive each gravure cylinder, replacing traditional mechanical shaft systems while improving speed stability and printing precision.
What is the maximum speed of the ZB400-ELS machine?
The machine has a maximum mechanical speed of 400 m/min and a maximum printing speed of 380 m/min.
What materials can this machine print?
The machine supports BOPP, PET, CPP, PE, PVC, nylon films, paper and aluminum foil used in flexible packaging production.
How many printing units can the machine have?
The ZB400-ELS series can be configured with 1 to 15 printing units depending on production requirements.
What industries commonly use this machine?
The machine is widely used in food packaging, cosmetics packaging, detergent packaging, beverage labels, medical packaging and industrial packaging production lines.
