Technical Specifications
| Parameter | ZBR120A-600 | ZBR120A-800 | ZBR120A-1000 | ZBR120A-1200 |
|---|---|---|---|---|
| Max. Web Width | 650 mm | 850 mm | 1050 mm | 1250 mm |
| Max. Printing Width | 560 mm | 760 mm | 960 mm | 1160 mm |
| Max. Machine Speed | 120 m/min | |||
| Max. Printing Speed | 100 m/min | |||
| Max. Unwind / Rewind Diameter | Φ600 mm | |||
| Drive Type | Synchronous Belt Drive | |||
| Ink Type | Water Based Ink or Solvent Ink | |||
| Printing Length (Repeat) | 285 – 1300 mm | |||
| Substrate Range | LDPE / LLDPE / HDPE / BOPP / CPP / PET / Nylon | |||
| Electrical Supply | 380V · 50Hz · 3PH | |||
Stack Flexo Printing Machine for Flexible Packaging and Bag Printing
The ZBR120A stack flexographic printing machine is designed for efficient roll-to-roll printing of flexible substrates such as plastic films, paper and non-woven materials. The stack configuration allows multiple printing units to be arranged vertically, providing flexible color printing configurations and compact machine layout.
With a maximum machine speed of 120 m/min and printing speed up to 100 m/min, the ZBR120A series is ideal for packaging manufacturers producing plastic bags, food packaging films and non-woven shopping bags.
Efficient Vertical Stack Printing Structure
In a stack flexo printing machine, the printing units are arranged vertically, allowing flexible configuration of 4, 6, 8 or 10 colors. This structure helps optimize machine footprint while maintaining stable printing performance.
Reliable Ink Transfer and Drying System
Each printing unit is equipped with an anilox roller, doctor blade system and plate cylinder to ensure accurate ink transfer. The drying system quickly dries the printed ink to prevent smudging during high-speed printing.
Flexible Production for Packaging Manufacturers

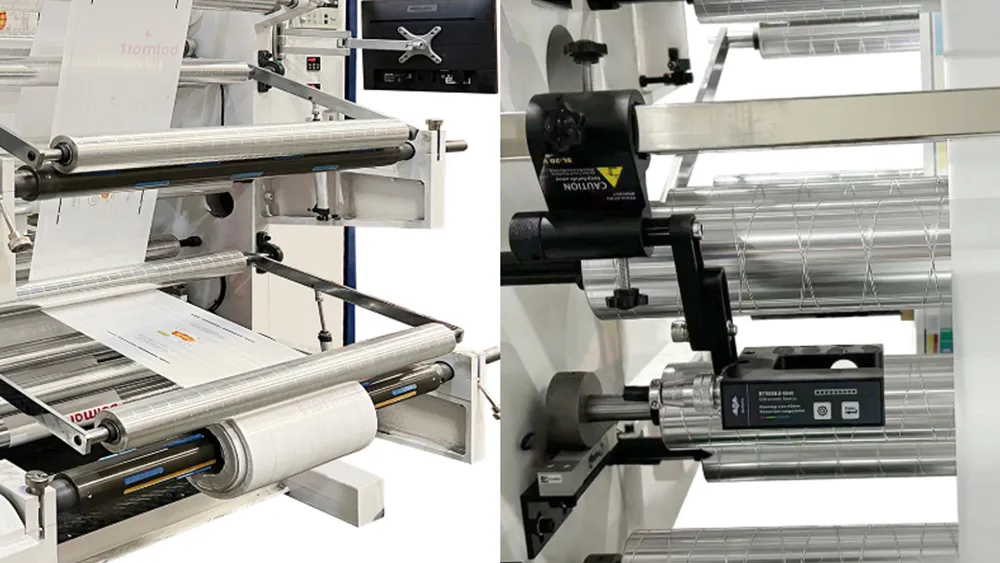

The machine includes double unwinding and rewinding units, automatic tension control and optional EPC web guiding systems. These features improve production stability and reduce material waste during long production runs.
Wide Range of Packaging Applications
The ZBR120A stack flexo printing press is widely used for printing plastic shopping bags, bread bags, courier packaging, non-woven bags, food packaging films and wrapping paper.
Applications in Flexible Packaging Printing
The ZBR120A stack flexographic printing machine is designed for roll-to-roll printing of flexible packaging materials such as plastic films, paper and non-woven fabrics. It is widely used in packaging production that requires efficient printing, stable color registration and flexible short to medium production runs.
-
Food Packaging Films
Suitable for printing snack packaging films, bread packaging bags and food wrapping materials. -
Beverage Labels and Flexible Film Packaging
Used for beverage labels, packaging films and promotional packaging materials requiring clear printing. -
Paper Packaging and Wrapping Paper
Applicable for printing gift wrapping paper, food wrapping paper and paper packaging materials. -
Non-Woven Bag Printing
Suitable for printing non-woven bags used in shopping bags, promotional bags and retail packaging. -
Plastic Shopping Bags and Courier Packaging
Designed for printing vest bags, T-shirt bags, courier bags and e-commerce packaging bags. -
Food Packaging & Cosmetics Packaging & Detergent Packaging
Designed for high-quality printing on flexible films used for food pouches, cosmetic sachets, and household detergent bags, ensuring vibrant colors and excellent resistance to chemical contents.
Food Packaging & Cosmetics Packaging & Detergent Packaging
Beverage Labels
Diaper Wet Bags
Courier Packaging
Non Woven Bag
T-Shirt Bag
Bread Bag
Hamburger Paper
Gift Wrap Paper
Machine Running Video
Frequently Asked Questions
What is a stack flexo printing machine?
A stack flexo printing machine is a flexographic printing press where the printing units are arranged vertically. Each color unit is stacked above another, making the machine compact and flexible for printing on various substrates.
What materials can the ZBR120A print?
The machine can process LDPE, LLDPE, HDPE, BOPP, CPP, PET and nylon films as well as paper and non-woven materials.
What is the maximum speed of the machine?
The ZBR120A stack flexo printing press has a maximum mechanical speed of 120 m/min and a printing speed of up to 100 m/min.
What products are typically printed using stack flexo machines?
Typical products include plastic shopping bags, bread bags, food packaging films, non-woven bags, courier bags and wrapping paper.
What optional systems can be added to the machine?
Optional systems include corona treatment for improving surface tension and automatic registration systems for improving printing accuracy.
