Technical Specifications
| Parameter | ZBR300-CI8-600 | ZBR300-CI8-800 | ZBR300-CI8-1000 | ZBR300-CI8-1200 |
|---|---|---|---|---|
| Max. Web Width | 700 mm | 900 mm | 1100 mm | 1300 mm |
| Max. Printing Width | 600 mm | 800 mm | 1000 mm | 1200 mm |
| Max. Machine Speed | 300 m/min | |||
| Max. Printing Speed | 280 m/min | |||
| Max. Unwind / Rewind Diameter | Φ800 mm / Φ1200 mm | |||
| Drive Type | Central Drum with Gear Drive | |||
| Ink Type | Water Based Ink or Solvent Ink | |||
| Printing Length (Repeat) | 350 – 900 mm | |||
| Substrate Range | LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Breathable Film | |||
| Electrical Supply | 380V · 50Hz · 3PH | |||
High-Speed CI Flexo Printing Machine for Plastic Film Packaging

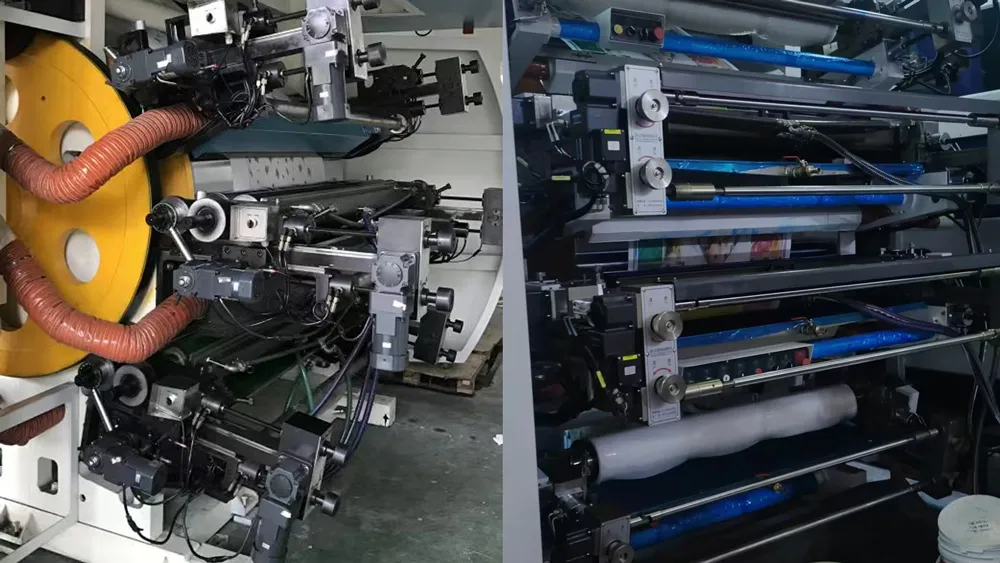

The ZBR300 CI flexographic printing machine is a high-performance roll-to-roll printing press designed for plastic film and flexible packaging production. With its stable central impression drum structure and reliable color registration system, the machine provides consistent printing quality even during high-speed operation.
With a maximum machine speed of 300 m/min and printing speed up to 280 m/min, the ZBR300 series is suitable for packaging manufacturers who require efficient large-scale printing of plastic bags, food packaging bags and shopping bags.
Stable Central Impression Printing Structure

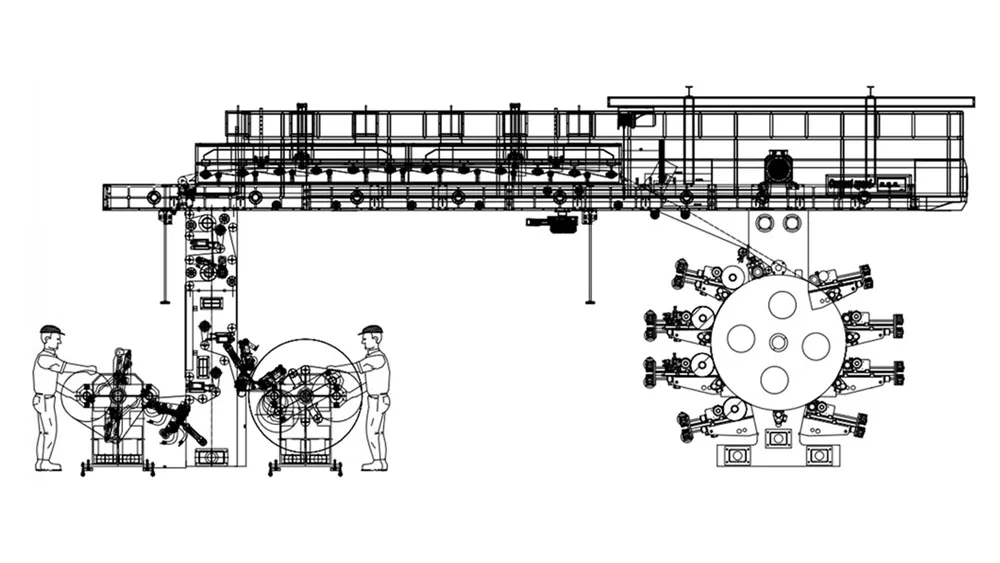

The CI drum structure keeps the printing substrate firmly attached to the central impression cylinder during printing. This design ensures stable web tension and improves color registration accuracy when printing thin plastic films.
Efficient Production for Packaging Converters
The machine supports 4 to 10 color printing configurations, allowing packaging manufacturers to handle different printing requirements including brand packaging, retail packaging and industrial packaging production.
Reliable Web Handling and Tension Control
The ZBR300 flexographic printing press is equipped with double station unwinding and rewinding systems, automatic tension control, EPC web guiding and centralized drying systems. These functions improve production stability and reduce waste during long production runs.
Suitable for Multiple Flexible Packaging Materials
The machine can process LDPE, LLDPE, HDPE, BOPP, CPP, PET and nylon films, making it suitable for printing plastic bags, food packaging films, courier bags, e-commerce packaging and industrial packaging materials.
Applications in Flexible Packaging Printing
The ZBR300 CI flexographic printing machine is designed for high-speed printing of flexible packaging materials used in plastic bags, food bags and shopping bags production. It is suitable for roll-to-roll printing processes that require stable color registration, consistent printing quality and efficient large-scale production.
-
Food Packaging Films
Suitable for printing snack packaging, frozen food packaging and flexible food packaging films used in modern food packaging production. -
Beverage Labels and Flexible Film Packaging
Used for printing beverage labels and flexible packaging films that require clear graphics and stable color consistency. -
Paper Food Containers and Paper Packaging
Applicable for coated paper materials used for paper cups, paper bowls, paper plates and food packaging boxes. -
Medical, Hygiene and Daily Use Packaging
Suitable for printing medical packaging materials, diaper wet bags and hygiene product packaging. -
E-commerce, Courier and Industrial Packaging
Designed for courier bags, express packaging films, e-commerce mailing bags and industrial transportation packaging materials. -
Food Packaging & Cosmetics Packaging & Detergent Packaging
Designed for high-quality printing on flexible films used for food pouches, cosmetic sachets, and household detergent bags, ensuring vibrant colors and excellent resistance to chemical contents.
Food Packaging & Cosmetics Packaging & Detergent Packaging
Beverage Labels
Paper Food Containers
Medical Packaging
Diaper Wet Bags
Clothing Express Packaging
E-commerce Packaging
Industrial Transportation
Non-woven Bag
Machine Running Video
Frequently Asked Questions
What is a CI flexo printing machine?
A CI (Central Impression) flexo printing machine uses a large central drum to hold the substrate during printing. This design improves registration stability and printing accuracy when printing thin flexible packaging materials.
What materials can the ZBR300 flexo printing machine print?
The machine supports LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon and breathable films. It is widely used for plastic bags, food bags, shopping bags and other flexible packaging materials.
What is the maximum speed of the ZBR300 flexo press?
The ZBR300 series has a maximum machine speed of 300 m/min and a maximum printing speed of 280 m/min, making it suitable for medium to high-speed packaging production lines.
How many printing colors are available?
The machine can be configured with 4, 6, 8 or 10 printing units depending on customer production requirements.
What industries use CI flexographic printing machines?
CI flexo printing machines are widely used in food packaging, beverage labels, e-commerce packaging, courier bags, medical packaging and industrial packaging production.
