Technical Specifications
| Parameter | ZBR500-CI8-600 | ZBR500-CI8-800 | ZBR500-CI8-1000 | ZBR500-CI8-1200 |
|---|---|---|---|---|
| Max Web Width | 650 mm | 850 mm | 1050 mm | 1250 mm |
| Max Printing Width | 600 mm | 800 mm | 1000 mm | 1200 mm |
| Max Machine Speed | 500 m/min | |||
| Max Printing Speed | 450 m/min | |||
| Max Unwind / Rewind Diameter | Φ800 mm / Φ1200 mm | |||
| Drive Type | Gearless Full Servo Drive | |||
| Printing Length (Repeat) | 400 – 800 mm | |||
| Ink Type | Water Based Ink or Solvent Ink | |||
| Substrate Range | LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Breathable Film | |||
| Electrical Supply | 380V, 50Hz, 3 Phase (Customizable) | |||
Gearless CI Flexo Printing Machine for High Speed Flexible Packaging
The ZBR500 gearless CI flexographic printing machine is designed for high-speed and high-precision printing of flexible packaging materials. The machine adopts a full servo drive system that eliminates mechanical gears and provides precise synchronization between printing units.
With a maximum machine speed of 500 m/min and printing speeds up to 450 m/min, the ZBR500 flexo printing press is suitable for large-scale flexible packaging production requiring high efficiency and stable printing quality.

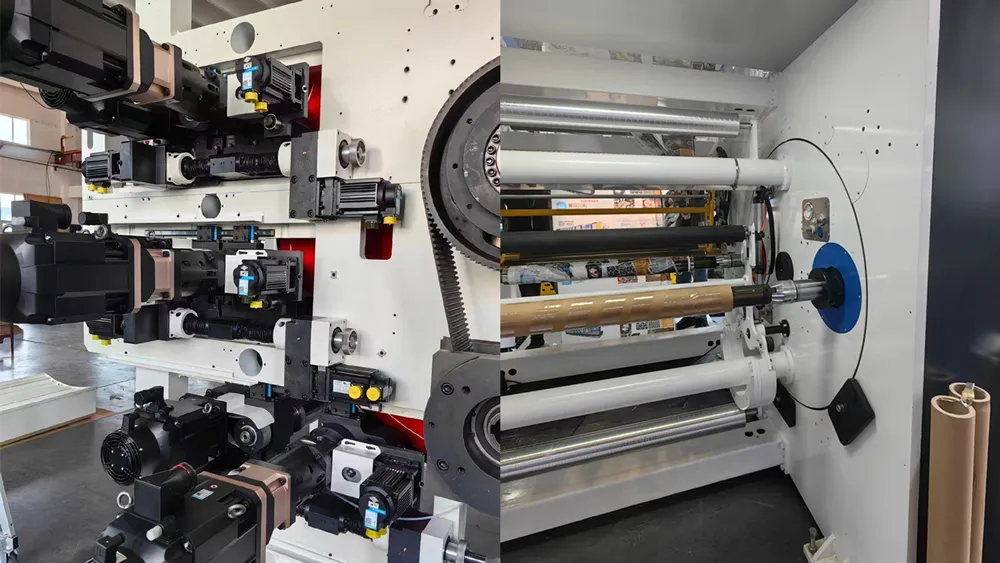

Full Servo Gearless Drive System
Each printing unit is driven by independent servo motors, allowing precise control of printing pressure and registration. This gearless design reduces mechanical wear and improves printing stability.
High Speed Industrial Printing
The machine supports high-speed printing for modern packaging production lines while maintaining precise color registration and consistent print quality.
Flexible Printing for Multiple Materials
The ZBR500 flexo printing machine is suitable for printing a wide range of flexible substrates including LDPE, BOPP, CPP, PET, nylon and breathable films used in flexible packaging industries.
Efficient Production for Packaging Manufacturers
With double station unwinding and rewinding, centralized drying systems and automatic registration control, the machine provides efficient and reliable production for packaging manufacturers.
Applications in Flexible Packaging Printing
The ZBR500 gearless CI flexographic printing machine is widely used for high-speed printing of flexible packaging materials. It is suitable for a broad range of packaging applications that require stable color registration, consistent print quality, and efficient roll-to-roll production.
-
Food Packaging Films
Suitable for printing snack packaging, frozen food packaging, and other flexible food-grade packaging films. -
Beverage Labels and Wraparound Packaging
Used for printing beverage labels and flexible packaging materials requiring clear graphics and stable color consistency. -
Paper Food Containers and Paper Packaging
Applicable for printing coated paper materials used for paper cups, paper bowls, paper plates, and food boxes. -
Medical, Hygiene and Daily Use Packaging
Suitable for medical packaging, diaper wet bags, and hygiene product packaging that require reliable print quality. -
E-commerce, Courier and Industrial Packaging
Designed for mailing bags, express packaging, e-commerce packaging films, and industrial transportation packaging materials. -
Food Packaging & Cosmetics Packaging & Detergent Packaging
Designed for high-quality printing on flexible films used for food pouches, cosmetic sachets, and household detergent bags, ensuring vibrant colors and excellent resistance to chemical contents.
Food Packaging & Cosmetics Packaging & Detergent Packaging
Beverage Labels
Paper Food Containers
Medical Packaging
Diaper Wet Bags
Clothing Express Packaging
E-commerce Packaging
Industrial Transportation
Machine Running Video
Frequently Asked Questions
What is a gearless CI flexographic printing machine?
A gearless CI flexographic printing machine uses servo motors to directly drive each printing unit, eliminating mechanical gears and improving printing precision and machine flexibility.
What is the maximum printing speed of the ZBR500?
The maximum machine speed is 500 m/min and the recommended printing speed can reach up to 450 m/min depending on production conditions.
What materials can this machine print?
The machine can print flexible packaging substrates such as LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon and breathable films.
How many printing colors are available?
The machine supports multiple printing deck configurations including 4, 6, 8 and 10 color printing units.
What type of ink can be used?
The machine supports both water-based inks and solvent-based inks depending on printing material and production requirements.
